Datalogic CODiScan Barcode Scanner (HS7600SR)

The Datalogic CODiScan is an ultra-light (44 g) Bluetooth wearable scanner that turns barcode scanning into a hands-free task. Worn on the hand with an adjustable trigger or on a lanyard at the neck, belt or pocket, it reads 1D and 2D codes with a smart aiming system, confirms every read with Datalogic's Green Spot, high-visibility LEDs, beep and vibration, and runs up to 16 hours (12,000 scans) on one charge. Compared with a traditional handheld scanner it saves up to 4 seconds per scan and cuts errors by up to 33%. This version, HS7600SR, is the Standard Range model for everyday 1D and 2D labels at close range and arm's length (up to 110 cm).

Key Features

• Standard range 2D imager – a 1280 × 960 pixel sensor with a wide 42° × 32° field of view reads 1D and 2D barcodes quickly at close range and arm's length, e.g. EAN/UPC 13 mil from 4.5 to 74 cm – ideal for picking from shelves and totes.
• Only 44 g, truly hands-free – the minimal module sits on the back of the hand; workers no longer pick up and put down a scanner, saving up to 4 seconds per scan and up to 1.5 tonnes of lifted weight per shift.
• Flexible mounting – adjustable one-size hand trigger for the right or left hand (bare hand or over work gloves, 5 million trigger hits, washable fabric with removable electronics) or an extensible lanyard for neck, belt or pocket; the multifunction key shows battery and connection status.
• Smart aiming and complete feedback – the aiming system frames the right barcode before reading; Datalogic Green Spot on the code, two lateral LED blades and a rear LED, an adjustable 85 dBA beeper and vibration for quiet areas confirm every read – up to 33% fewer errors.

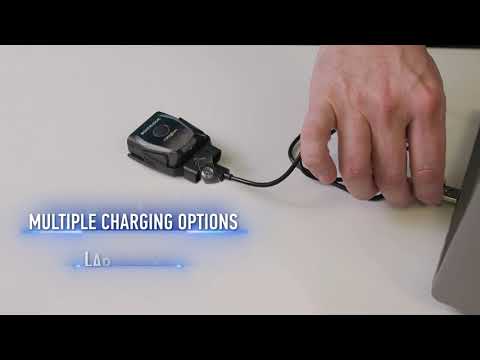

• Two shifts on one charge – up to 16 hours or 12,000 scans with a 640 mAh battery that recharges in about 2 hours; choose a 1-slot USB cap charger, modular 2-slot chargers (up to 6 slots on one power supply) or a 12-slot station.

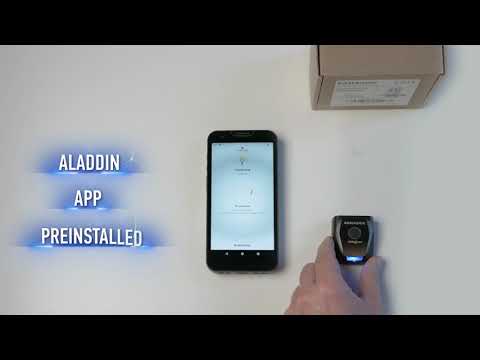

• Bluetooth 5.2 and Datalogic Gateway – BLE/Classic connection up to 100 m; pair with Android devices via the Aladdin app, or connect up to 7 scanners to a PC (USB) or the cloud (Wi-Fi, MQTT/WebSocket) via Gateway Connect.
• Rugged for the warehouse – IP54, 1.8 m drops onto concrete, 1,000 tumbles, IK06 impact resistance and operation from −20 °C to 50 °C.
• Easy to configure and service – Aladdin web page, stand-alone software and mobile app for settings and firmware; Datalogic EASEOFCARE 3- or 5-year service plans also cover the battery.

Ideal Applications

• Warehouse picking, packing, sorting and put-away – hands-free
• Shipping and receiving, cross-docking and parcel handling
• Retail click & collect, online order fulfilment and back-of-store stock management
• Manufacturing – parts and assembly traceability, finished goods verification
• Inventory management and cycle counts

All CODiScan Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Compare CODiScan with other wireless and wearable models in our Cordless / Wireless Barcode Scanners collection, or contact our team for advice on a complete hands-free setup – triggers, chargers, gateway, service plans and volume pricing.
