The Newland FR50 Pearl is a premium corded presentation scanner that is as much a design piece as a scanning tool: a glossy spherical scanner that clamps onto an elegant stand via a magnetic socket – made to be the jewel of boutique, hospitality and other customer-facing counters. Inside, a megapixel 1280 × 800 sensor reads all major 1D and 2D barcodes on paper and on phone screens, and an IR sensor together with a light sensor wakes the scanner automatically the moment a code is presented. Safe green LED aiming, automatic exposure control and a 5-year (60-month) Newland warranty complete the package. This version, NLS-FR5080-B-20, is the black USB kit: it is supplied with a 2.8 m USB cable, the desktop stand and a mounting plate – ready to plug in and scan, no power supply needed.
📦 What's in the box – NLS-FR5080-B-20
- ✅ Newland FR50 Pearl presentation scanner – black, spherical scanner head with magnetic socket; USB (USB HID and USB CDC)
- ✅ USB cable – direct, straight, approx. 2.8 m – connects the scanner to a USB port on your PC, POS system or kiosk; the scanner is powered via USB

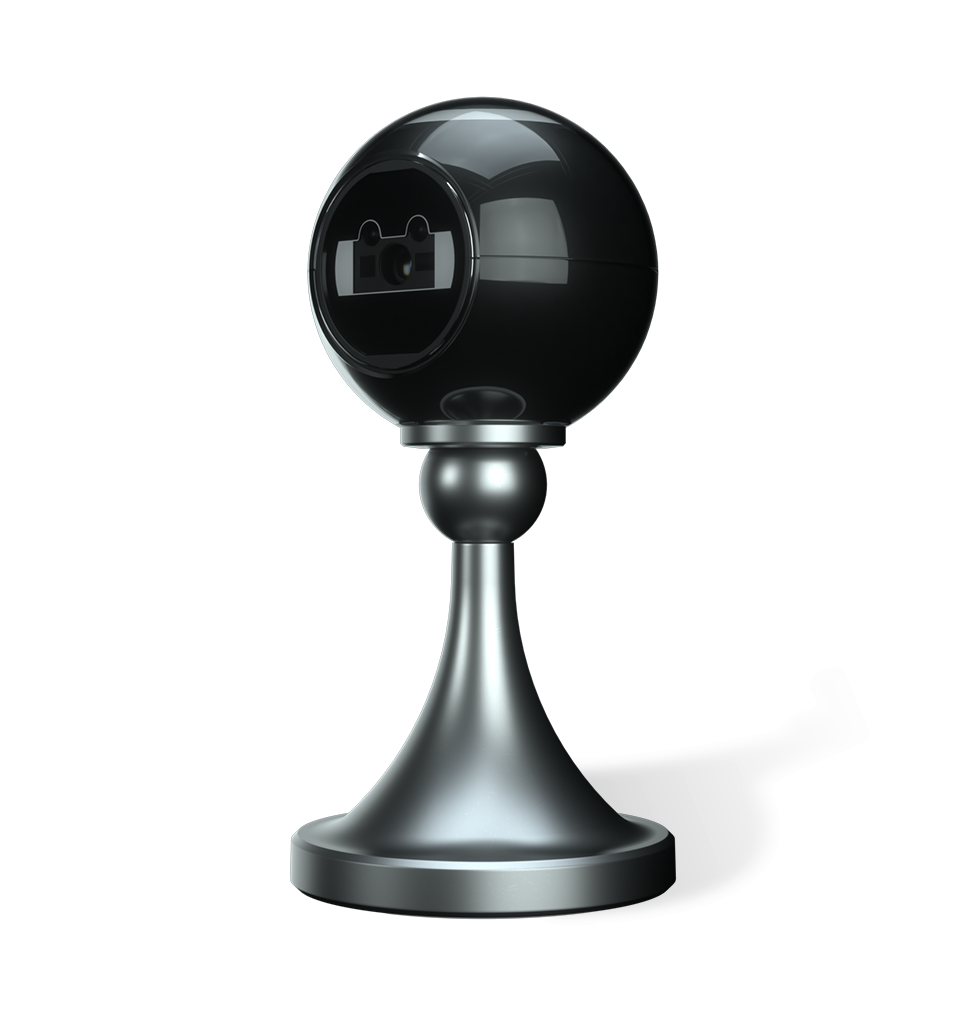

- ✅ Desktop stand – 75 × 75 × 153.5 mm; the scanner clamps magnetically onto the stand for a classic presentation set-up on the counter
- ✅ Mounting plate – for an alternative, lower-profile installation – the scanner's magnetic socket clamps onto the plate, e.g. on a counter or another surface
- ❌ Power supply – not needed – the scanner is powered via USB
💡 Mount it your way: place the FR50 Pearl on the supplied stand for a classic presentation scanner at the counter, or use the mounting plate for a more discreet installation – the magnetic socket clamps easily and firmly, and its simple connection point makes cleaning effortless.
Key Features
- Megapixel 2D scanner – the 1280 × 800 CMOS sensor reads all major 1D and 2D codes (QR Code, Data Matrix, Aztec, PDF417, MaxiCode and more); the higher resolution reads even small codes from a longer distance, and inverse codes, rectangular 2D codes and poorly printed codes are no problem.
- Sophisticated design – a spherical scanner made of high-quality materials on an elegant stand blends into its environment or acts as a true eye-catcher; particularly suited to non-food retail and boutique checkout counters.
- IR and light sensors – the light sensor works best in well-lit conditions, detecting the change in light as a code is presented; the shorter-range IR sensor wakes the scanner even in poorly lit environments. Sense mode and continuous mode are available.
- Paper and phone screens – automatic exposure control (AEC) adapts the illumination time to the glare reflected from the code, so switching from a low-contrast code on paper to a highly reflective phone screen is no problem: mobile tickets, e-coupons, loyalty cards and payment QR codes.

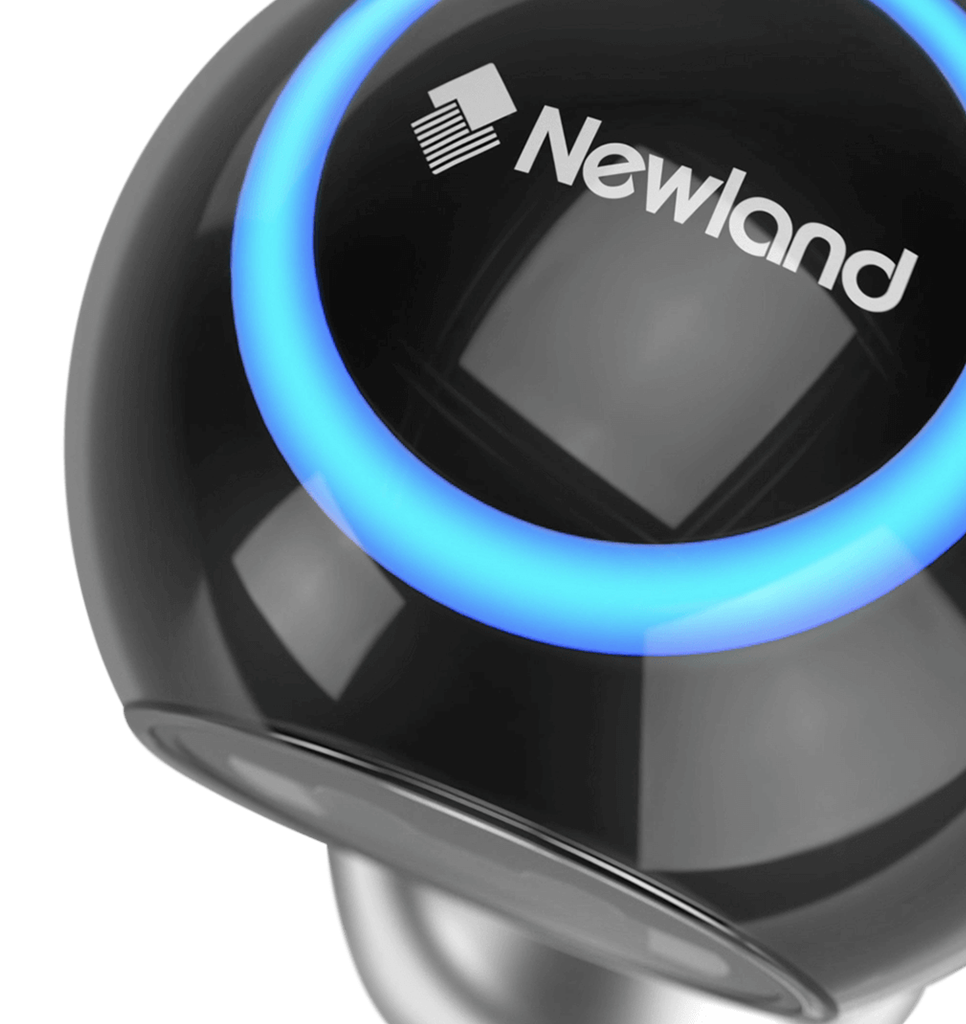

- Magnetic socket – mount anywhere – the scanner clamps easily and firmly onto the stand or the mounting plate; the simple connection point also makes cleaning with the recommended cleaning products effortless.
- Safe LED aiming – a green LED aimer helps position the code without the health risks associated with laser-class aiming – in staff-attended and self-service applications alike.
- Plug and play – USB HID (keyboard) and USB CDC (virtual COM port), powered via USB, 2.8 m cable; configured with the EasySet tool; IP42, ±14 kV ESD protection and a 5-year warranty.
Ideal Applications
- Boutiques, fashion and non-food stores – a stylish checkout where looks matter
- Hospitality – hotel receptions, restaurants and cafés: vouchers, booking codes and order codes
- Entertainment – cinemas, museums and events: tickets on paper or on phone screens
- Healthcare – pharmacy counters and reception desks: prescriptions, medicine packs and appointment codes
- Customer service points – loyalty cards, mobile coupons and payment QR codes
All FR50 Pearl Versions
The FR50 Pearl is stocked in black as the USB kit below. A white version is available for projects only – contact our team for details.
| Part Number | Color | Cable | Stand & Mounting Plate | |
|---|---|---|---|---|
| NLS-FR5080-B-20 (this version) | Black | ✅ USB, 2.8 m | ✅ Included | Viewing |
Technical Specifications
| Part Number | NLS-FR5080-B-20 |
|---|---|
| Model | Newland FR50 Pearl (FR5080) |
| Scanner Type | Corded presentation (hands-free) 2D area imager – spherical scanner with magnetic socket; reads 1D and 2D barcodes on paper and phone screens |
| Image Sensor | 1280 × 800 CMOS (megapixel) |
| Illumination | Red LED illumination; green LED aiming; automatic exposure control (AEC) |
| Scan Modes | Sense mode (IR sensor and light sensor), continuous mode |
| Depth of Field | EAN-13 13 mil: 55–360 mm; Code 39 5 mil: 80–170 mm; PDF417 6.67 mil: 55–160 mm; Data Matrix 10 mil: 50–170 mm; QR Code 15 mil: 40–210 mm |
| Field of View | 51° horizontal, 32° vertical |
| Scan Angles | Roll 360°, pitch ±55°, skew ±55° |
| Minimum Print Contrast | 30% |
| 1D Symbologies | All major 1D symbologies, incl. EAN-13, EAN-8, UPC-A, UPC-E, Code 128, UCC/EAN-128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5 (ITF), ITF-14, ITF-6, Standard 2 of 5, Matrix 2 of 5, COOP 2 of 5, Industrial 2 of 5, GS1 DataBar (RSS), Plessey, MSI-Plessey, Code 49, Code 16K |
| 2D Symbologies | All major 2D symbologies, incl. QR Code, Micro QR, Data Matrix, Aztec, PDF417, Micro PDF417, MaxiCode, Code One, Chinese Sensible Code (CSC), GM Code |
| Host Interface | USB (USB HID keyboard, USB CDC virtual COM) |
| User Indicators | Beeper, LED indicator |
| Mounting | Magnetic socket – desktop stand or mounting plate (both included) |
| Color | Black |
| Dimensions (W × D × H) | Scanner: 68 × 61.8 × 68.2 mm; stand: 75 × 75 × 153.5 mm |
| Weight | Scanner: 202 g; stand: 324 g |
| Power | 5 VDC ± 5% via USB; 306 mA operating (typical), 311.5 mA (max.), 173.9 mA standby; 1530 mW (typical) |
| Environmental Sealing | IP42 |
| Electrostatic Discharge | ±14 kV (air discharge), ±8 kV (direct discharge) |
| Operating Temperature | −20 °C to 60 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 5–95% RH, non-condensing |
| Software | Newland EasySet configuration tool |
| Certifications | FCC Part 15 Class B, CE EMC Class B, RoHS, IEC 62471 |
| Warranty | 60 months (5 years) |
| In the Box | FR50 Pearl presentation scanner (black, magnetic socket), USB cable (direct, straight, approx. 2.8 m), desktop stand (75 × 75 × 153.5 mm), mounting plate – no power supply needed (USB-powered) |
The FR50 Pearl is the design-led choice for counters where looks matter as much as performance. Looking for a different form factor, an RS-232 interface or a lower price point? Compare other hands-free models in our Presentation Barcode Scanners collection or contact our team for volume pricing, the white project version and integration advice.
