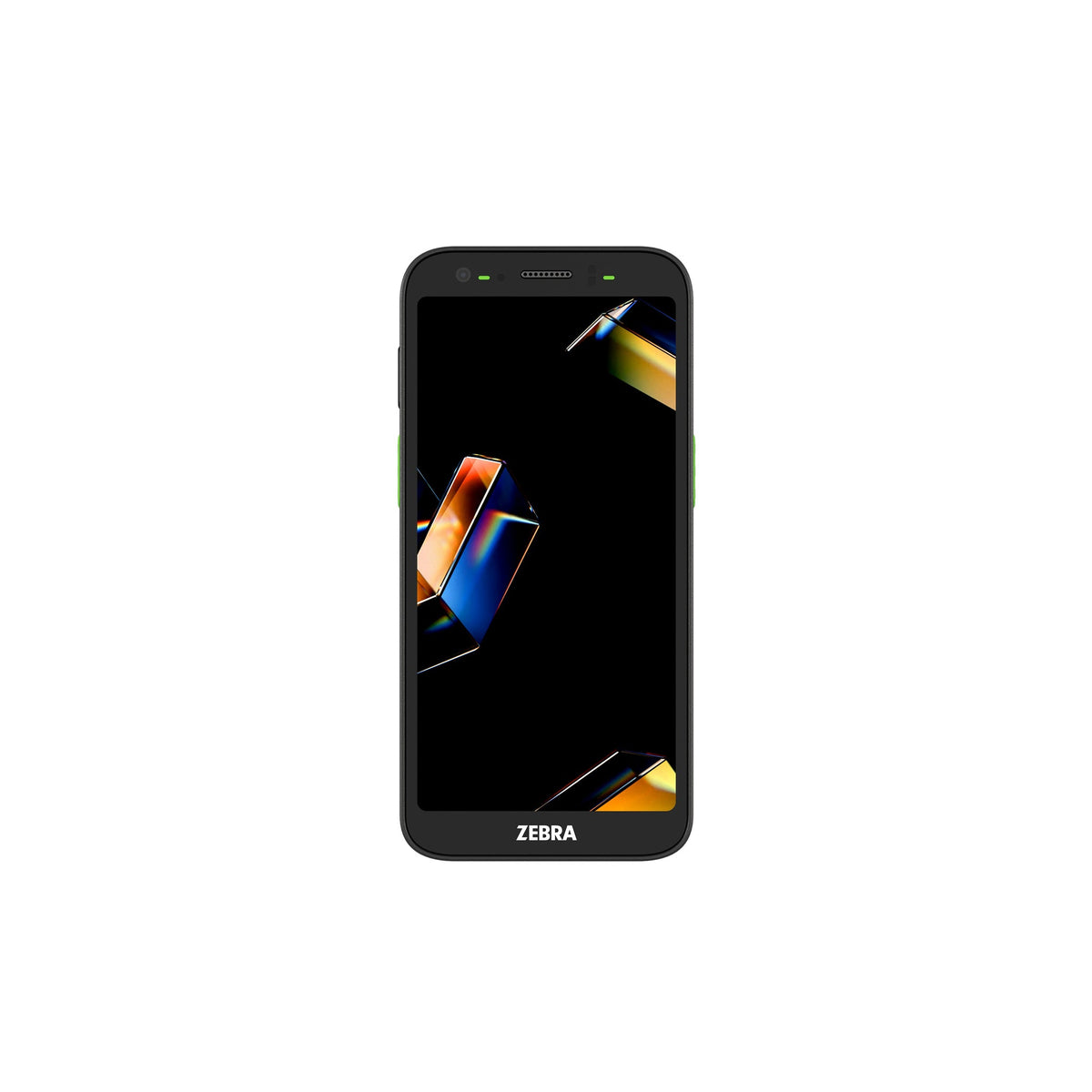

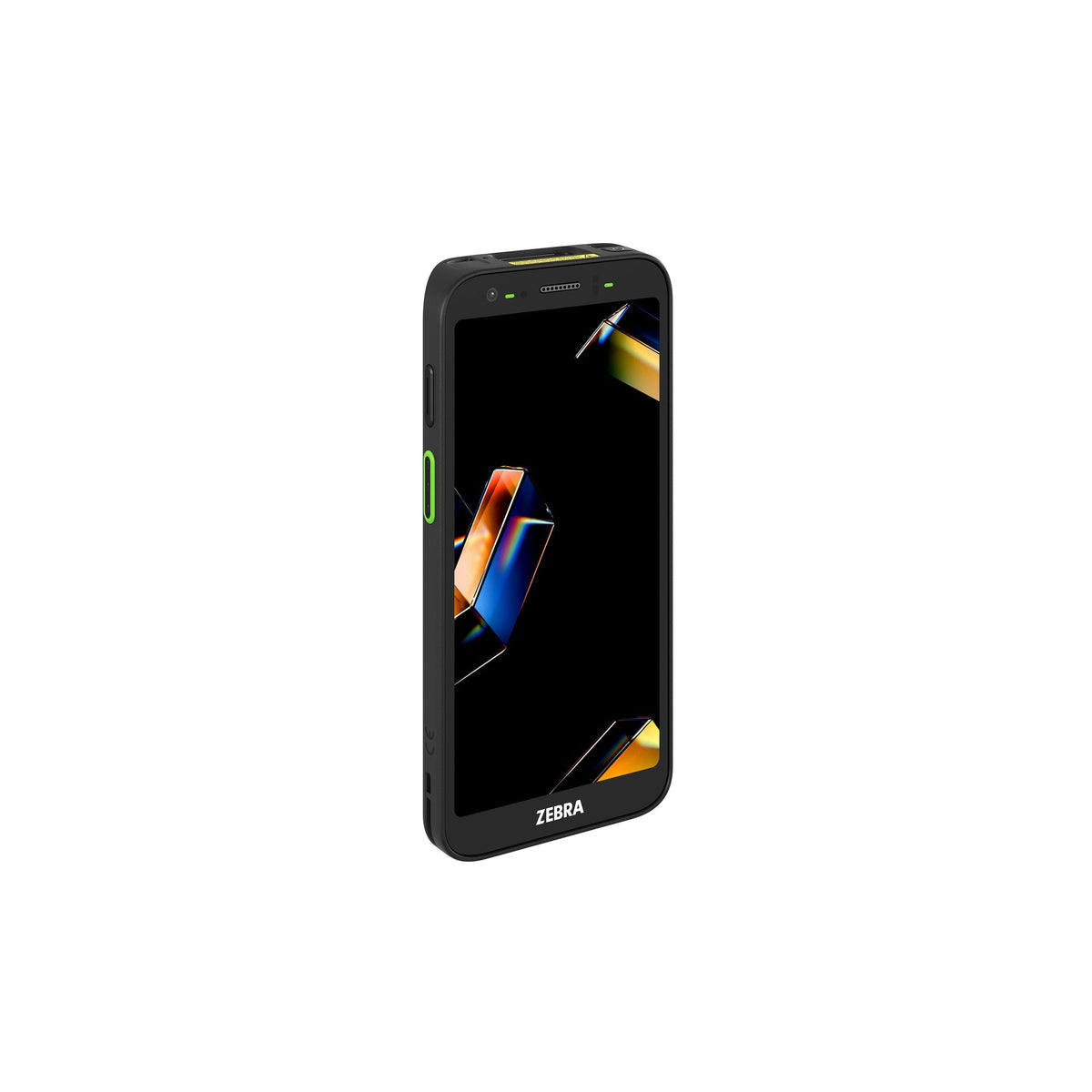

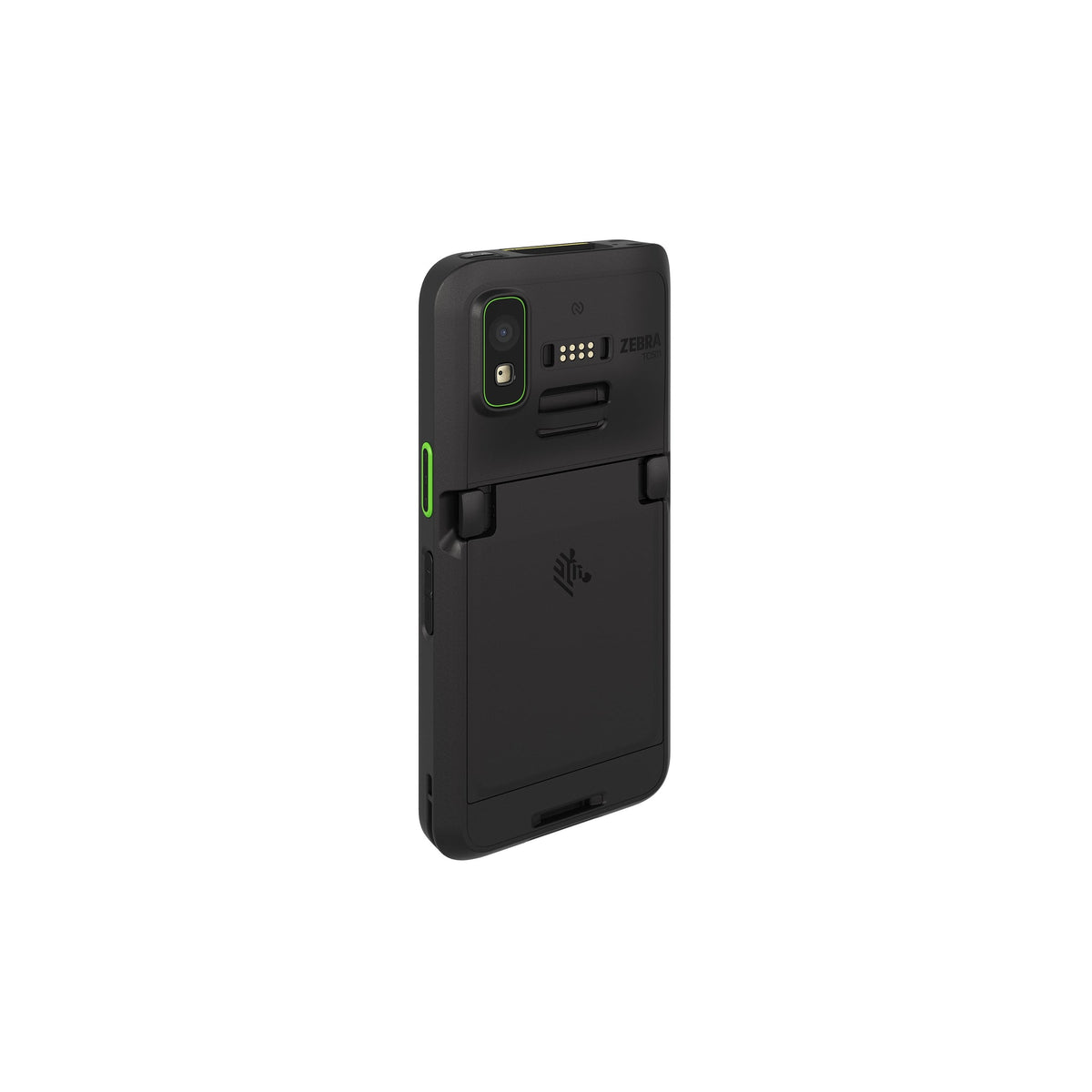

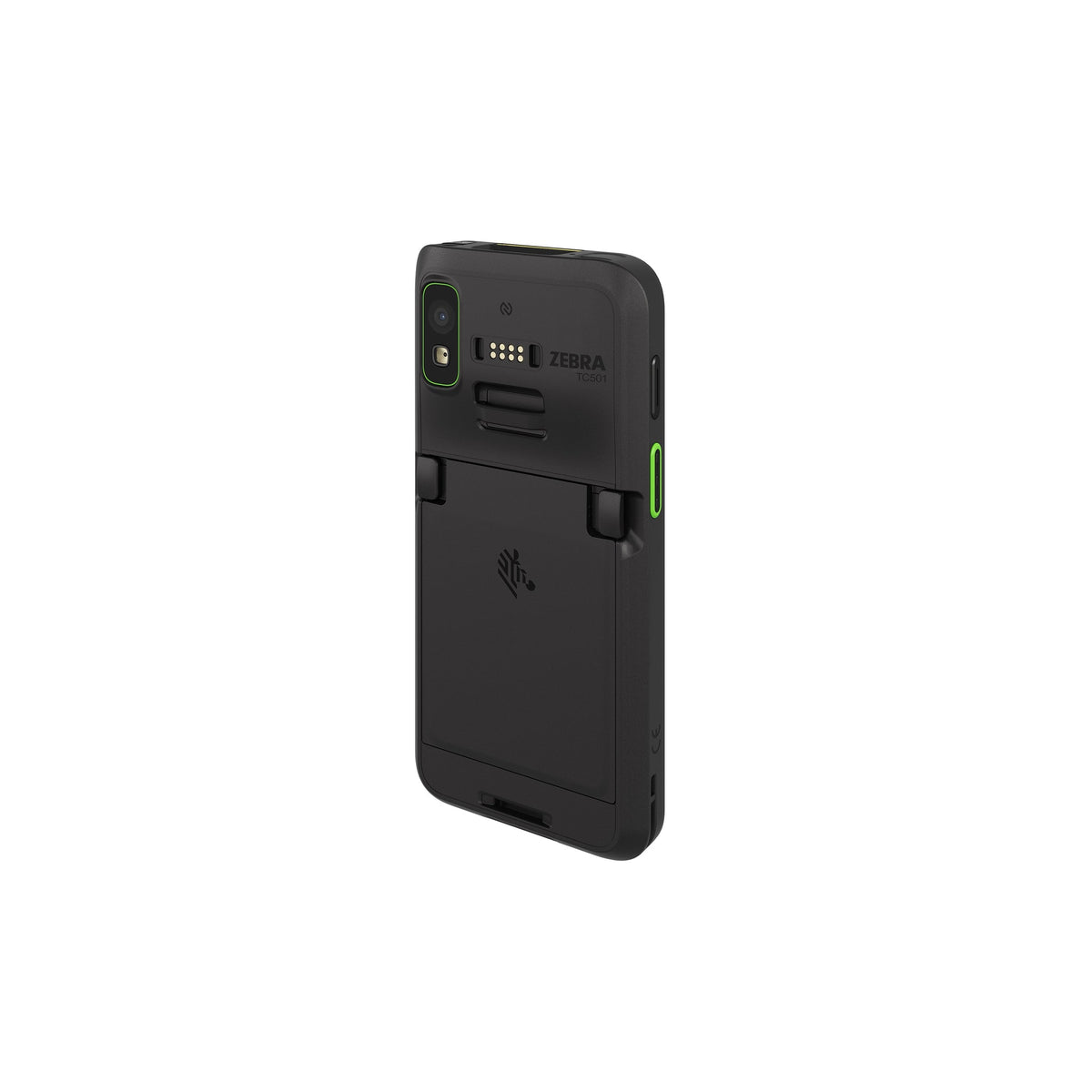

Zebra TC501 Terminal (TC5010-041B2B0001-A6)

The Zebra TC501 is Zebra's new-generation rugged Android mobile computer for the AI-powered frontline – built for retail, warehousing, field service, postal and courier work. A 6" Full HD+ AMOLED display with 1500 nits, the Qualcomm Dragonwing Q-6690 AI platform, Wi-Fi 7, Bluetooth 6.0, NFC, a 50 MP camera and integrated UHF RFID come together in an IP68/IP65 sealed device with a hot-swap battery that survives 2.4 m drops. This version, TC5010-041B2B0001-A6, is the Wi-Fi 7-only model. Configuration: 12 GB RAM / 256 GB Flash with a 2.9 GHz processor, the SR560 scan engine with an improved aimer for fast scanning on the move, a 13 MP ultra-wide rear camera, a 5000 mAh hot-swap battery.

Key Features

• Built for on-device AI – Qualcomm Dragonwing Q-6690 octa-core platform with a dedicated AI engine (up to 3× the performance of legacy TC5 devices), up to 12 GB RAM / 256 GB Flash and microSD up to 2 TB.
• 6" AMOLED display, 1500 nits – Full HD+ (2160 × 1080), adaptive refresh rate, readable in direct sunlight and at extreme angles; Corning Gorilla Glass Victus 2; works with gloves, wet fingers or a passive stylus.
• Next-generation scanning – dual scan buttons and the SR560 scan engine; on-device OCR for licence plates, VINs and documents.
• Wi-Fi 7-only model – the cost-effective choice for stores, warehouses and sites with Wi-Fi coverage; choose a 5G version for mobile data on the road.
• Built-in UHF RFID – short-range RFID in every model reads over 200 tags per second up to 2 m away, without a separate sled.
• Fastest wireless – tri-band Wi-Fi 7 with MLO, Bluetooth 6.0 and NFC with contactless payment support (Apple VAS, Google Smart Tap); chipset BLE beacon to locate lost devices without a special battery.
• The most rugged TC5 ever – IP68/IP65, 2.4 m drops to concrete (2.7 m with the rugged boot), up to 4× more tumbles than other TC5 devices and thermal-shock tested.
• Power for every shift – PowerPrecision+ hot-swap batteries (5000 mAh standard, 7240 mAh extended, Qi wireless-charging option); 0–70% in about 45 minutes with fast charging.
• 50 MP + ultra-wide camera – 50 MP autofocus rear camera plus a 13 MP ultra-wide rear camera for vision-based applications and an 8 MP front camera.
• Secure and manageable – Secure Element and Android StrongBox, LifeGuard security updates, Zebra DNA tools for staging, device management and DataWedge; ready for PTT and Workstation Connect.

Ideal Applications

• Retail: price and stock checks, item location, click & collect, mPOS and line busting
• RFID inventory counts and item search without an extra reader
• Warehouse and back of store: receiving, replenishment and picking
• Postal, courier and last-mile delivery (proof of delivery, payment on delivery)
• Field service: asset management, parts inventory and invoicing
• Hospitality and events: ticket scanning, order taking and mobile payment

All TC501 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

The TC501 is the latest generation of Zebra's TC5 series of touch computers. Need mobile data on the road? The Zebra TC501 (TC501G-341B2B1A01-A6) adds 5G and GPS. Need a tougher device for all-day warehouse or field use? Step up to the Zebra TC701. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
