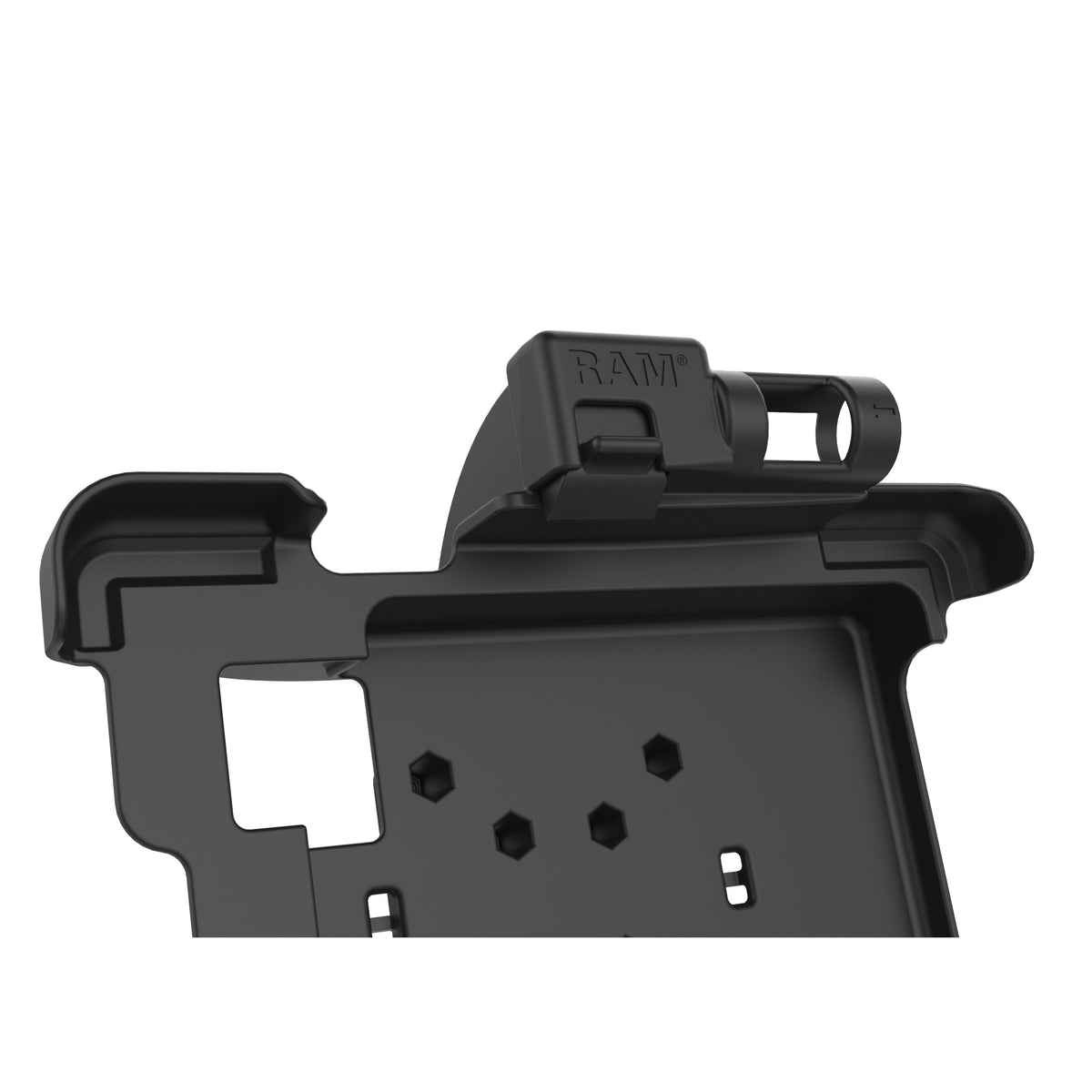

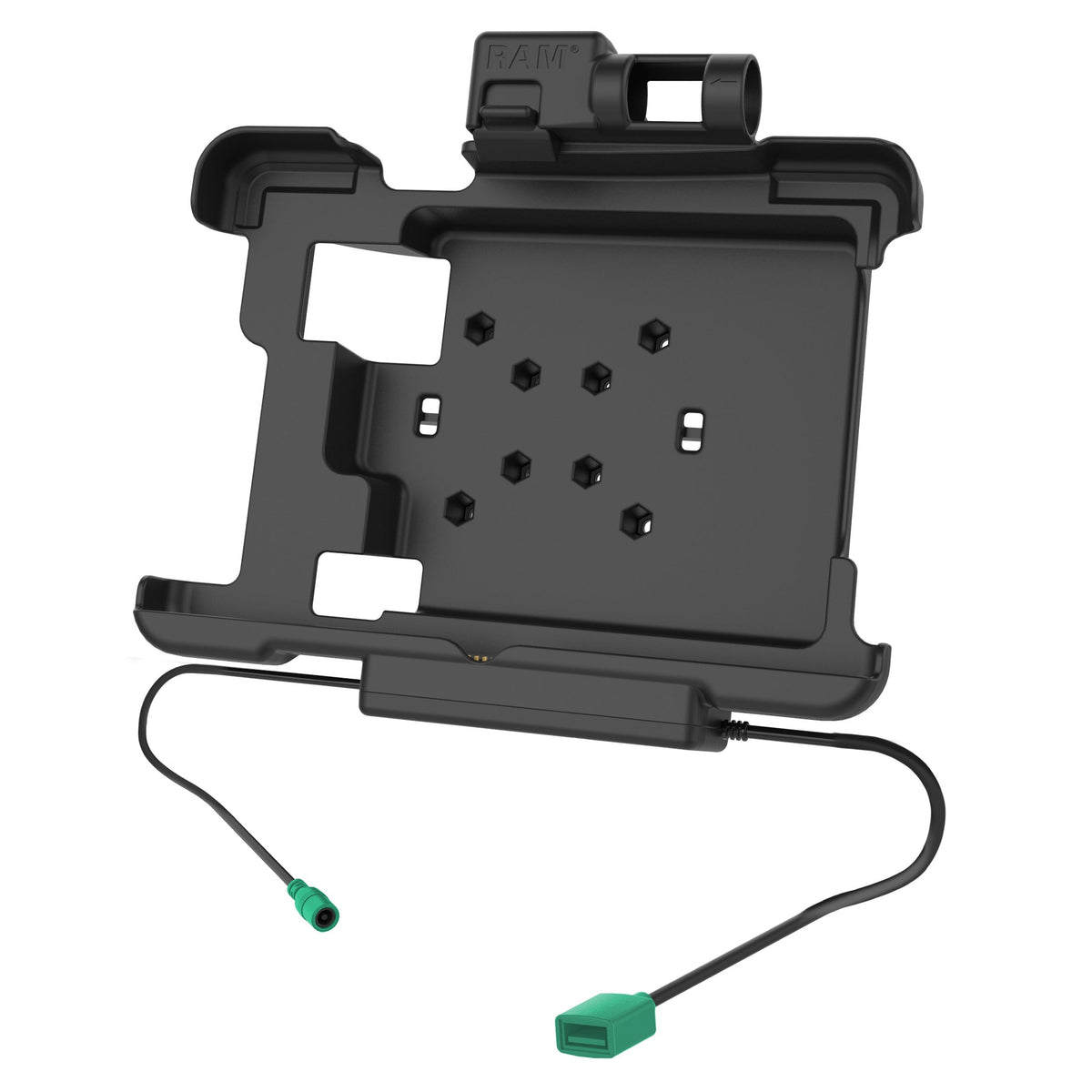

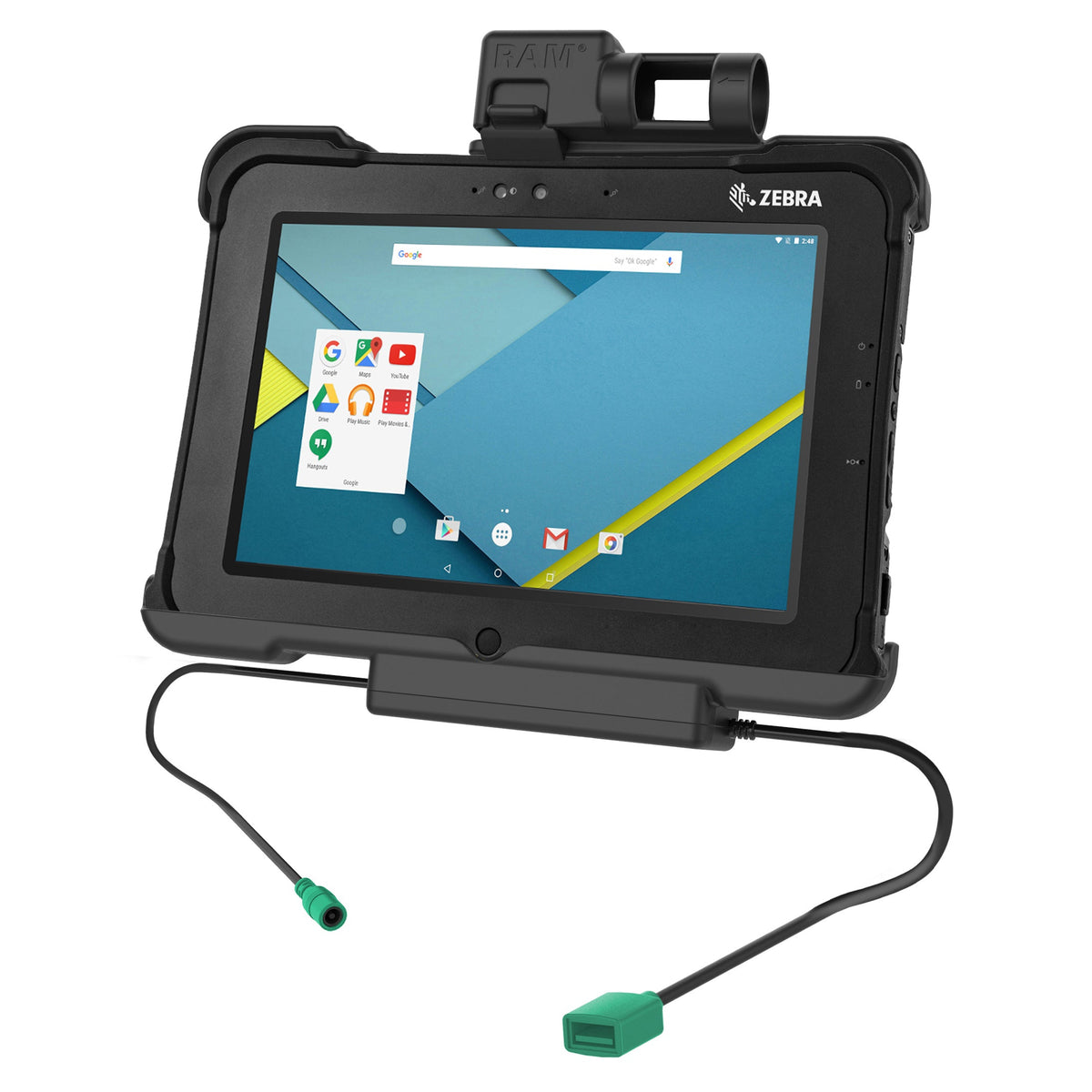

RAM Mounts GDS Power + Data Dock for Zebra XSLATE L10 (RAM-HOL-ZE15PDU)
Regular price
794,00 zł +VAT
RAM Mounts GDS Power + Data Dock (RAM-HOL-ZE15PDU) holds the Zebra XSLATE L10 rugged tablet securely in forklifts, delivery vans and service vehicles or at a fixed workstation. With power connected to its 5.5 mm DC jack, GDS pogo-pin contacts charge the tablet as soon as it is docked, and a built-in USB-A cable connects one peripheral. The rear cutout keeps the tablet's scanner usable and leaves room for add-ons such as the hand strap, kickstand and extended battery bracket.
📦 What's in the box – RAM-HOL-ZE15PDU
- GDS Power + Data Dock – for Zebra XSLATE L10, 5.5 mm DC input, USB-A peripheral cable
- Mounting hardware – machine screws (4× #8-32 x 5/8", 2× #8-32 x 1/2", 4× #10-24 x 5/8") and nyloc nuts (6× #8-32, 4× #10-24)
- Cable ties – 8 small, 2 large
- USB-A cable clamp housing – 1 pc
💡 To get started, you might also consider the C-size RAM mounting set with AMPS round bases or a D-size VESA 75 × 75 ball plate with a matching socket arm, plus a GDS hardwire charger with 5.5 mm DC plug to power the dock.
Key Features
- Form-Fit design – shaped for the XSLATE L10, with cutouts for all buttons and ports and a rear cutout that keeps the scanner and add-ons usable
- GDS charging – pogo-pin contacts charge the tablet while docked; power input via 5.5 mm DC jack
- USB peripheral connection – built-in USB 2.0 Type-A cable, 500 mA output, 12 Mbps

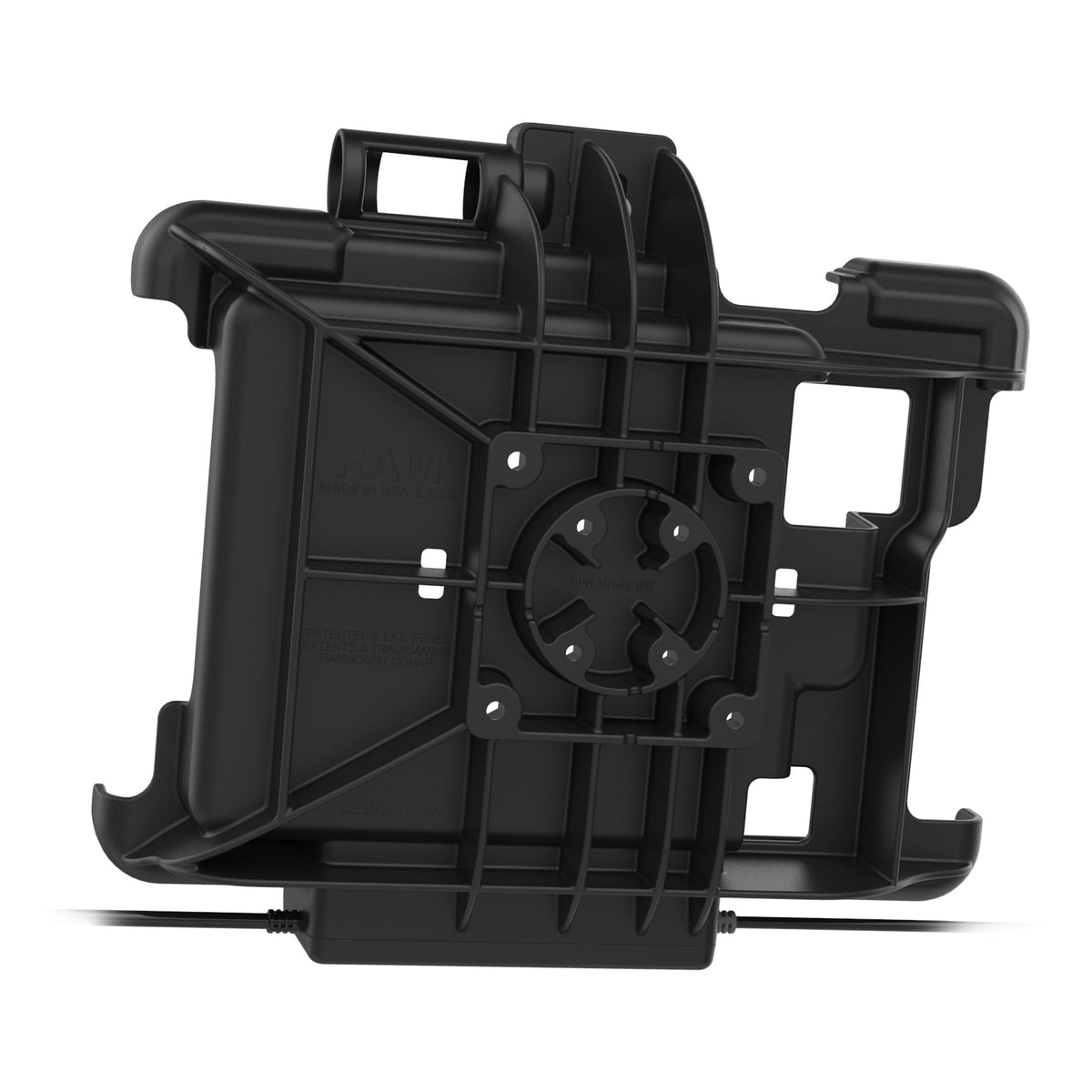

- Flexible mounting – 4-hole AMPS (30 × 38 mm) and VESA 75 × 75 mm patterns for RAM C- and D-size bases with a double socket arm
- Built to last – high-strength composite, backed by a 3-year RAM warranty
Compatibility
- Zebra XSLATE L10
- RAM C- and D-size bases with 4-hole AMPS (30 × 38 mm) or VESA 75 × 75 mm pattern
Technical Specifications
| Part Number | RAM-HOL-ZE15PDU |
|---|---|
| Product Type | GDS powered vehicle dock |
| Compatible Devices | Zebra XSLATE L10 |
| Connection | RAM C- and D-size bases with 4-hole AMPS (30 × 38 mm) or VESA 75 × 75 mm pattern |
| Locking | Non-locking |
| Power / Charging | 5.5 mm DC input jack; charging via GDS pogo-pin contacts; 1× USB 2.0 Type-A peripheral cable (500 mA, 12 Mbps) |
| Material | High-strength composite |
| Weight | 0.88 kg (1.95 lb) |
| Warranty | 3 years (RAM Mounts) |
| In the Box | GDS Power + Data Dock, mounting hardware, cable ties, USB-A cable clamp housing |
Looking for the device itself? Browse our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
