RAM Mounts Tab-Lock Key-Locking Backplate with Hardware, without End Cups (RAM-HOL-TABLBU)
Regular price
417,00 zł +VAT

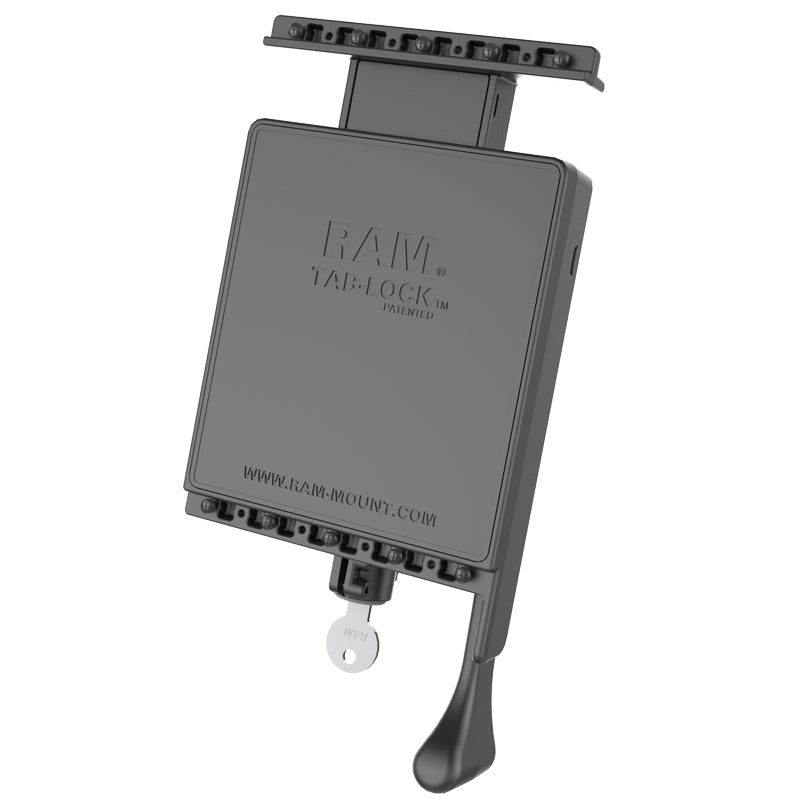

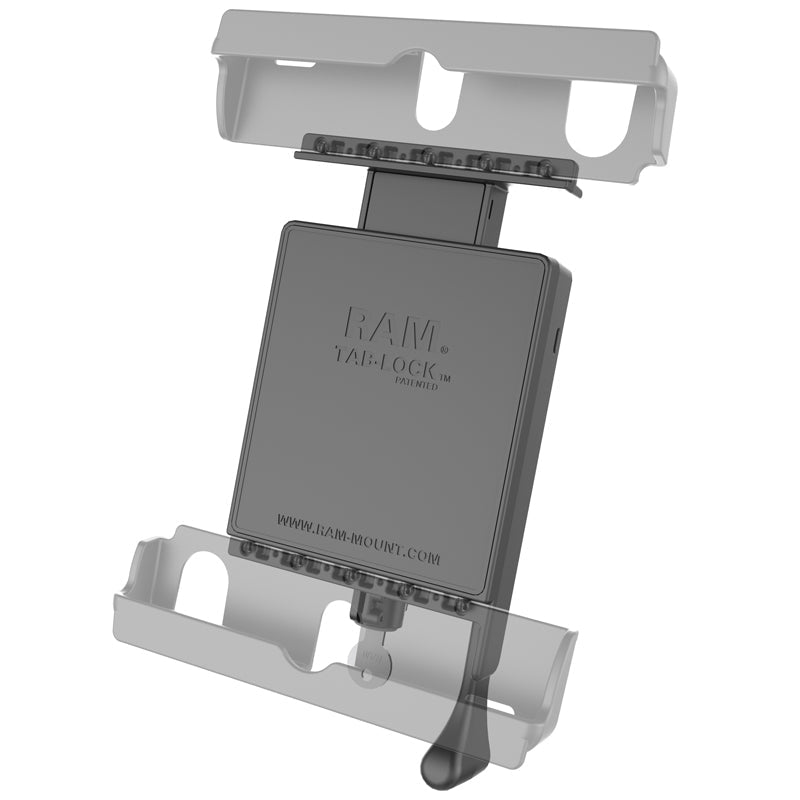

RAM Mounts Tab-Lock Backplate with Hardware (RAM-HOL-TABLBU) is the key-locking, spring-loaded base of the Tab-Lock tablet holder, supplied without end cups. Fit the RAM support cups that match your tablet and the backplate becomes a lockable holder for vehicles and workstations; when you upgrade devices, simply change the cups and keep the backplate. It attaches to RAM bases with the 4-hole AMPS pattern.
📦 What's in the box – RAM-HOL-TABLBU
- Tab-Lock backplate – key-locking, for RAM Tab-Tite / Tab-Lock end cups
- 2 keys – for the key lock

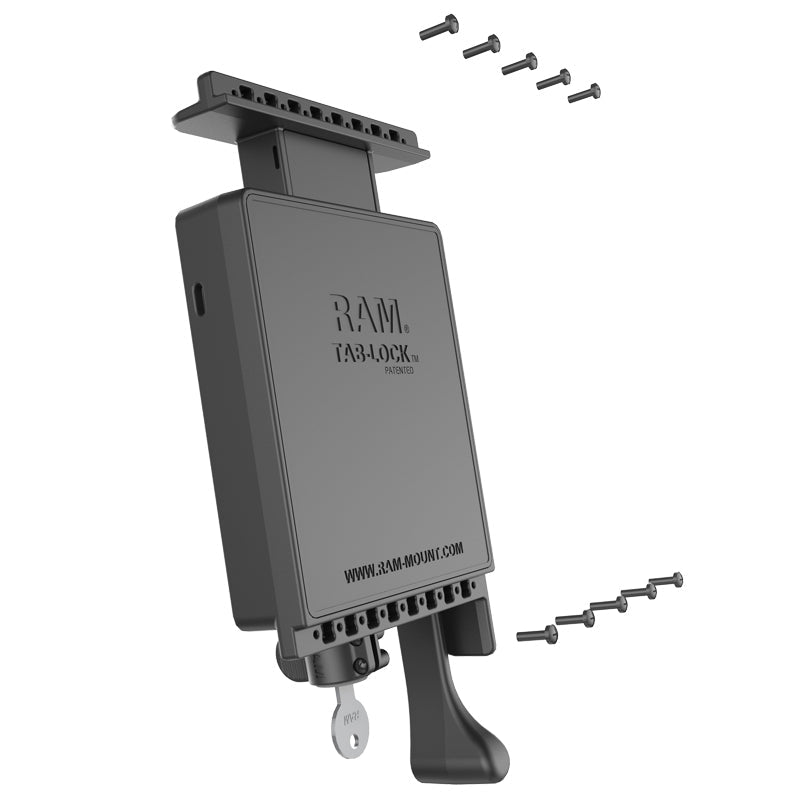

- Mounting hardware – 10 × #4 x 3/8" sheet metal screws, 2 × #8 x 5/8" sheet metal screws, 2 × M4 x 32 mm machine screws, 2 × M4 nyloc nuts
💡 To get started, you might also consider matching end cups such as the Tab-Tite end cups for Apple iPad with case, plus a C-size round plate with ball and double socket arm.
Key Features
- Key lock – turns any Tab-Tite end-cup set into a lockable tablet holder (2 keys included)
- Future-proof – interchangeable cups – when you upgrade the tablet, only the cups need replacing

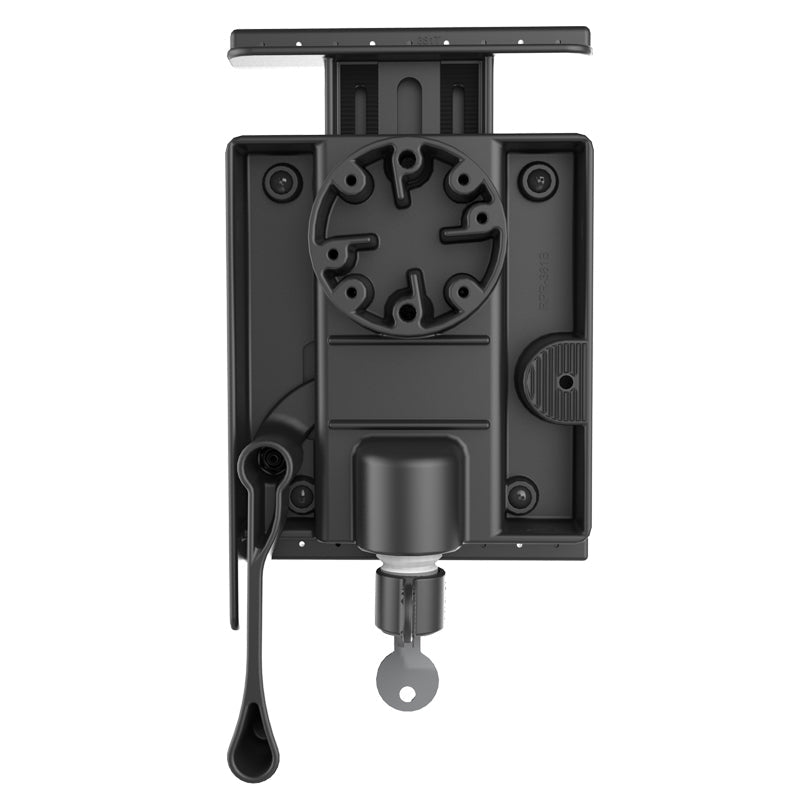

- AMPS mounting – 4-hole AMPS pattern (30 × 38 mm) for RAM round ball bases
- Durable materials – high-strength composite
Compatibility
- RAM Tab-Tite and Tab-Lock end cups (e.g. RAM-HOL-TAB17-CUPSU)
- RAM round ball bases and other mounts with 4-hole AMPS pattern (30 × 38 mm)
Technical Specifications
| Part Number | RAM-HOL-TABLBU |
|---|---|
| Product Type | Tablet holder backplate (Tab-Lock, key-locking), without end cups |
| Connection | 4-hole AMPS (30 × 38 mm) |
| Locking | Key lock (2 keys included) |
| Material | High-strength composite |
| Weight | 0.51 kg (1.13 lb) |
| In the Box | Tab-Lock backplate, 2 keys, mounting hardware |
Looking for the device itself? Browse our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
