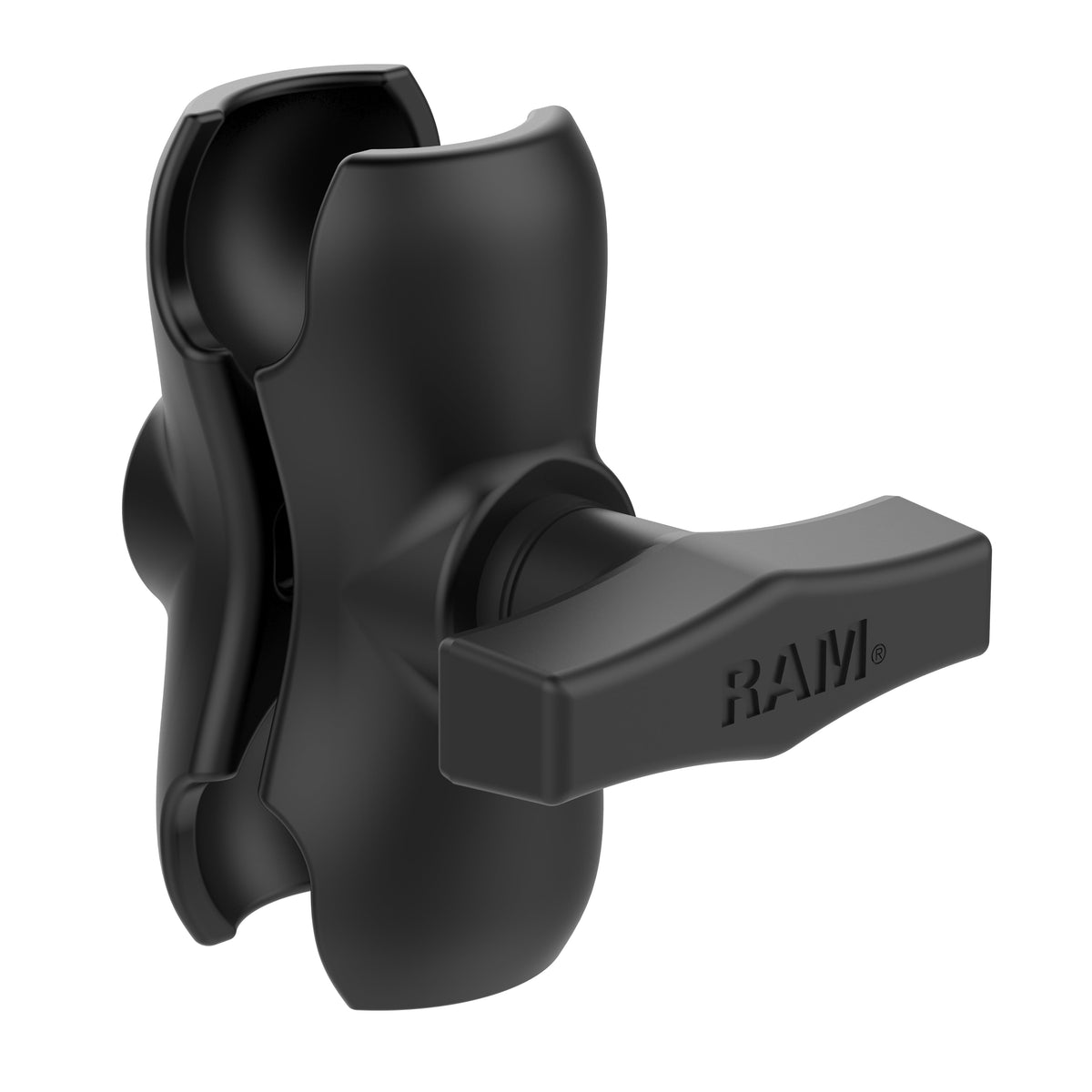

RAM Mounts Double Socket Arm, C-Size, Short, 90 mm (RAM-201U-B)

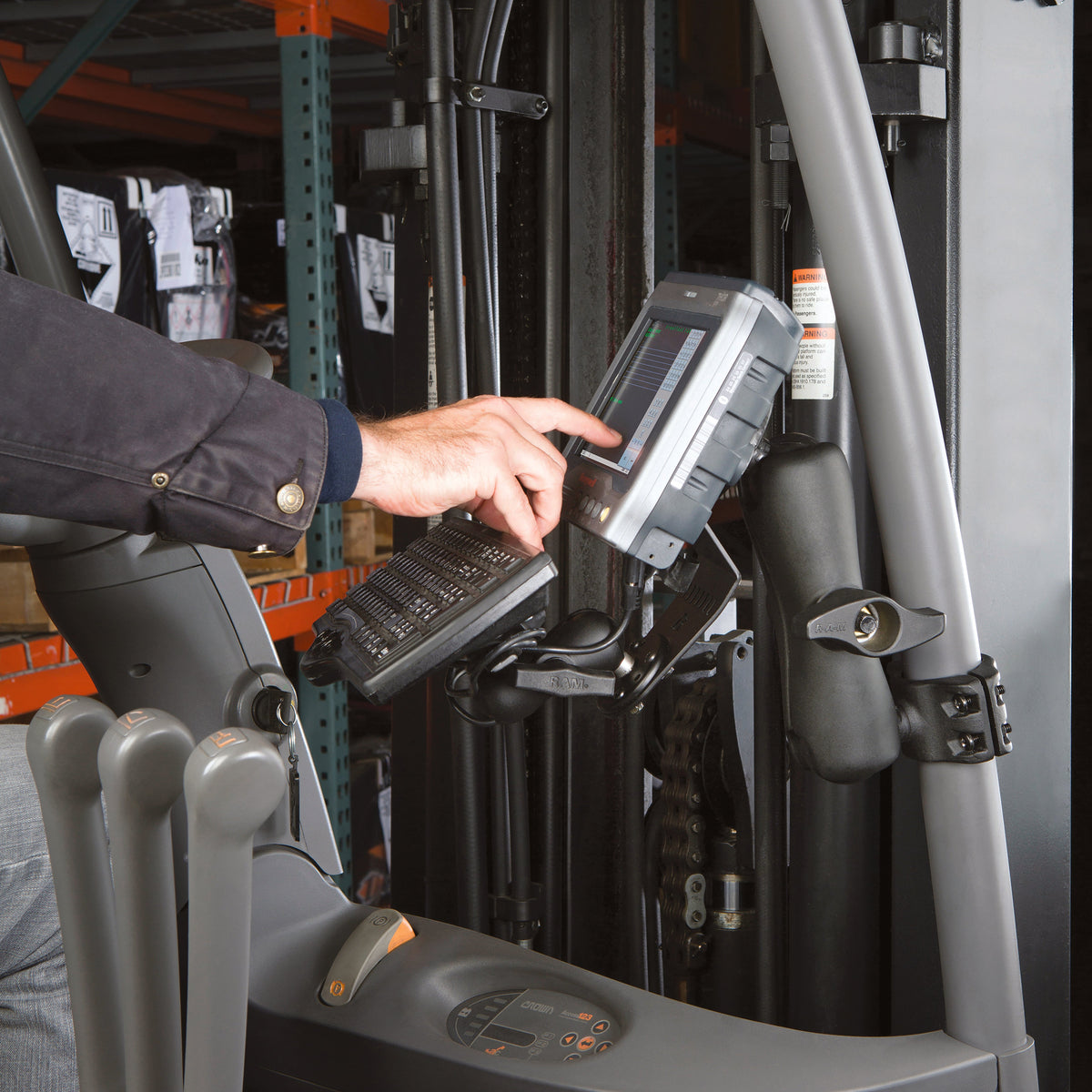

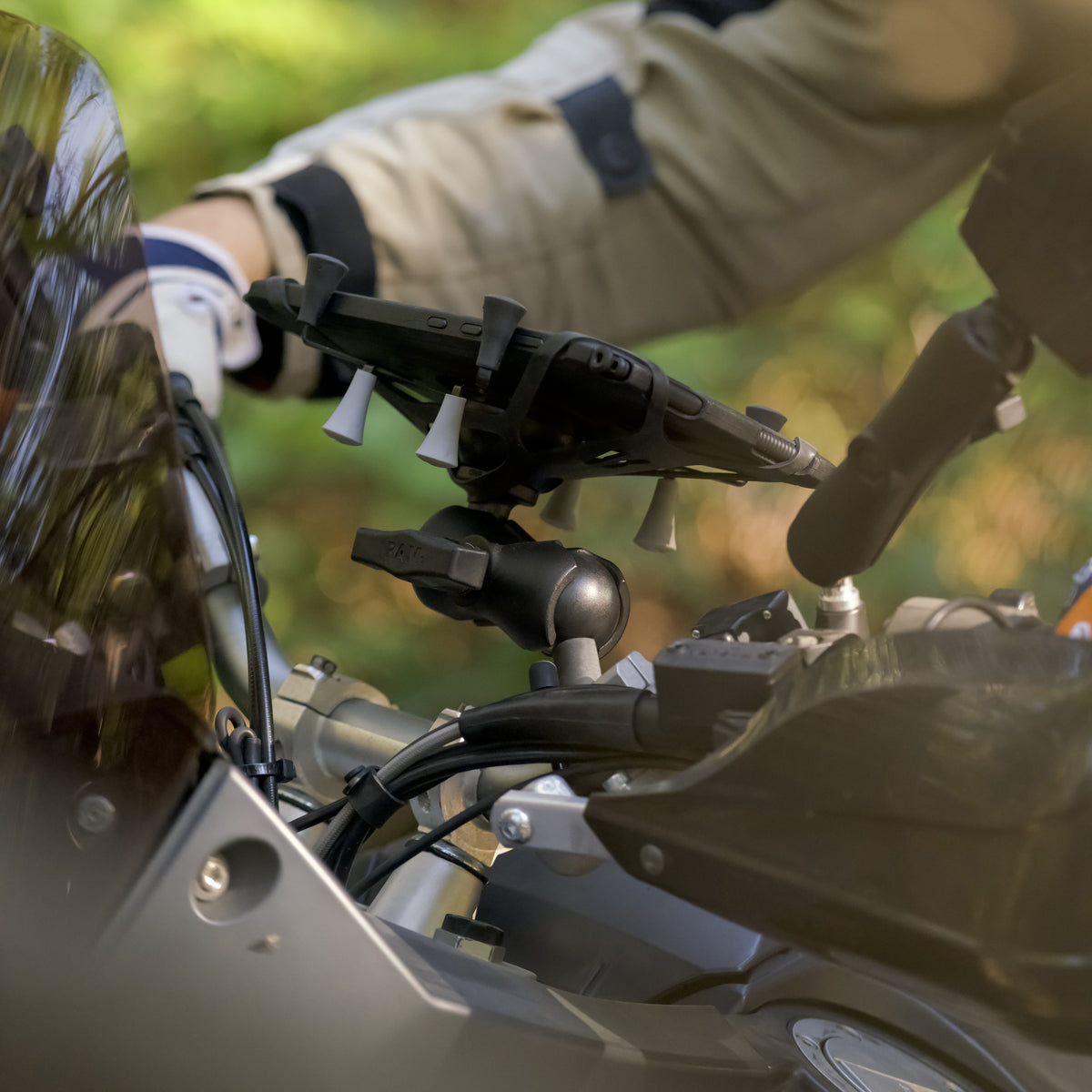

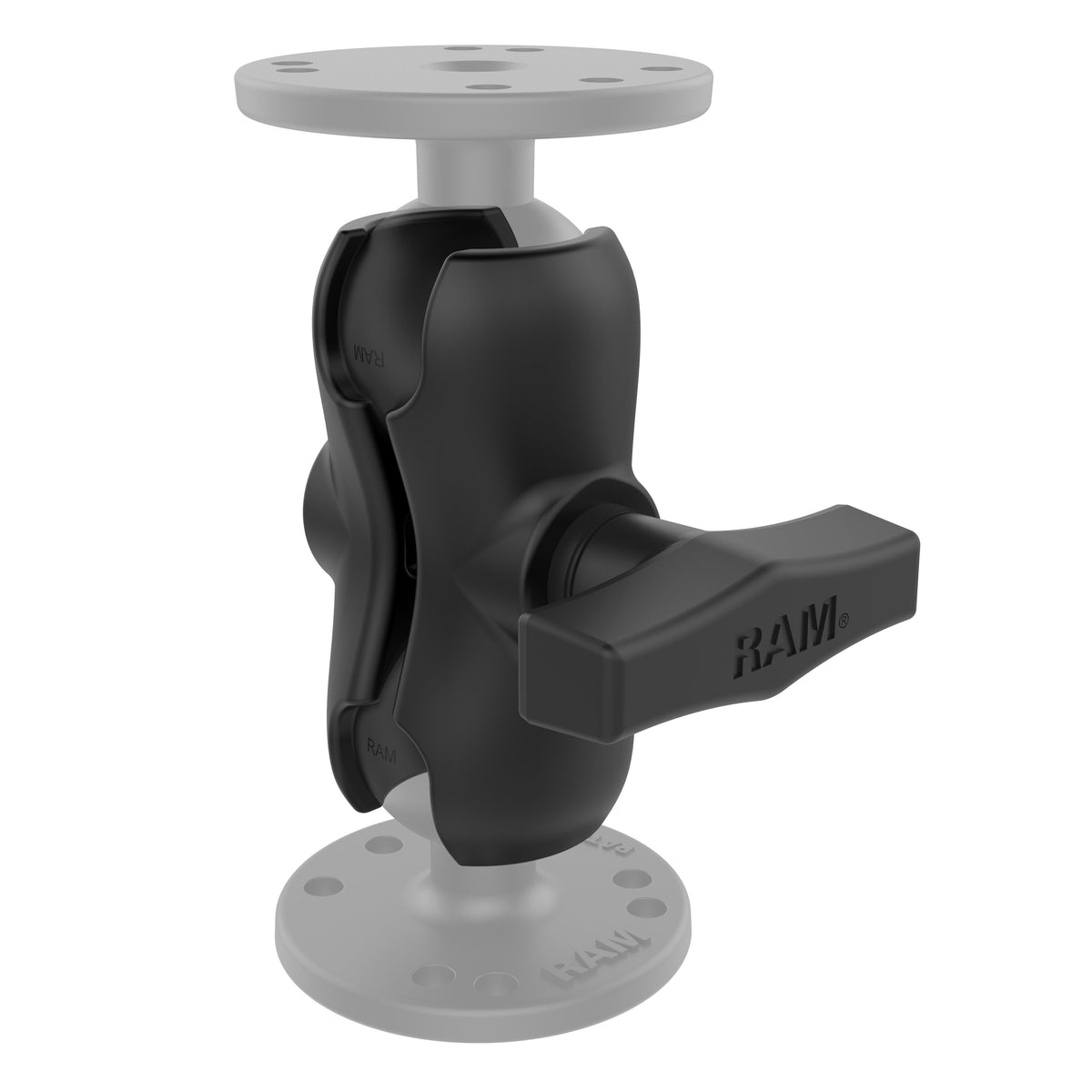

RAM Mounts Double Socket Arm, C-Size, Short, 90 mm (RAM-201U-B) is the connecting link of the RAM ball-and-socket system: it joins two RAM C-size (1.5") ball components – typically a ball base fixed in a vehicle, on a forklift or at a workstation and a device holder or cradle with a matching ball. With 90.4 mm (3.56") overall and 63.5 mm (2.5") between the sockets, it is the shortest C-size arm from RAM – ideal when the device should sit as close to the base as possible. A spring inside the arm keeps the sockets open for easy fitting, and turning the knob clamps both ball joints firmly at the angle you need.

Key Features

• Length – 90.4 mm (3.56") overall, 63.5 mm (2.5") socket to socket

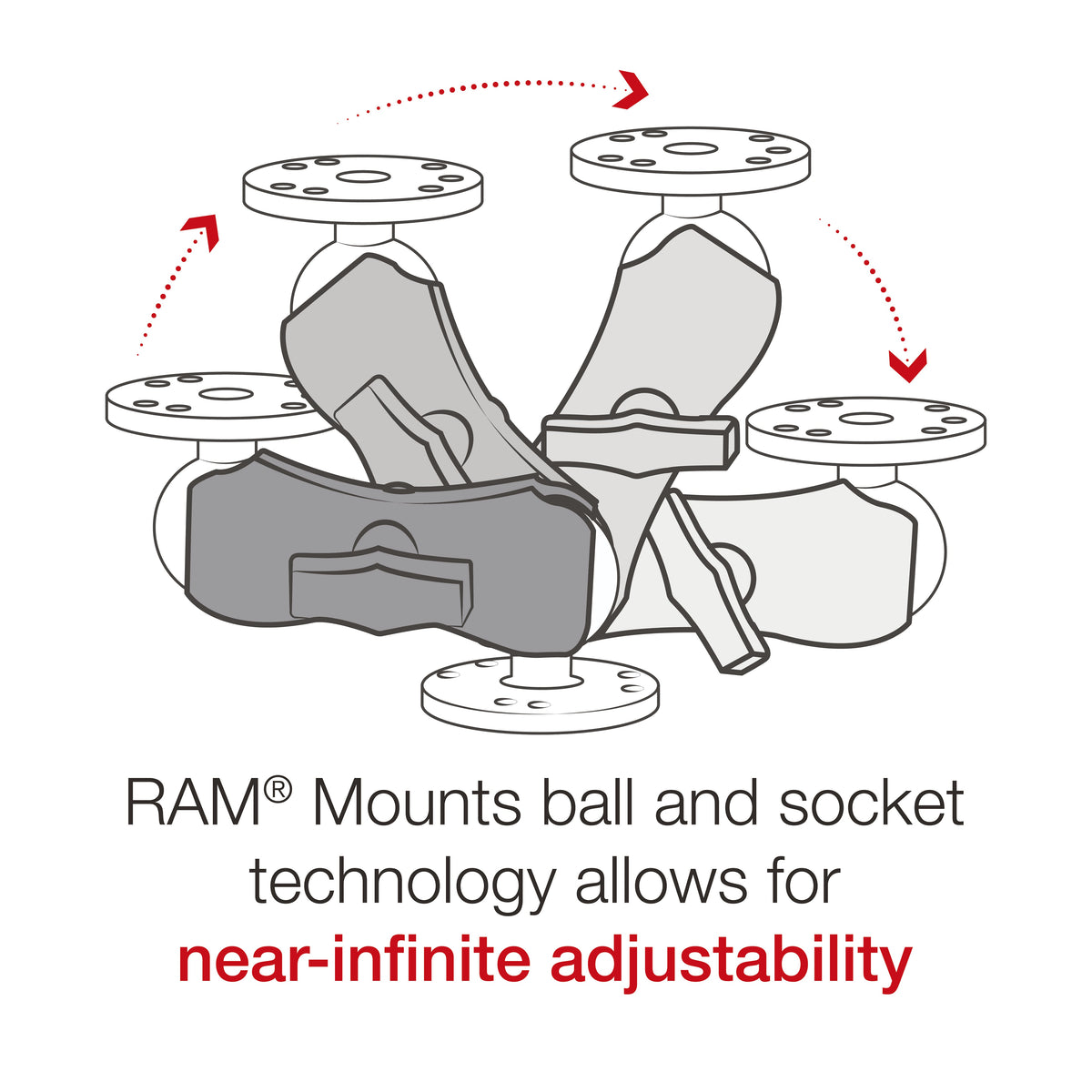

• C-size (1.5") sockets – fit any RAM C-size ball base, adapter or device holder, with near-infinite adjustment
• Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
• Material – powder-coated marine-grade aluminium
• Lifetime warranty – backed by RAM Mounts

Compatibility

• All RAM C-size (1.5") ball bases, ball adapters and device holders

Technical Specifications

More RAM ball bases, socket arms and mounting kits are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
