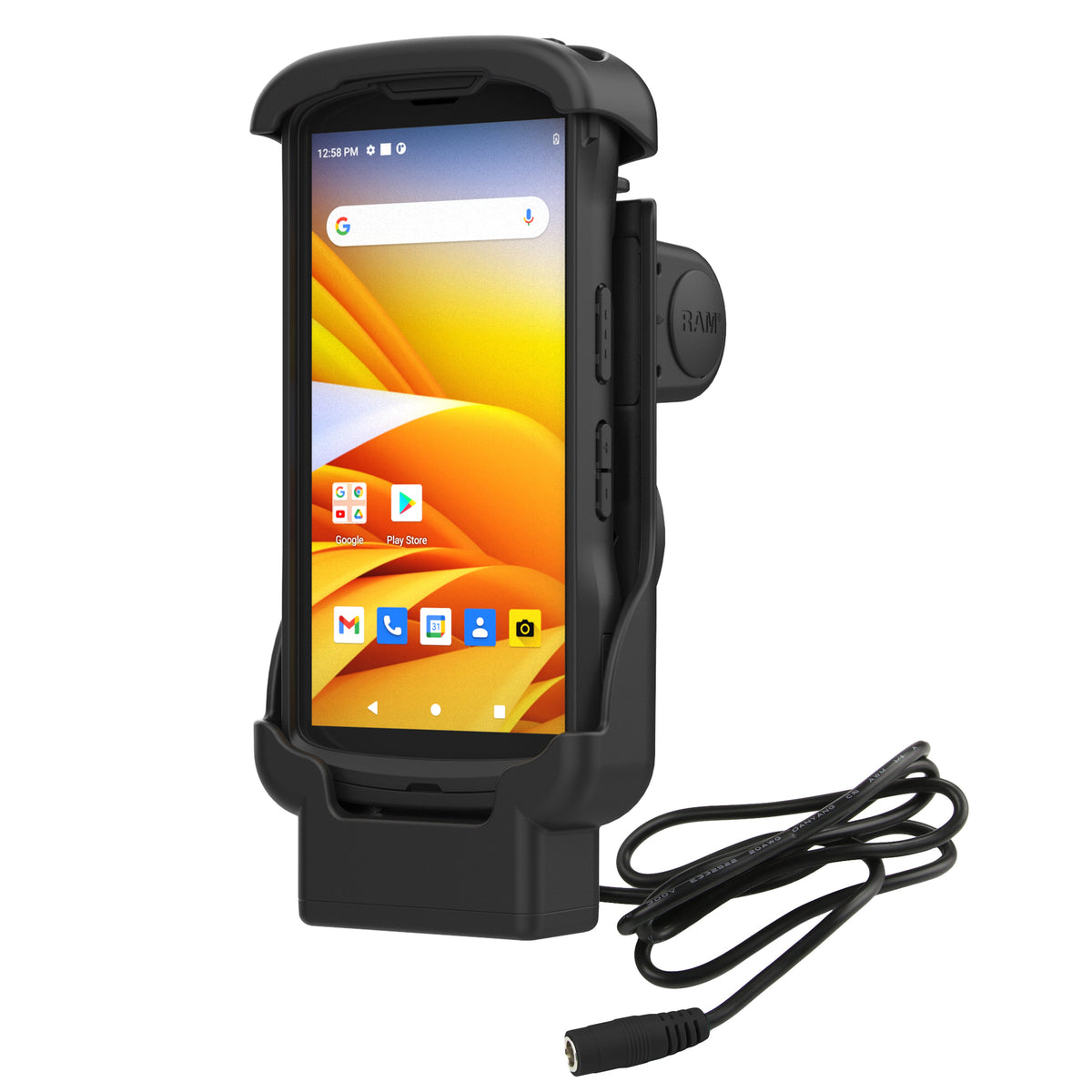

RAM Mounts Form-Fit Powered Dock for Zebra TC53 & TC58 (RAM-HOL-ZE17-2U)

RAM Mounts Form-Fit Powered Dock (RAM-HOL-ZE17-2U) is made for the Zebra TC53 and TC58 rugged mobile computers, with or without the Zebra rugged boot, and suits forklifts, delivery vehicles, warehouse carts and other mobile workplaces. The spring-loaded cradle holds the device firmly and charges it through pogo-pin contacts; power is supplied via a 1.25 m cable with a female 5.5 mm DC barrel connector. An integrated stylus holder keeps the stylus within reach and the Zebra hand strap can stay on, while the speaker and microphone remain accessible.

Key Features

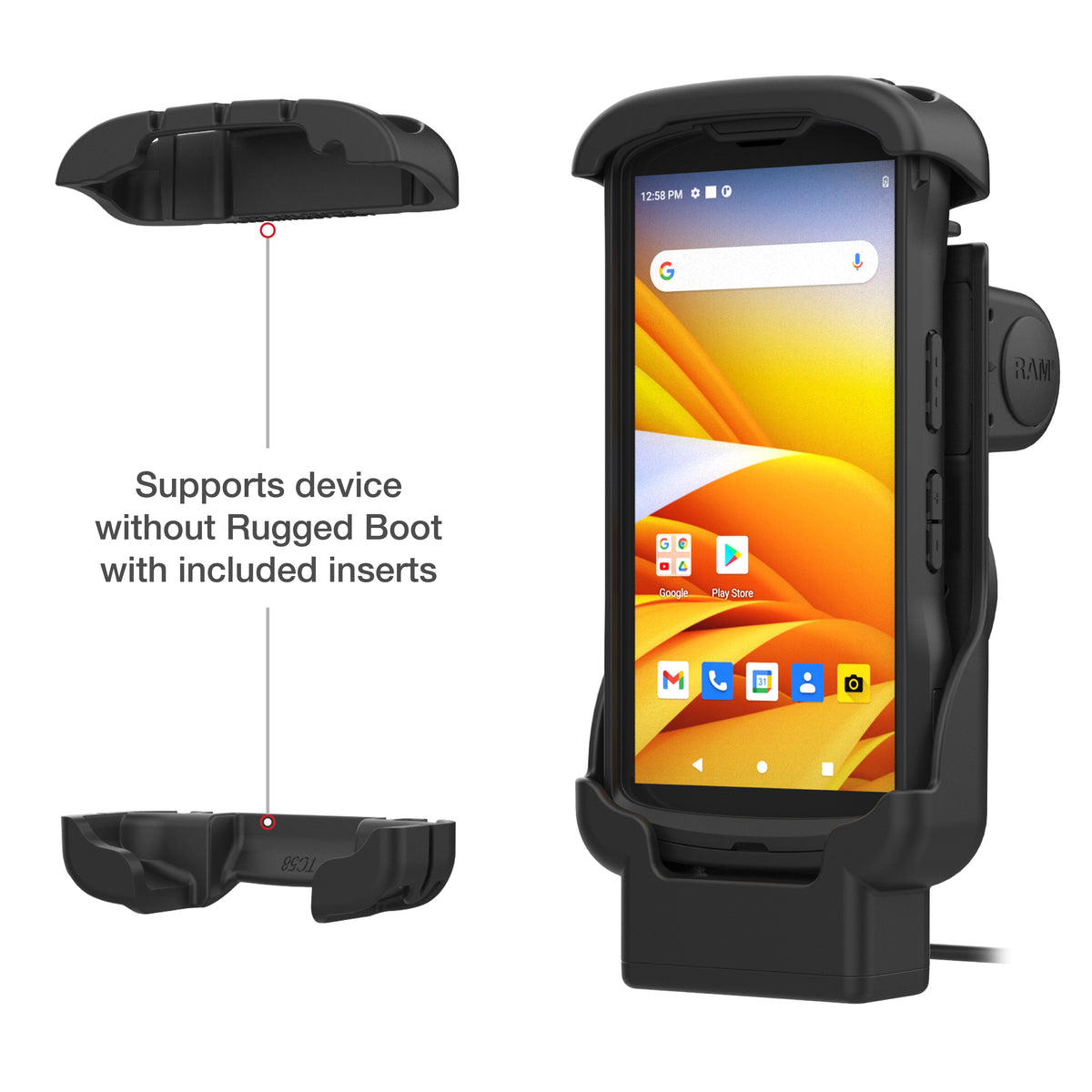

• Spring-loaded Form-Fit cradle – shaped for the Zebra TC53 and TC58; fits with or without the Zebra rugged boot (cup inserts included)

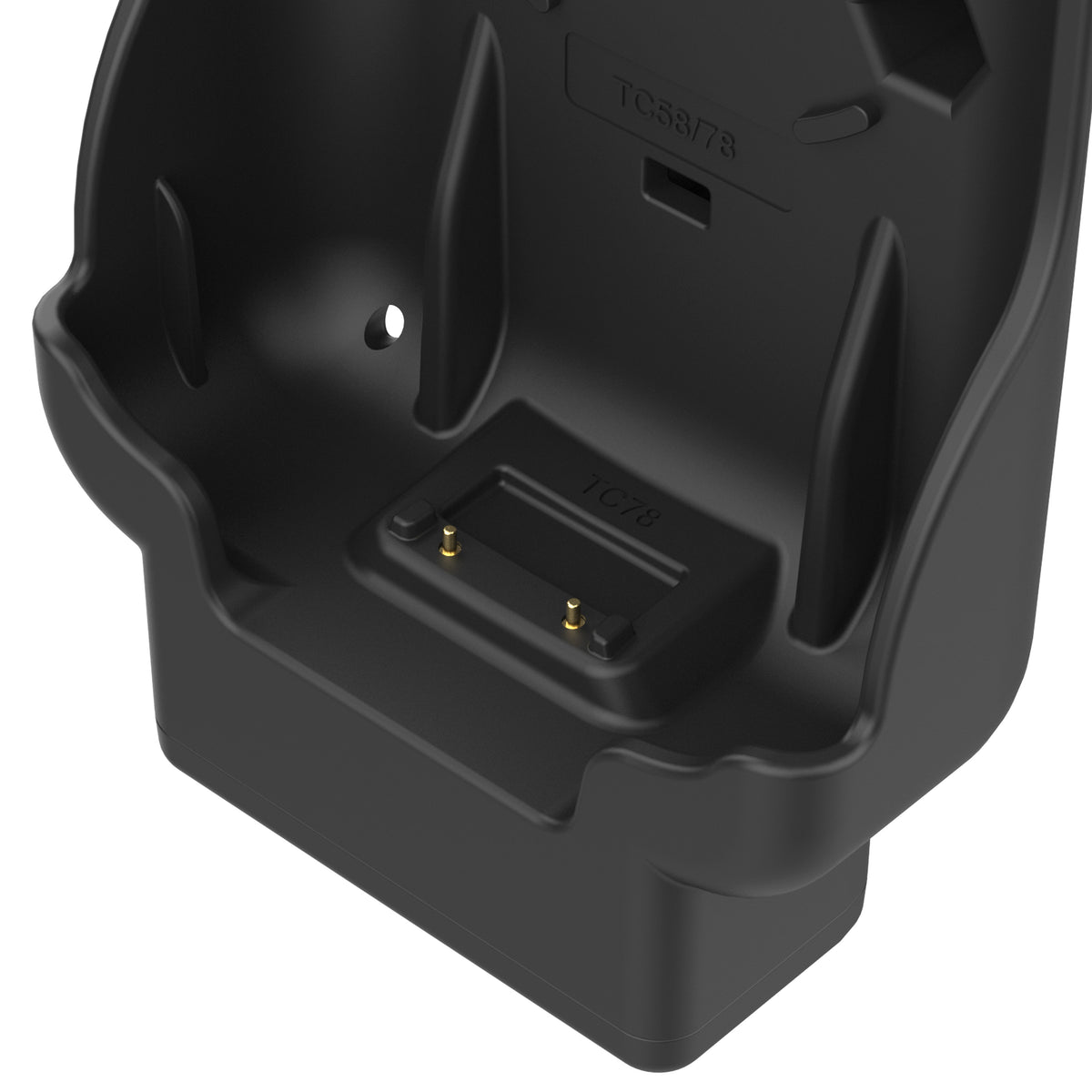

• Charging via pogo pins – 1.25 m power cable with female 5.5 mm DC barrel connector; charger sold separately
• Stylus holder & hand strap – integrated stylus holder; accommodates the Zebra hand strap; speaker and microphone stay accessible
• 2-hole AMPS pattern – 48.6 mm (1.912") diamond pattern for RAM B- or C-size diamond ball bases and fully adjustable ball-and-socket arms
• Built to last – high-strength composite, backed by a 3-year RAM warranty

Compatibility

• Zebra TC53 (with or without rugged boot)
• Zebra TC58 (with or without rugged boot)
• RAM B- or C-size diamond ball bases (2-hole AMPS, 48.6 mm)

Technical Specifications
