RAM Mounts GDS Hardwire Charger, 28–60 V In / 16 V Out, Male 5.5 mm DC Plug (RAM-GDS-CHARGE-V15U)

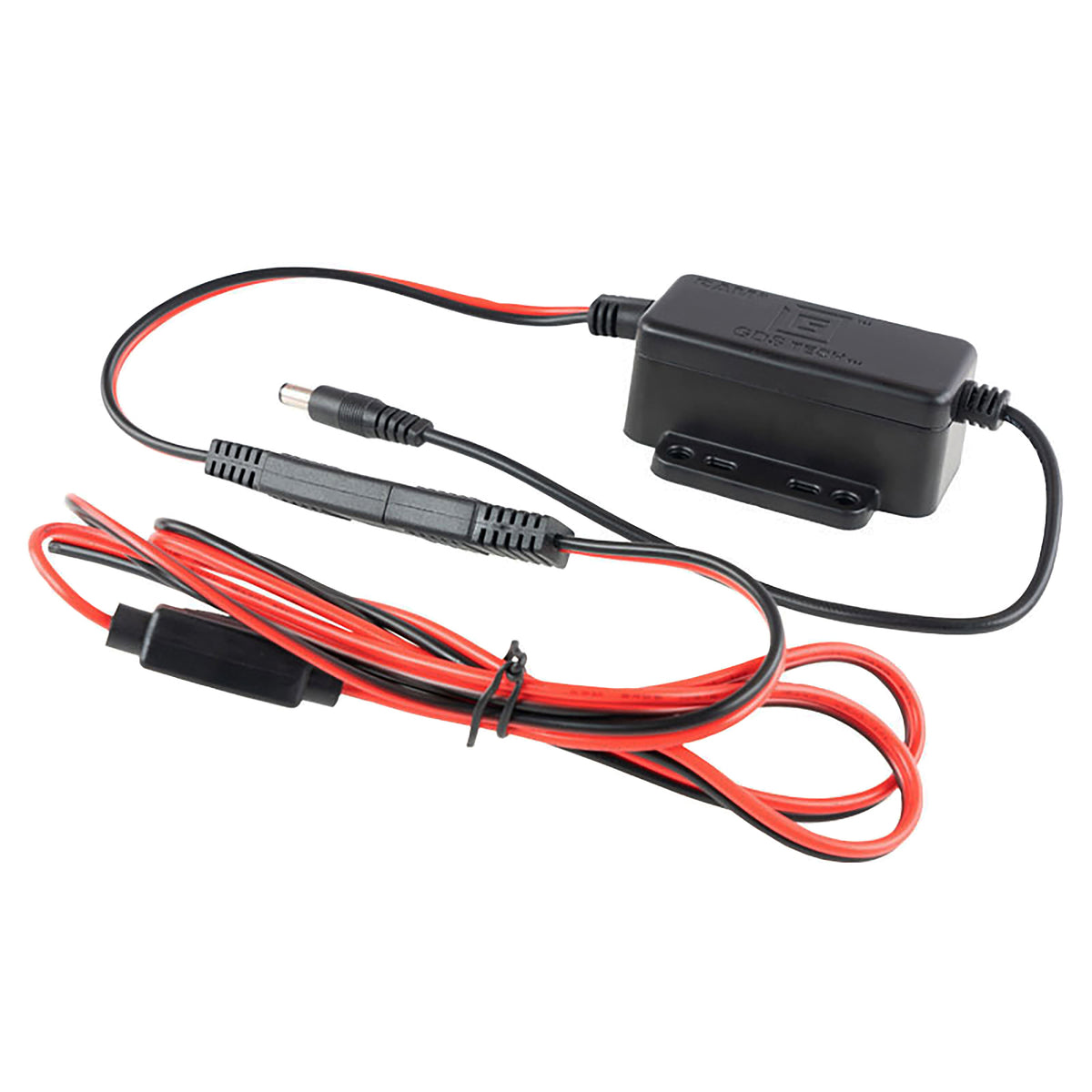

RAM Mounts GDS Hardwire Charger, 28–60 V In / 16 V Out, Male 5.5 mm DC Plug (RAM-GDS-CHARGE-V15U) is a modular GDS hardwire charger that converts the 28–60 V DC on-board supply into a regulated 16 V DC for RAM and GDS docks with a female 5.5 mm DC power input. Its 28–60 V DC input range suits a variety of higher-voltage electrical systems. The charger is wired to the vehicle once: a 2-pole flat marine quick-disconnect on the 1.2 m input cable lets you unplug it and fit different charger components when you change devices – without rewiring. The short 0.2 m output lead ends in a male 5.5 × 2.5 mm barrel plug that goes straight into the dock.

Key Features

• Regulated 16 V DC output – up to 3.5 A for docks with a 5.5 mm DC input
• Modular quick-disconnect – unplug at the 2-pole flat marine connector and swap the charger when devices change – no rewiring
• Built-in protection – over-voltage, short-circuit and reverse-polarity protection; SAE J1113-5 load dump; moisture resistant
• Wide temperature range – operating −10 to +70 °C, storage −40 to +70 °C
• Approvals – FCC, CE, UKCA, IC, RoHS, WEEE and RCM
• 3-year warranty – backed by RAM Mounts

Compatibility

• RAM and GDS docks with a female 5.5 mm DC power input that require 16 V DC
• Vehicle and equipment electrical systems with 28–60 V DC

Technical Specifications

More RAM and GDS docks, chargers and mounting parts are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
