RAM Mounts GDS Hardwire Charger, USB-C PD 45 W, 30–64 V Input (RAM-GDS-CHARGE-V3CH-2U)
Regular price
567,00 zł +VAT

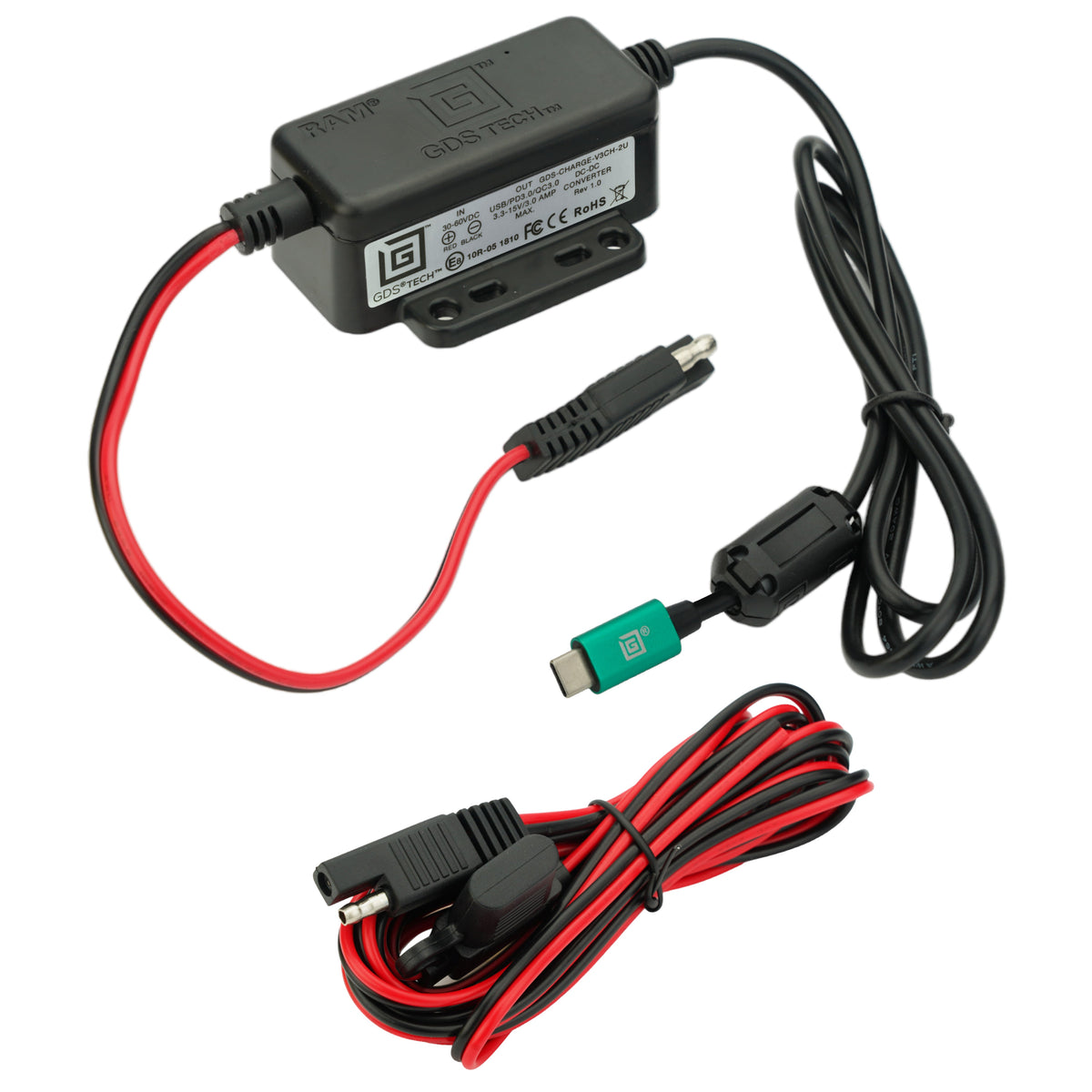

RAM Mounts GDS Hardwire Charger, USB-C PD 45 W, 30–64 V Input (RAM-GDS-CHARGE-V3CH-2U) is a GDS hardwire charger that is wired directly to the vehicle's power supply and delivers USB-C Power Delivery at 5–15 V (max. 3 A, 45 W) to GDS vehicle docks and other docks with a USB-C power input. Its 30–64 V DC input range suits a variety of higher-voltage electrical systems. The 2.5 m bare-wire input cable connects to the on-board supply, and the 1 m output cable ends in a male USB-C connector that plugs into the dock. When devices change, simply unplug the connector and attach new charger components – no rewiring needed.
📦 What's in the box – RAM-GDS-CHARGE-V3CH-2U
- Hardwire charger – 30–64 V DC in, USB-C PD 5–15 V / 3 A out, 2.5 m bare-wire input cable, 1 m output cable with male USB-C connector
💡 You might also consider a GDS dock with a USB-C power input, for example the GDS Uni-Conn dock with release lever or the GDS dock for Zebra TC73/TC78 in IntelliSkin.
Key Features
- USB-C Power Delivery – 5–15 V, max. 3 A (45 W) via male USB-C connector
- Direct vehicle connection – 30–64 V DC input via 2.5 m bare-wire cable; 1 m output cable
- Modular design – unplug the USB-C connector and fit new charger components when devices change – no rewiring
- Built-in protection – over-voltage, short-circuit and reverse-polarity protection; SAE J1113-5 load dump; moisture resistant
- Rugged and certified – operating −20 to +70 °C, storage −40 to +85 °C; CE, RCM, FCC, UL 62368-1, RoHS and WEEE
- 3-year warranty – backed by RAM Mounts
Compatibility
- GDS vehicle docks and RAM docks with a female USB-C power input
- GDS Uni-Conn docks for IntelliSkin tablets (lever, button and spring-loaded versions)
- GDS Tough-Docks for Samsung Galaxy Tab Active and Tab S tablets
- GDS docks for Zebra ET4x/ET401, TC2x/TC5x and TC73/TC78 in IntelliSkin
- GDS key-locking vehicle dock for Honeywell CT37 (RAM-GDS-DOCKL-V15-CU)
- Key-locking powered USB-C vehicle dock for Zebra EM45 (RAM-HOL-V15-ZE38PLU)
- Vehicle electrical systems with 30–64 V DC
Technical Specifications
| Part Number | RAM-GDS-CHARGE-V3CH-2U |
|---|---|
| Product Type | Hardwire charger (DC/DC) with male USB-C output |
| Compatible Devices | GDS vehicle docks and RAM docks with a female USB-C power input |
| Connection | Output: male USB-C; input: bare wire (2.5 m) |
| Power / Charging | Input 30–64 V DC; output 5–15 V DC, max. 3 A, 45 W (USB Power Delivery); output cable 1 m |
| Weight | 212 g (0.47 lb) |
| Warranty | 3 years (RAM Mounts) |
| In the Box | Hardwire charger |
More RAM and GDS docks, chargers and mounting parts are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Power | Ports / connector | Price | ||
|---|---|---|---|---|---|
 |
RAM-GDS-CHARGE-V21CU | 10–30 V in → 5–12 V out | USB-C PD 25 W | 364,00 zł+VATOut of Stock | View |
 |
RAM-GDS-CHARGE-V22CU | 30–60 V in → 5–12 V out | USB-C PD 25 W | 410,00 zł+VATOut of Stock | View |
 |
RAM-GDS-CHARGE-V3C-1U | 12–24 V in → 12 V out | USB-C PD (PPS) | 488,00 zł+VATOut of Stock | View |
| RAM-GDS-CHARGE-V3C-2U | Hardwire 10–30 V DC input | USB-C PD (male) | 557,00 zł+VATOut of Stock | View | |
 |
RAM-GDS-CHARGE-V3C-3U | 10–30 V in → 5–15 V out | USB-C PD 45 W | 604,00 zł+VATIn Stock | |
 |
RAM-GDS-CHARGE-V3CH-2UViewing | 30–64 V in → 5–15 V out | USB-C PD 45 W | 567,00 zł+VATIn Stock | |
 |
RAM-GDS-CHARGE-V3FC-2U-NC | 10–30 V in → 5–12 V out | USB-C female (PD) | 602,00 zł+VATOut of Stock | View |
 |
RAM-GDS-CHARGE-V7CU | 10–30 V in → 5.42–9 V out | USB-C (no PD) | 358,00 zł+VATOut of Stock | View |
 |
RAM-GDS-CHARGE-V8CU | 30–64 V in → 5.42–9 V out | USB-C (no PD) | 340,00 zł+VATOut of Stock | View |
