RAM Mounts GDS Power + Data Dock for Zebra ET5x 8.3" & 8.4" (RAM-HOL-ZE10PDU)

RAM Mounts GDS Power + Data Dock (RAM-HOL-ZE10PDU) holds Zebra ET5x 8.3" & 8.4" series tablets in the Zebra Rugged Frame securely in forklifts, delivery vans and service vehicles or at a fixed workstation. With power connected to its 5.5 mm DC jack, integrated GDS pogo pins charge the tablet as soon as it is docked, and a built-in USB-A cable connects one peripheral. A rear cutout keeps the tablet's scanner usable while docked and leaves room for add-ons such as a scanner, hand strap or PowerPack battery.

Key Features

• Form-Fit design – shaped for ET5x 8.3" & 8.4" tablets in the Rugged Frame; cutouts keep all buttons and ports accessible, and the rear cutout keeps scanning available while docked
• GDS charging – pogo-pin contacts charge the tablet while docked; power input via 5.5 mm DC jack; built-in USB 2.0 Type-A cable for one peripheral (500 mA, 480 Mbps)
• Accessory-friendly – room for a scanner, hand strap or PowerPack battery; supports the rotating hand strap (not the SG-ET5X-SFSTRAP1-01 hand strap)

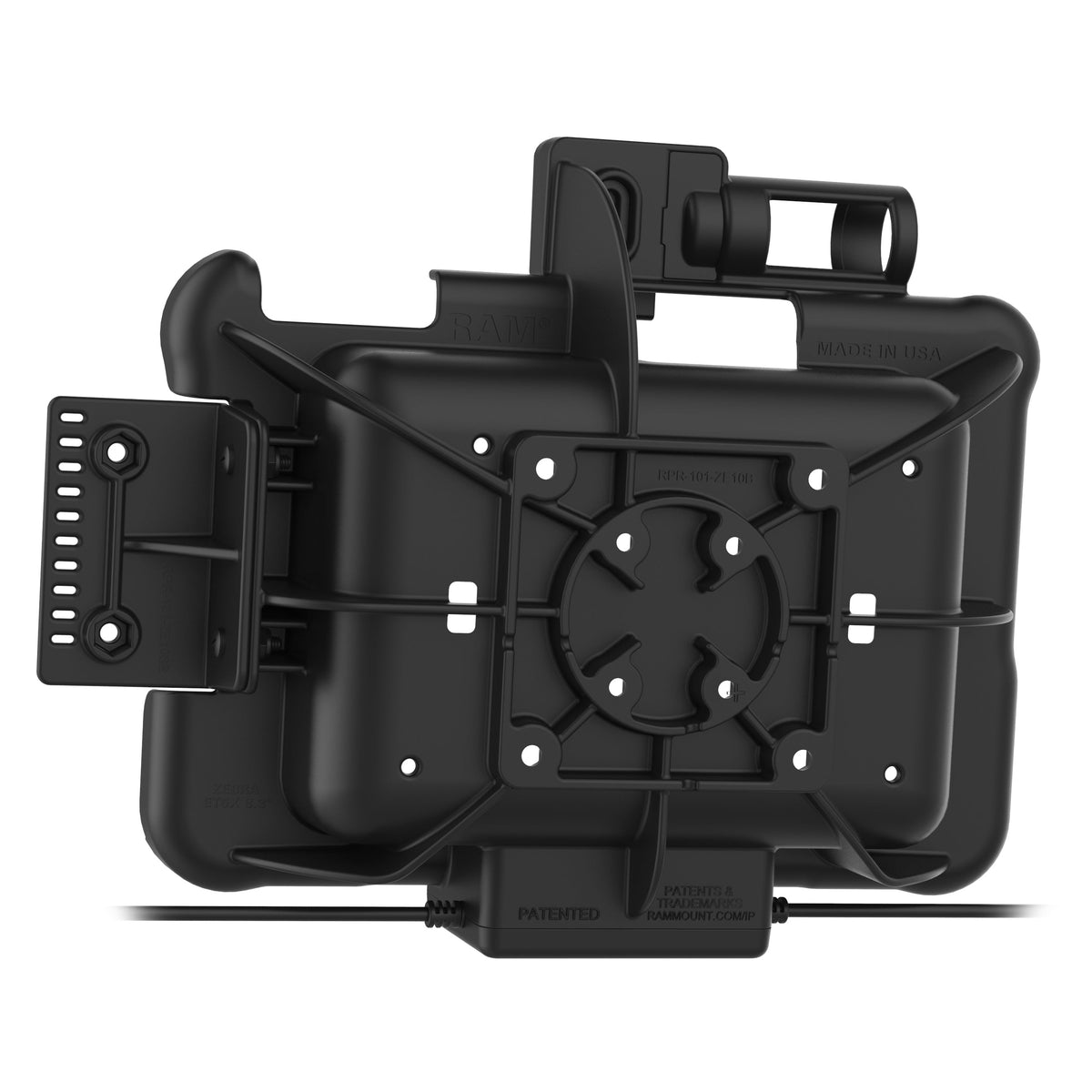

• Flexible mounting – 4-hole AMPS (30 × 38 mm) and VESA 75 × 75 mm patterns for RAM C- and D-size bases with a double socket arm; built-in 2-hole plate and side bracket for RAM 2-hole diamond bases, e.g. for a phone
• Built to last – high-strength composite, backed by a 3-year RAM warranty

Compatibility

• Zebra ET5x 8.3" series tablets with Rugged Frame
• Zebra ET5x 8.4" series tablets with Rugged Frame
• RAM C- and D-size bases with 4-hole AMPS (30 × 38 mm) or VESA 75 × 75 mm pattern
• RAM 2-hole diamond bases (built-in 2-hole plate and side bracket)

Technical Specifications

Looking for the device itself? Browse our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
