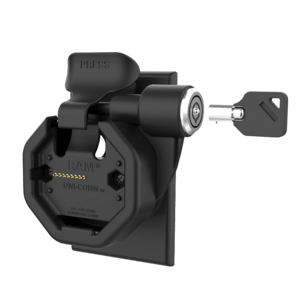

RAM Mounts GDS Uni-Conn Powered Key-Locking Snap-In Wall Dock with PoE (RAM-GDS-DOCKL-W5-U3-POEU)

RAM Mounts GDS Uni-Conn Powered Key-Locking Snap-In Wall Dock with PoE (RAM-GDS-DOCKL-W5-U3-POEU) is a snap-in wall dock for tablets in an IntelliSkin Thin-Case with rear pogo pads. The mechanical snap-in attachment holds the tablet securely, which makes the dock ideal for high-traffic environments; a right-hand key lock adds theft deterrence. Power reaches the pogo pins of the GDS Uni-Conn interface through the JST connector and the PoE adapter, fed from a PoE+ network. The dock installs directly over a standard rectangular (US-type) electrical outlet box.

Key Features

• Snap-in attachment – mechanical retention for high-traffic environments
• Power over Ethernet – JST input (800 mm lead) with the included PoE to PD module; PoE+ (IEEE 802.3at) or higher; PD 3.0 output 5 V @ 3 A / 9 V @ 2.22 A / 12 V @ 1.67 A, max. 20 W
• Key lock on the right – additional theft deterrence, 2 keys included
• Outlet box installation – over a standard rectangular (US-type) electrical box; 2-hole pattern 83.3 mm (3.281")
• 3-year warranty – backed by RAM Mounts; high-strength composite housing

Compatibility

• Tablets in IntelliSkin Thin-Case sleeves with rear pogo pads (required)
• Power source: PoE+ network switch or injector (IEEE 802.3at or higher)

Technical Specifications
