RAM Mounts Power + Data Dock with USB-A & Heated Pins for Zebra ET60 & ET65 (RAM-HOL-ZE25PDHU)

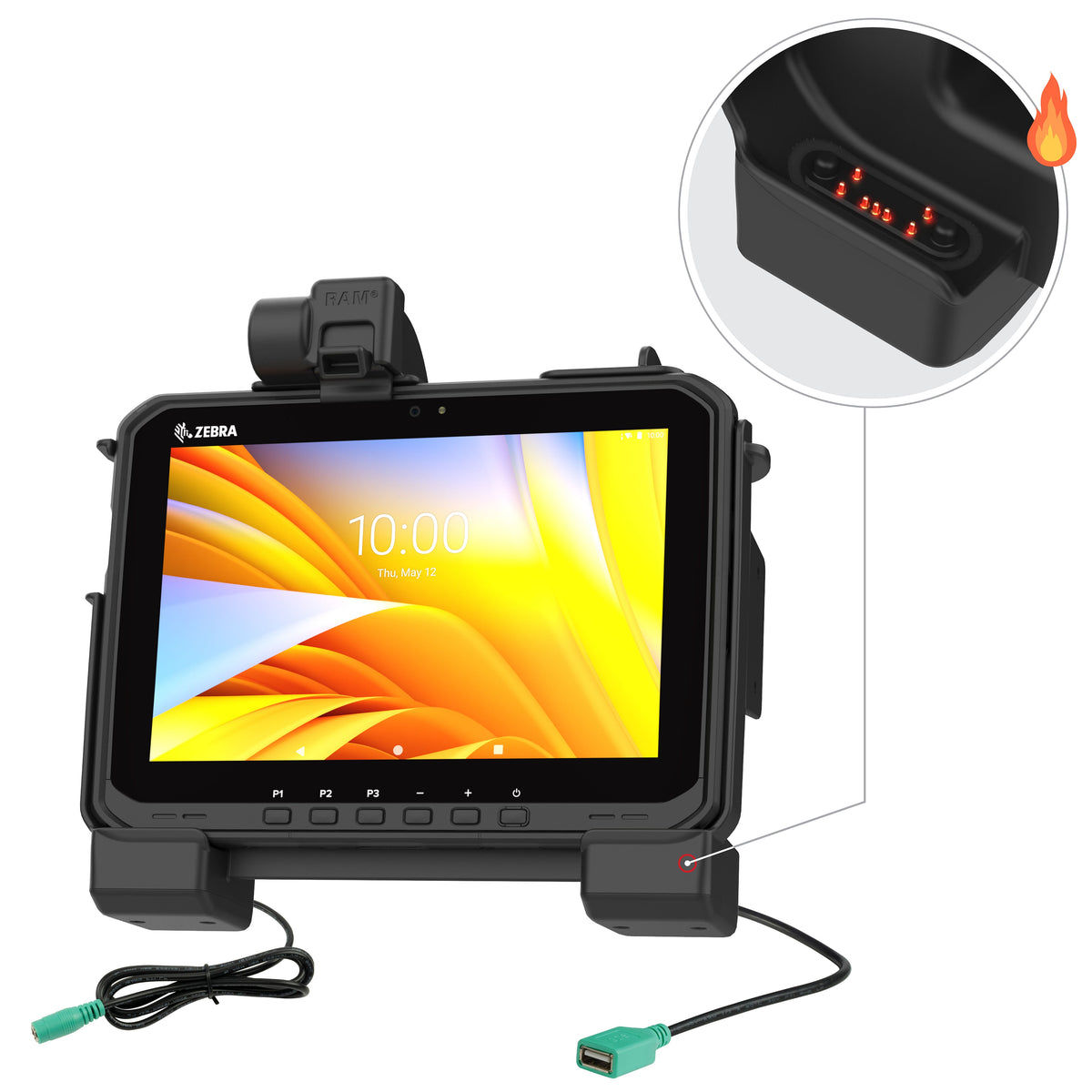

RAM Mounts Power + Data Dock with USB-A & Heated Pins (RAM-HOL-ZE25PDHU) is made for the Zebra ET60 and ET65 tablets and suits forklifts, delivery vans, field-service vehicles and other mobile workplaces. It holds the tablet with or without the attachable Zebra keyboard – the 2-in-1 latch secures the tablet while the keyboard opens and closes independently. The patented 3-D Float connector charges the tablet through pogo-pin contacts as soon as it is docked; power is supplied via a 1 m cable with a 5.5 mm DC connector, and a built-in USB-A cable connects one peripheral such as a scanner. Built-in heating elements keep the pogo pins from locking up, so the dock keeps working in wet and freezing environments.

Key Features

• Form-Fit dock with 2-in-1 latch – holds the Zebra ET60 and ET65 with or without the Zebra keyboard, which opens and closes independently

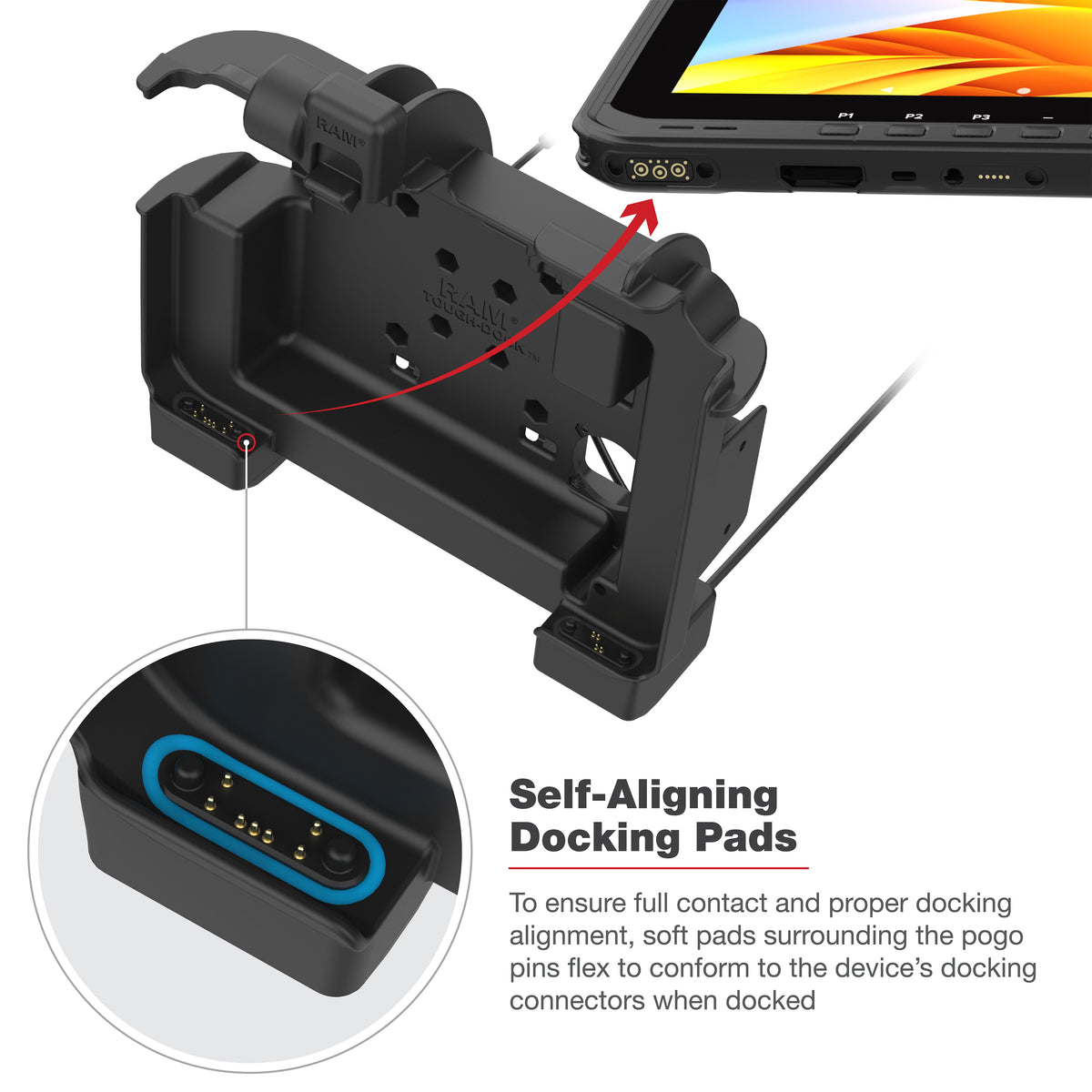

• 3-D Float docking connector – patented; a self-aligning pad around the pogo pins ensures reliable contact and protects the pins (rated for 100,000 cycles); 5.5 mm DC input on a 1 m cable, charger sold separately
• USB-A peripheral port – USB 2.0, 500 mA, 12 Mbps on a 216 mm cable – for a scanner, keyboard or other peripheral
• Heated pogo pins – built-in heating elements keep the contacts from locking up in wet and freezing environments
• Accessory-ready – compatible with RAM Vent-Temp, Temp-Right and NFC Extender; two small device mounting areas on the left and right sides; side cut-out keeps the Zebra CAC reader door usable; hand and shoulder strap can stay on

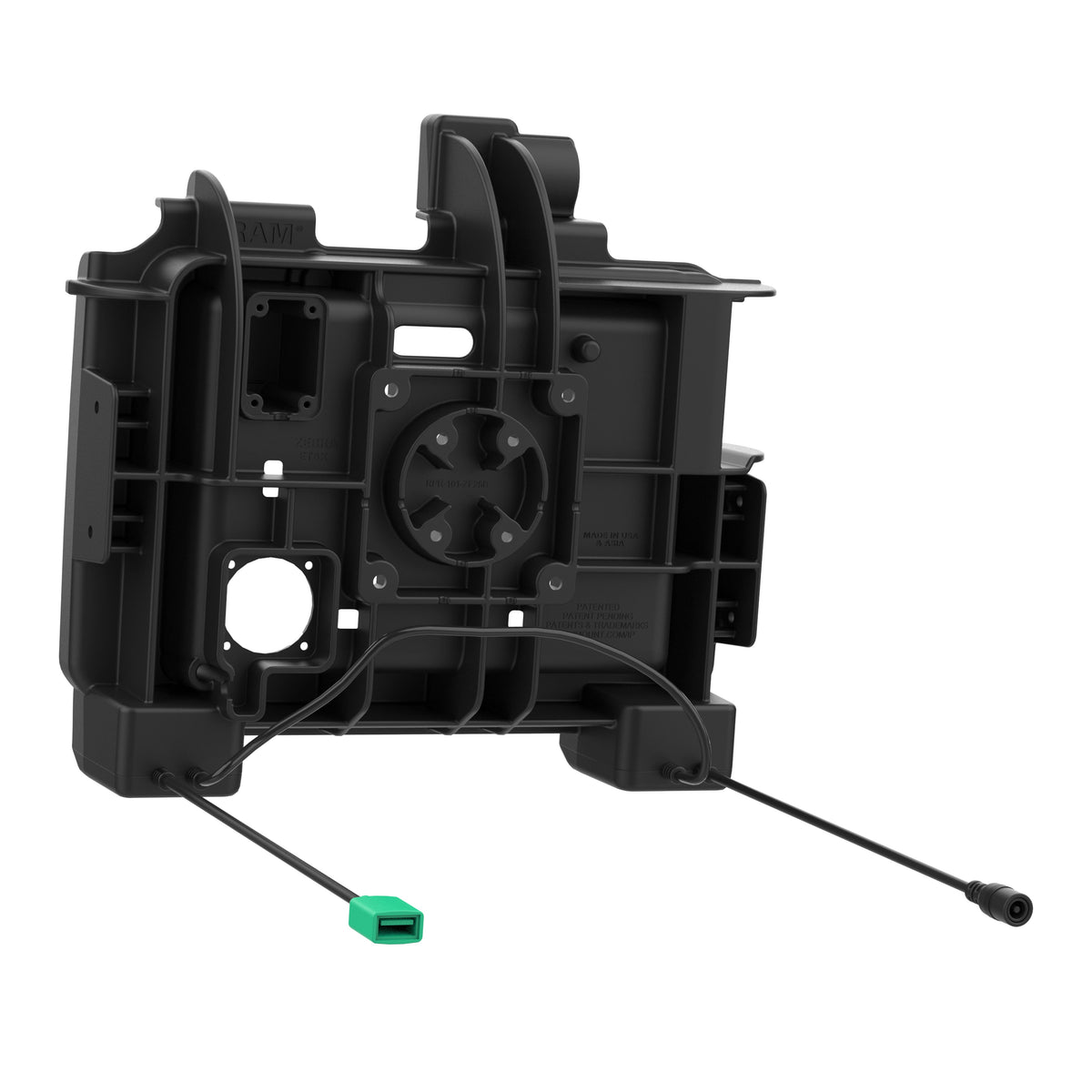

• Universal mounting – 75 × 75 mm VESA and 4-hole AMPS (30 × 38 mm) pattern for RAM ball bases; high-strength composite; 3-year RAM warranty

Compatibility

• Zebra ET60 (with or without Zebra keyboard)
• Zebra ET65 (with or without Zebra keyboard)
• Zebra hand strap and shoulder strap (usable while docked)
• RAM ball bases with 75 × 75 mm VESA or 4-hole AMPS (30 × 38 mm) pattern

Technical Specifications

You will find the devices and more matching accessories in our Zebra ET60 and Zebra ET65 collections. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
