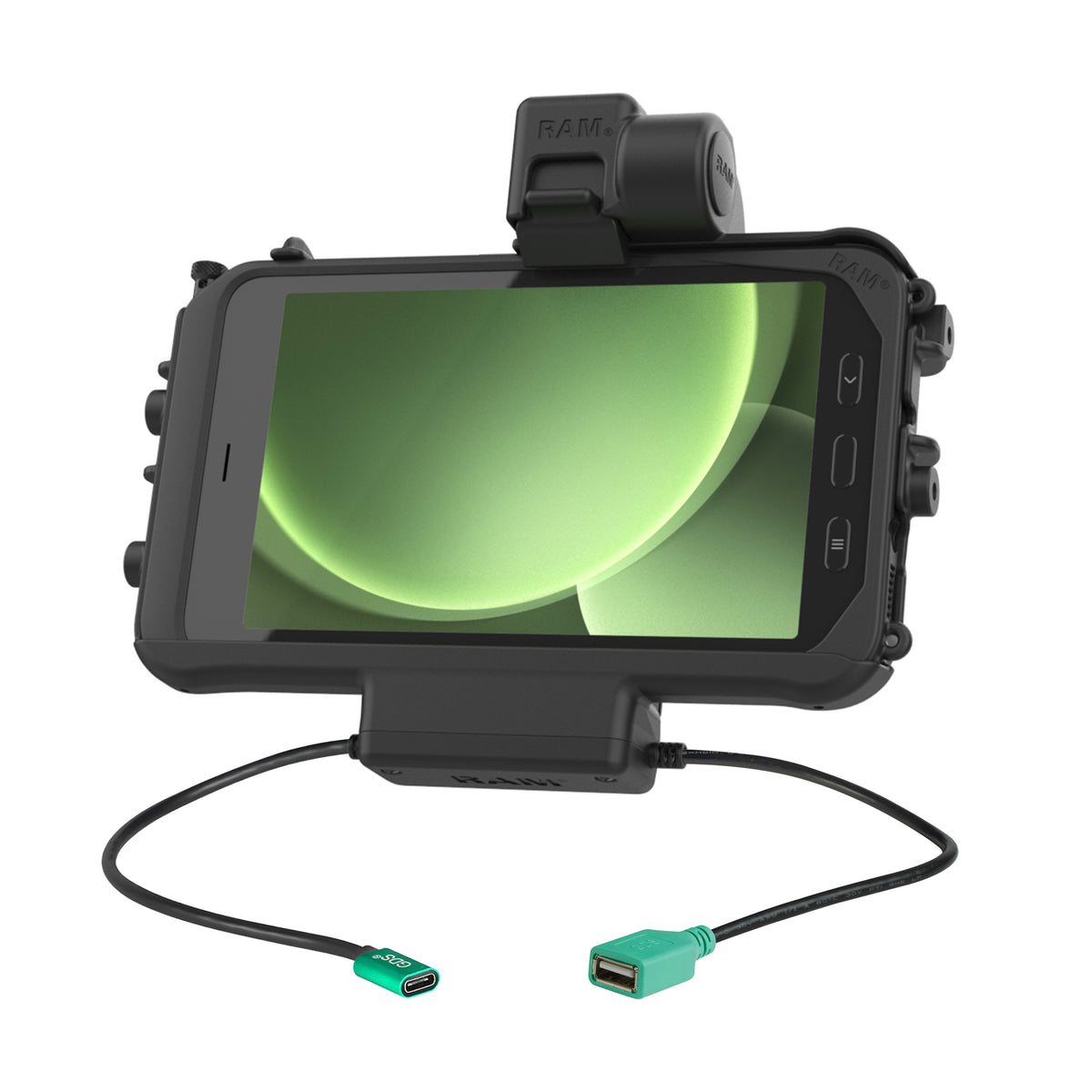

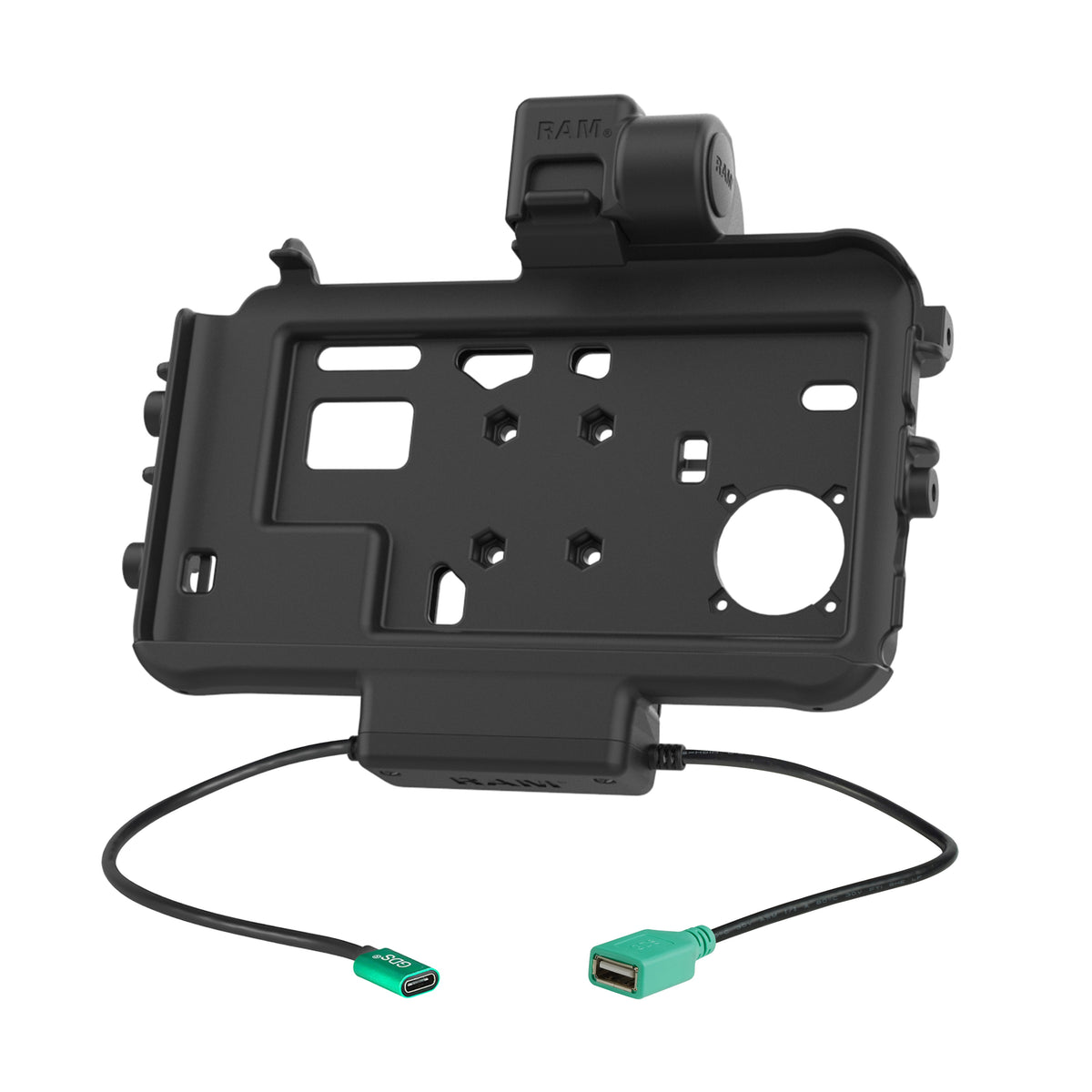

RAM Mounts Thin-Dock Powered Dock + Single USB-A for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPT-1AU)

RAM Mounts Thin-Dock Powered Dock + Single USB-A for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPT-1AU) is a powered Thin-Dock dock for the Samsung Galaxy Tab Active5 and Tab Active3 in a Samsung OEM case or RAM Skin, designed for truck drivers, field service technicians, logistics teams and forklift operators who work from a vehicle. The tablet charges via integrated pogo pins as soon as it is docked; power is fed through a USB-C input cable, and a non-Power Delivery (non-PD) charger is required. A built-in USB-A cable connects one peripheral such as a keyboard, barcode scanner or printer. At only 58 mm (2.28") deep and reinforced with a metal plate, the Thin-Dock keeps a slim profile and works with the RAM Vent-Temp, the RAM NFC Extender and side accessory attachments.

Key Features

• Form-Fit cradle – shaped specifically for the Samsung Galaxy Tab Active5 and Tab Active3 in a Samsung OEM case or RAM Skin
• Pogo-pin charging – USB-C female input (5.3–5.4 V DC, 250 mm cable), 5 V DC / 500 mA to the tablet; non-PD charger required
• Peripheral ports – 1× USB-A (USB 1.1), 250 mm cable, 500 mA, 12 Mbps

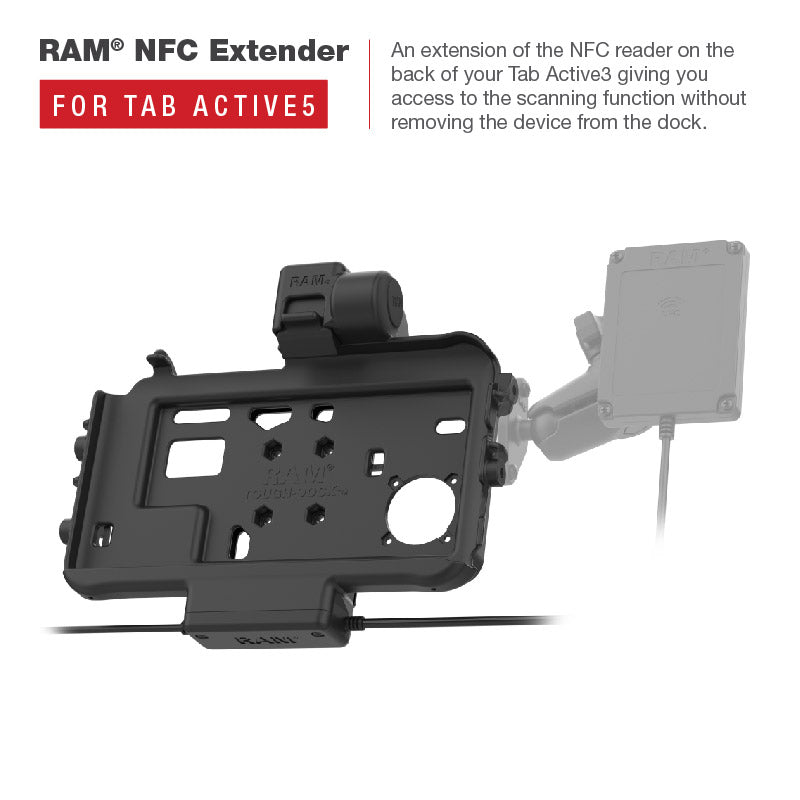

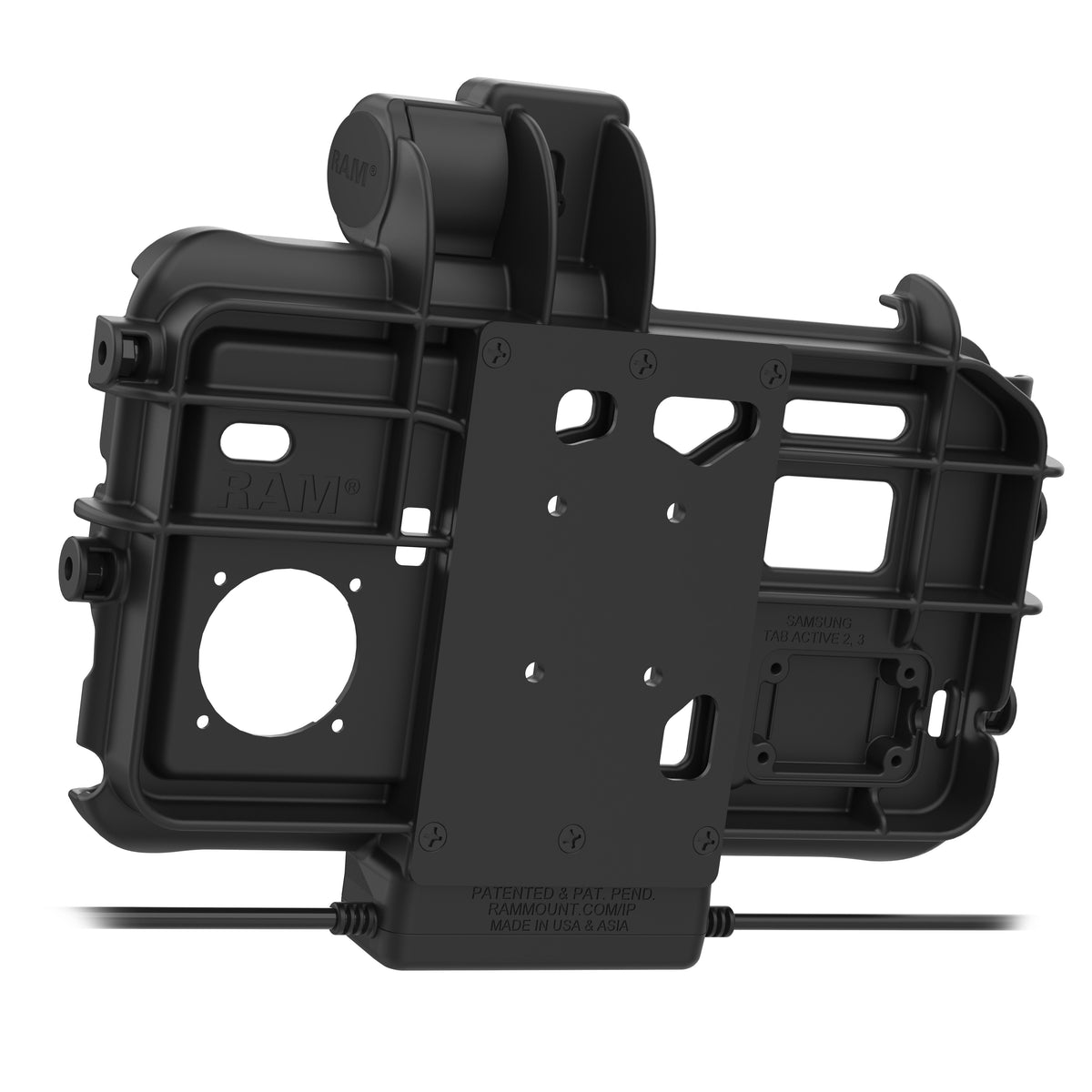

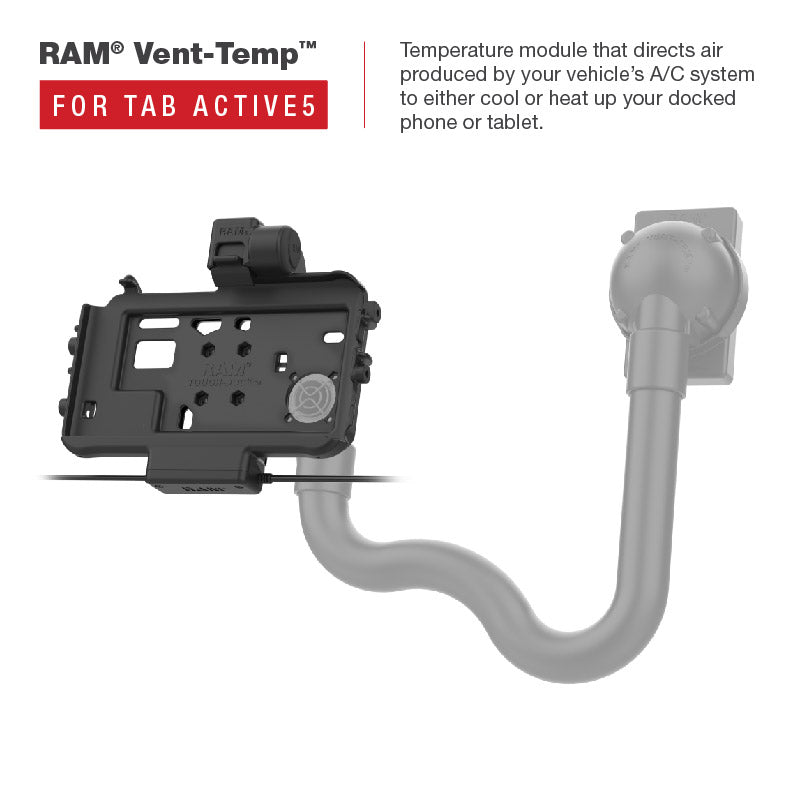

• Slim Thin-Dock profile – 58 mm (2.28") deep with metal reinforcement plate; works with RAM Vent-Temp, RAM NFC Extender and side accessories
• 4-hole AMPS pattern – 30 × 38 mm (1.181" × 1.496") for RAM ball bases and other AMPS components
• Built to last – high-strength composite, 3-year RAM warranty

Compatibility

• Samsung Galaxy Tab Active5 – in Samsung OEM case or RAM Skin
• Samsung Galaxy Tab Active3 – in Samsung OEM case or RAM Skin
• RAM 4-hole AMPS components (30 × 38 mm)

Technical Specifications

More rugged devices for field and fleet work are available in our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
