RAM Mounts Twist-Lock Suction Cup Mount with Round AMPS Plate, B-Size, Long Arm (RAM-B-166-C-202U)

RAM Mounts Twist-Lock Suction Cup Double Ball Mount (RAM-B-166-C-202U) is a complete windshield mount: a Ø 84 mm Twist-Lock suction cup base, a long B-size double socket arm (152 mm overall) and a round 63.5 mm plate with the universal AMPS pattern for the device holder. It holds firmly on glass and smooth, non-porous plastic, including RAM adhesive discs, and comes off without tools – ideal for delivery vans, trucks, cars and boats, or for moving a device between vehicles.

Key Features

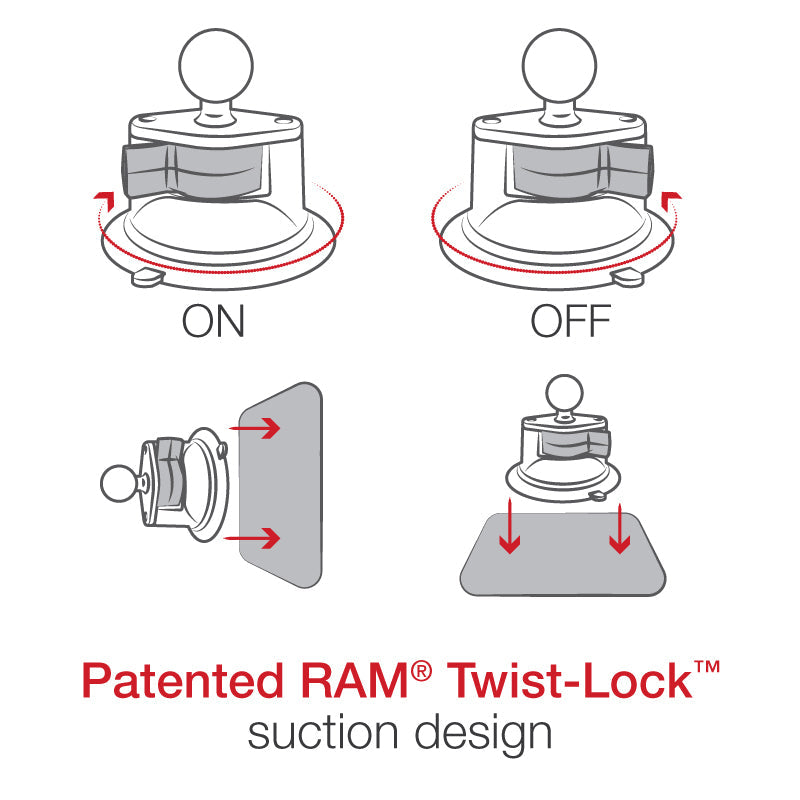

• Twist-Lock suction cup – Ø 84 mm (3.3") cup locks with a twist of the lever onto windshields, glass and other smooth, non-porous surfaces
• Adjustable at both ends – long arm, 152 mm overall; one knob locks both ball joints
• Universal AMPS plate – 63.5 mm round plate with 4-hole AMPS (30 × 38 mm) and 3-hole 120° (Ø 46 mm) patterns
• Load rating – up to 2 lb (0.9 kg) in standard use and 1 lb (0.45 kg) in heavy-duty use; ideal for phones, GPS units, scanners and small tablets
• Materials – powder-coated marine-grade aluminium and high-strength composite
• Lifetime warranty – the suction cup rubber is a wear part and is not covered

Compatibility

• Windshields, glass and smooth non-porous plastic, incl. RAM adhesive discs
• Device holders and cradles with the 4-hole AMPS pattern (30 × 38 mm)
• Accessories with the 3-hole 120° pattern (Ø 46 mm)

Technical Specifications

You will find matching cradles, holders and more RAM mounting parts in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
