RAM Mounts X-Grip Suction Cup Mount for 9"–11" Tablets, B-Size (RAM-B-166-UN9U)

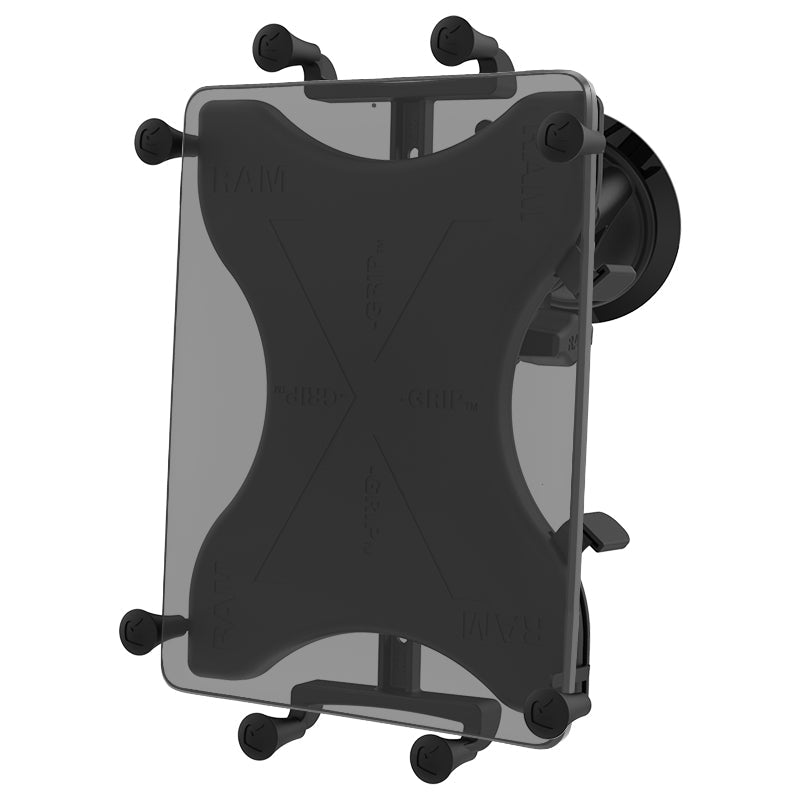

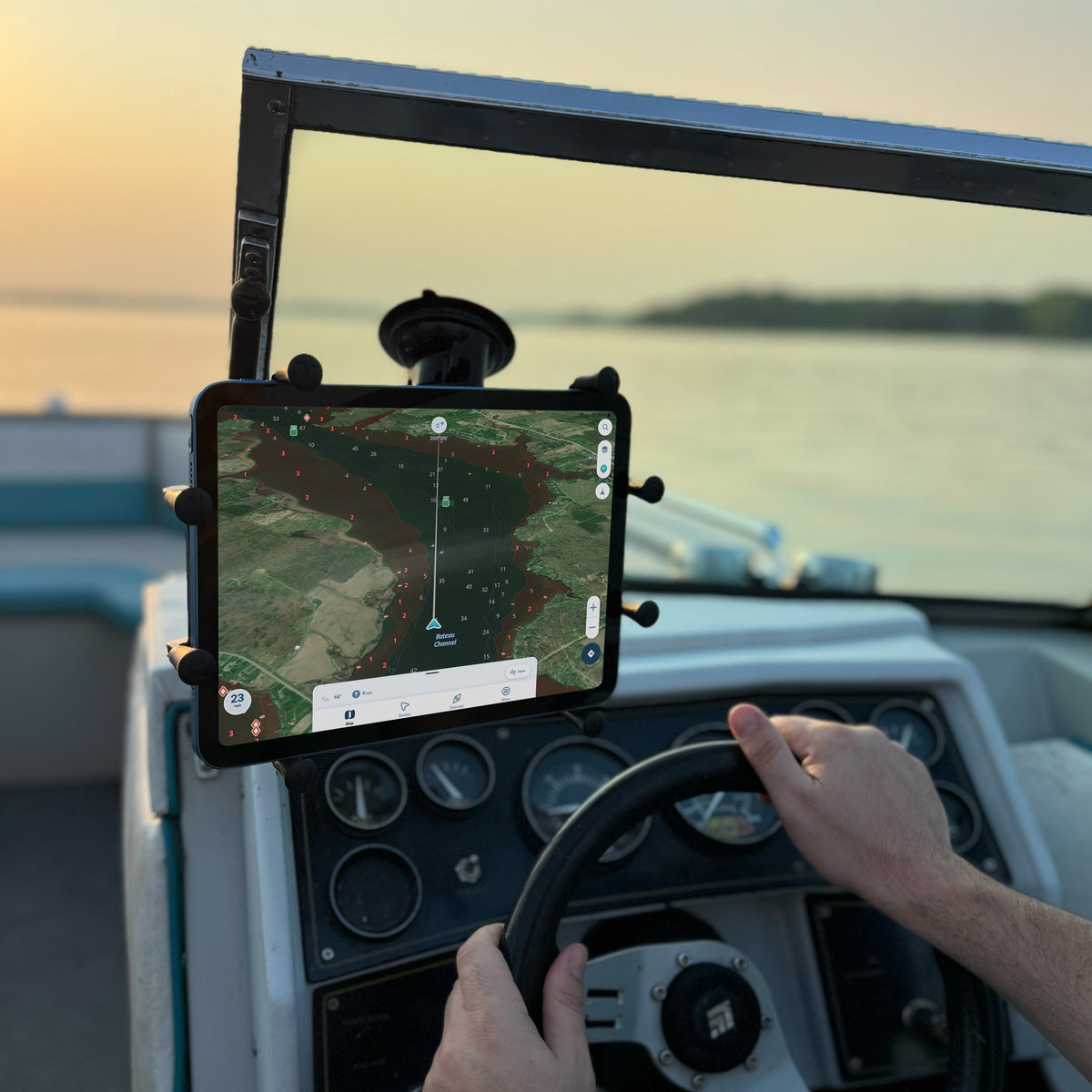

RAM Mounts X-Grip with Twist-Lock Suction Cup Mount for 9"–11" Tablets (RAM-B-166-UN9U) is a complete windshield mount for 9"–11" tablets: a Ø 84 mm Twist-Lock suction cup base, a medium B-size double socket arm and the spring-loaded X-Grip holder, which fits devices 159–206 mm wide and up to 22.2 mm deep. Four rubber-capped legs grip the device securely while leaving the screen and controls free, and grip knobs on the back allow quick release. Ideal for vans, trucks, cars and boats – and easily moved between vehicles.

Key Features

• X-Grip spring-loaded design – four rubber-capped legs expand and contract for a custom fit and leave the device almost uncovered
• Quick release – grip knobs on the back of the cradle release the tablet in seconds

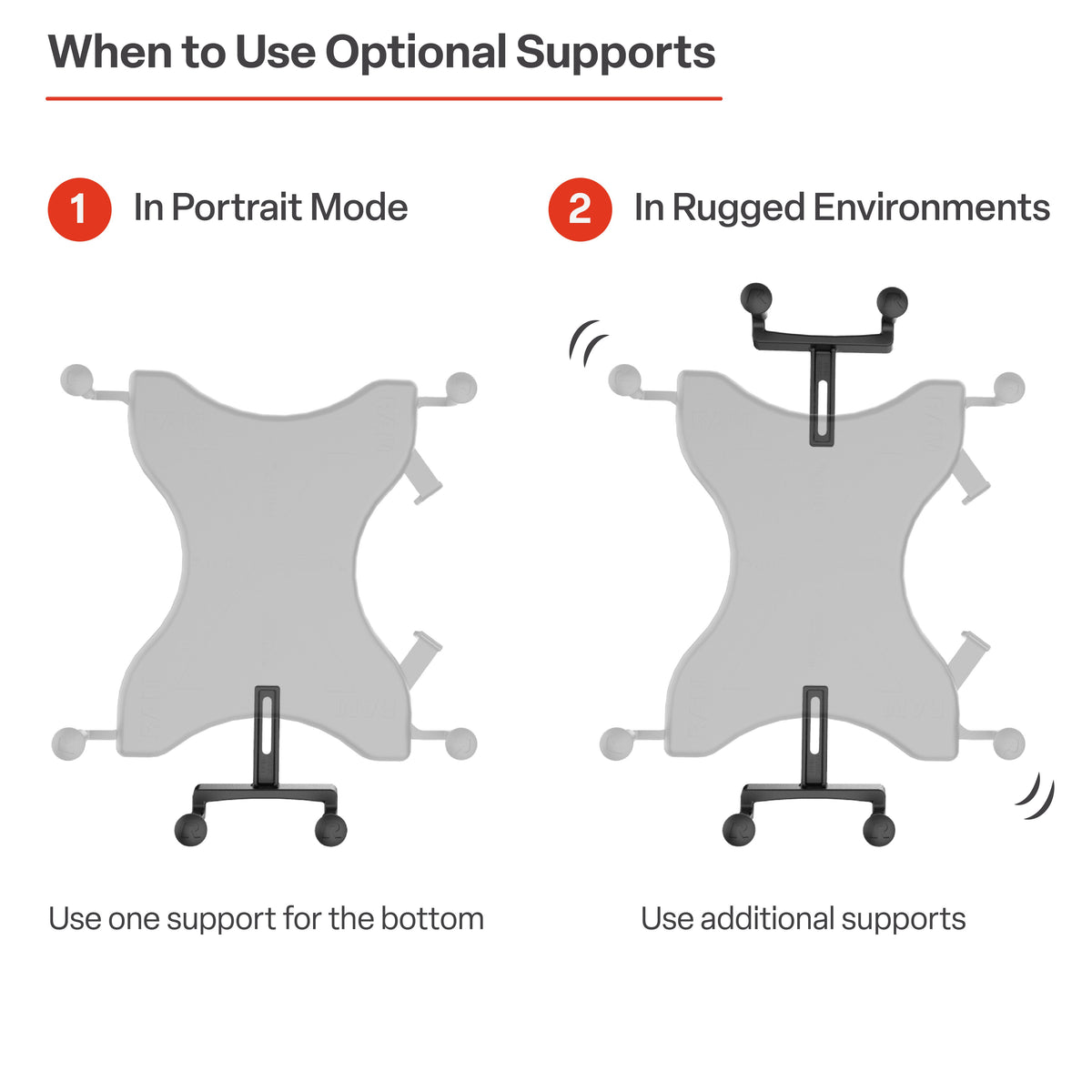

• Bottom support keeper – additional support under the tablet; holder height up to 260 mm with optional supports

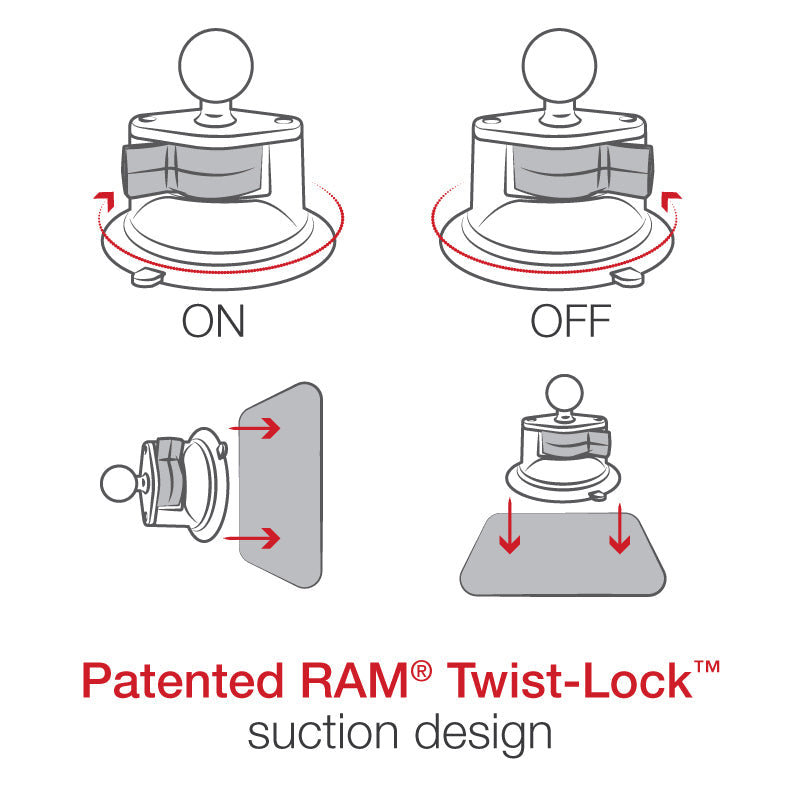

• Twist-Lock suction cup – Ø 84 mm (3.3") cup locks with a twist of the lever onto windshields, glass and other smooth, non-porous surfaces
• Adjustable at both ends – medium arm, 95 mm overall; one knob locks both ball joints
• Works with cases – check the device dimensions with its case, sleeve or skin before ordering
• Lifetime warranty – the suction cup rubber is a wear part and is not covered

Compatibility

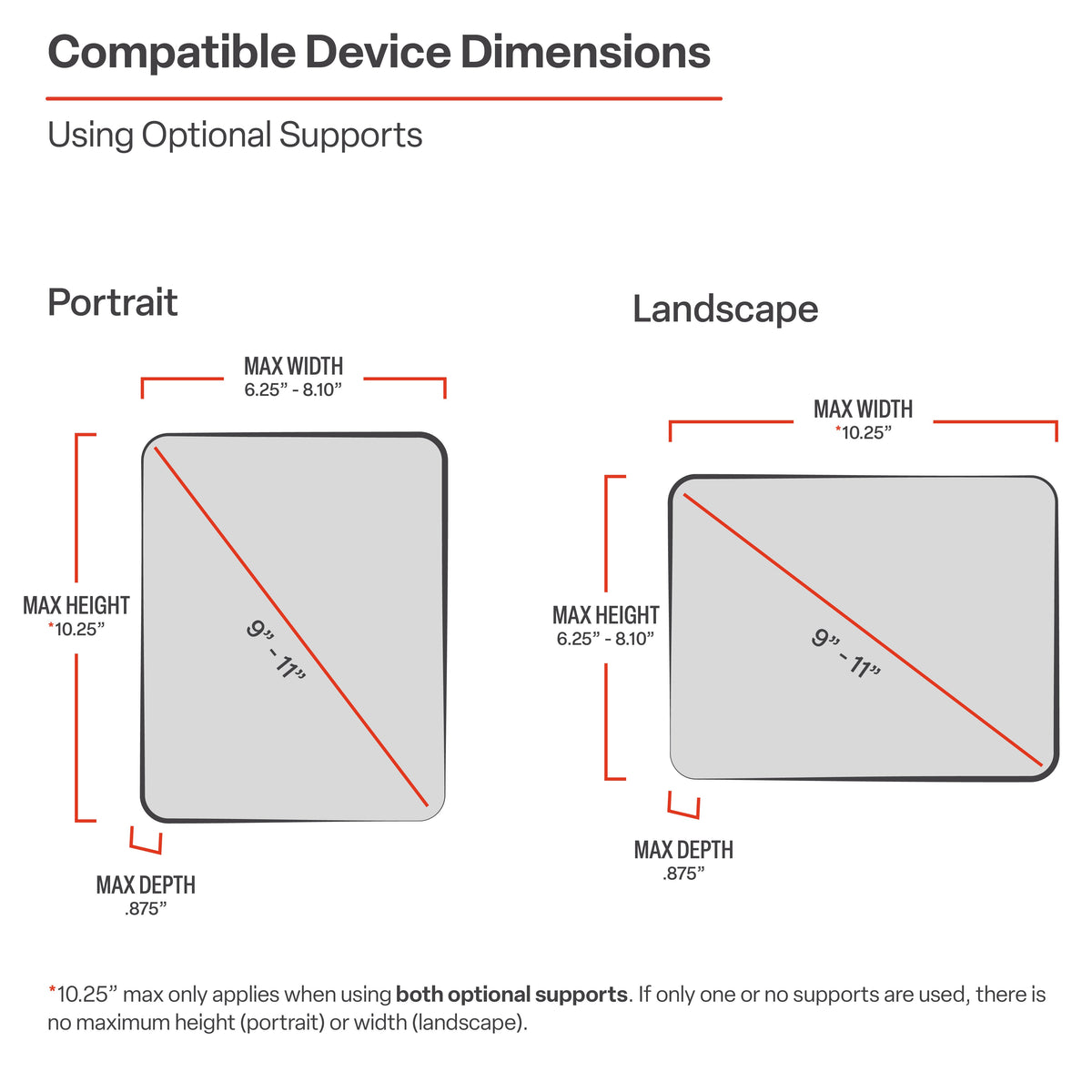

• Most 9"–11" tablets, incl. most 10" tablets with or without sleeve: width 159–206 mm (6.25"–8.1"), height up to 260 mm, depth up to 22.2 mm
• Windshields, glass and smooth non-porous plastic, incl. RAM adhesive discs

Technical Specifications

You will find matching cradles, holders and more RAM mounting parts in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
