RAM Mounts Ball Base with 4-Hole Pattern 1.5" × 4.5" / 38 × 114 mm, C-Size (RAM-202U-25)

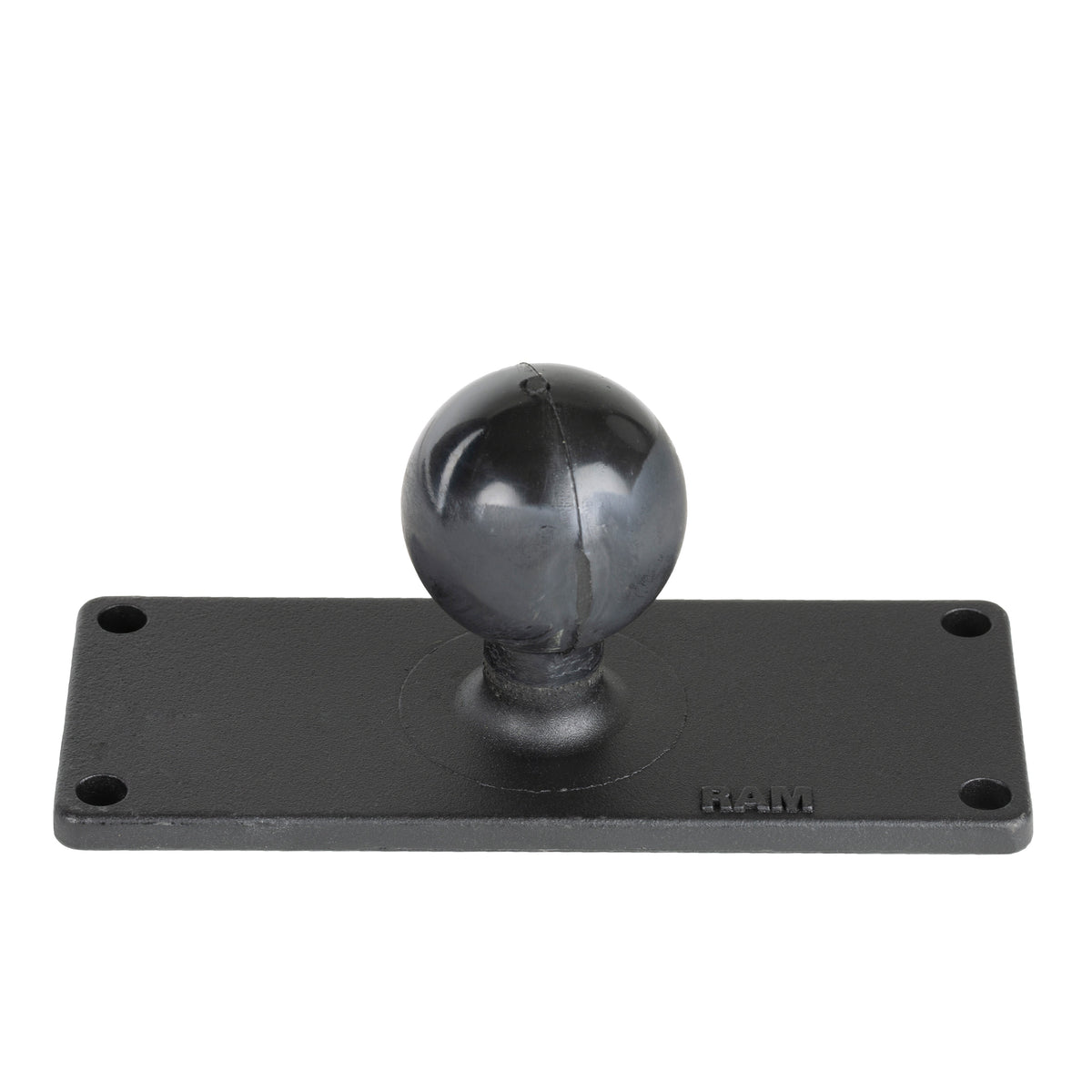

RAM Mounts Ball Base with 4-Hole Pattern 1.5" × 4.5" / 38 × 114 mm, C-Size (RAM-202U-25) combines a RAM C-size (1.5") rubber ball with a 50.8 × 127 mm (2" × 5") rectangular plate made of powder-coated marine-grade aluminium. The plate has a 4-hole pattern of 38.1 × 114.3 mm / 1.5" × 4.5" (centre to centre), so it can be screwed directly onto a flat surface – a dashboard, console, cart, forklift cab or workbench – or onto a holder or accessory with a matching hole pattern. Add any RAM C-size double socket arm and a device holder to complete the mount.

Key Features

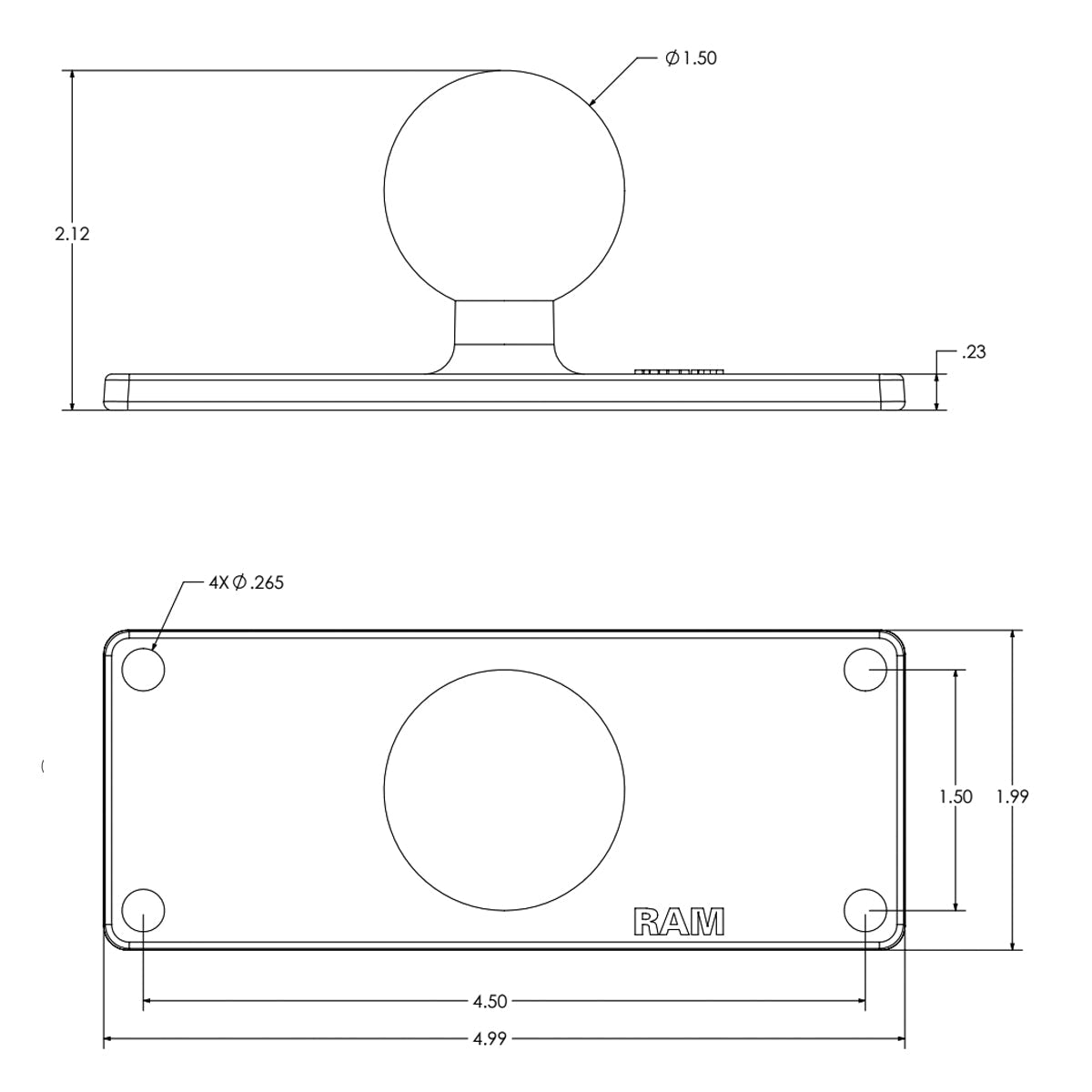

• Rectangular plate – 50.8 × 127 mm (2" × 5") with 4-hole pattern 38.1 × 114.3 mm / 1.5" × 4.5"
• Two uses – drill-down base on a flat surface or adapter for holders with a matching hole pattern
• C-size (1.5") rubber ball – connects to any RAM C-size double socket arm, with near-infinite adjustment
• Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
• Material – powder-coated marine-grade aluminium
• Lifetime warranty – backed by RAM Mounts

Compatibility

• All RAM C-size (1.5") double socket arms
• Holders and accessories with a 4-hole pattern of 38.1 × 114.3 mm / 1.5" × 4.5"
• Flat mounting surfaces (screw-on installation)

Technical Specifications

More RAM ball bases, socket arms and mounting kits are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
