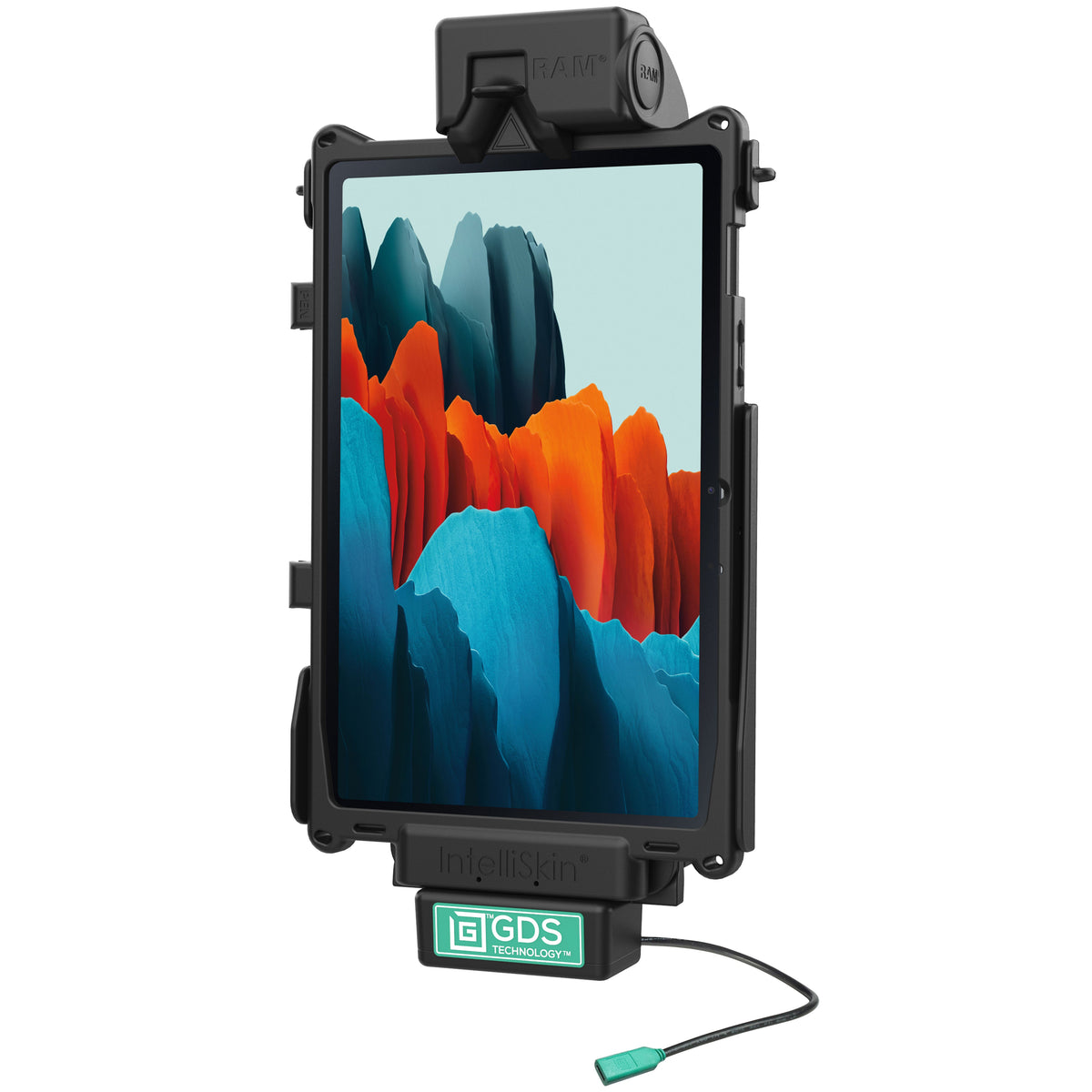

RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – product photo

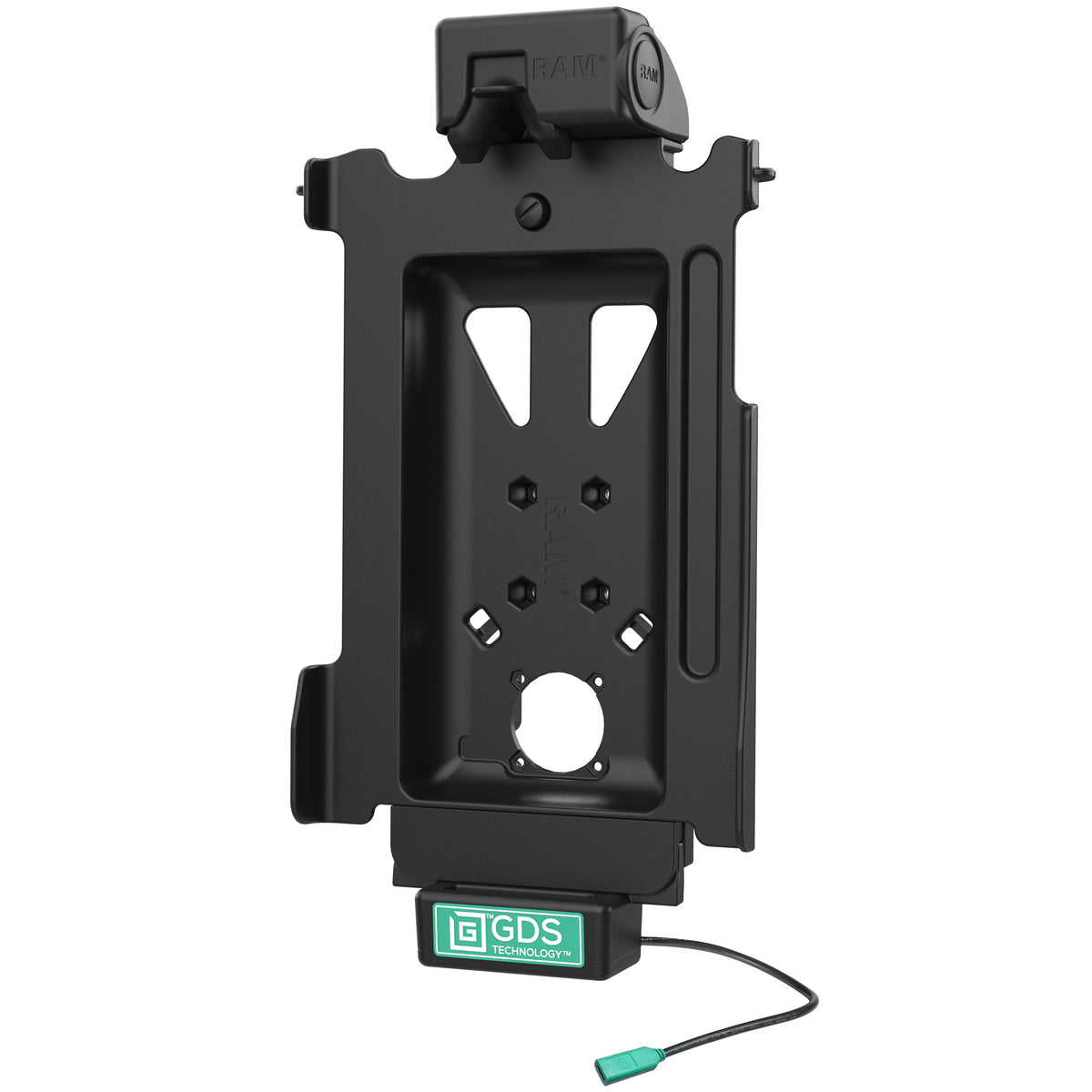

RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – alternative view

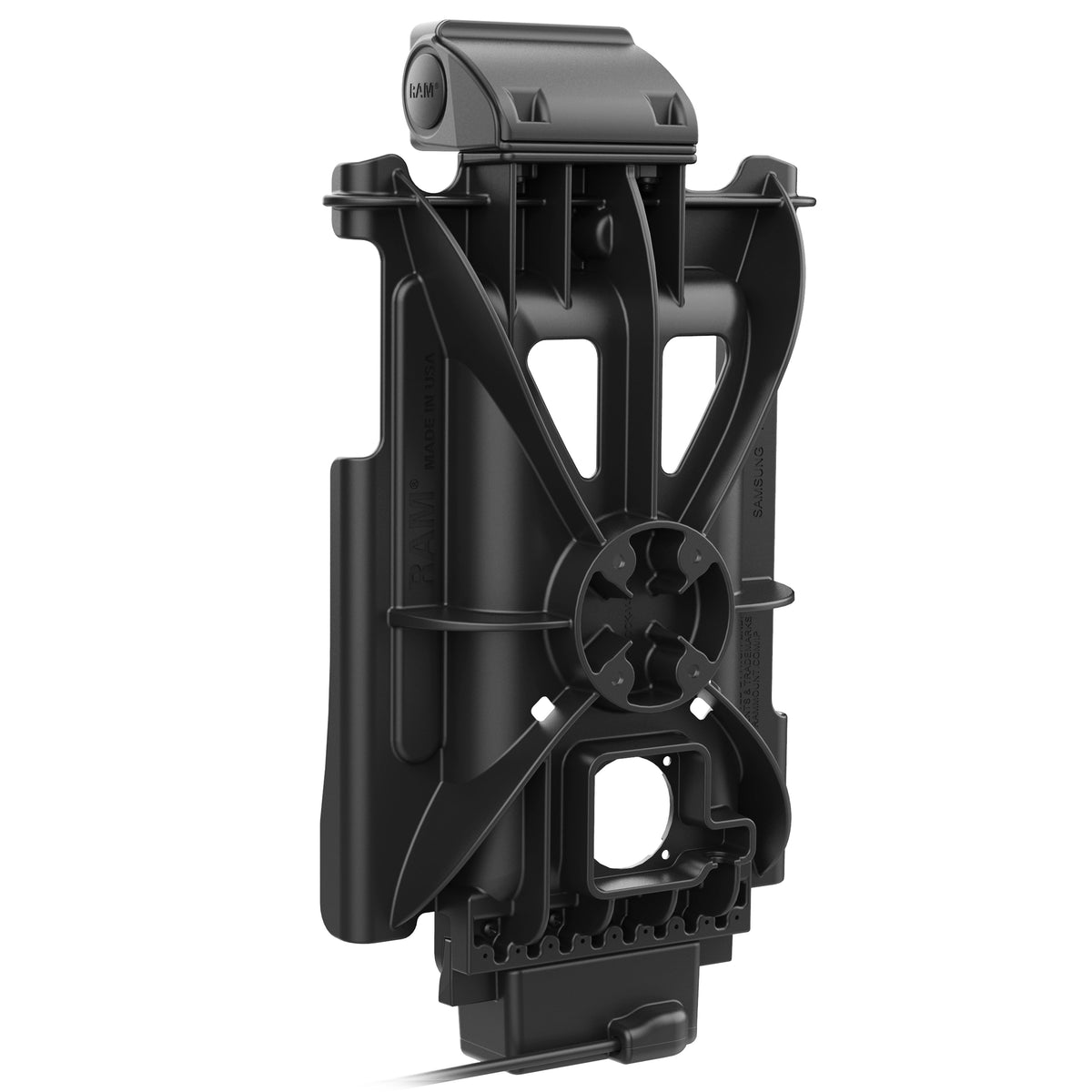

RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – detail view

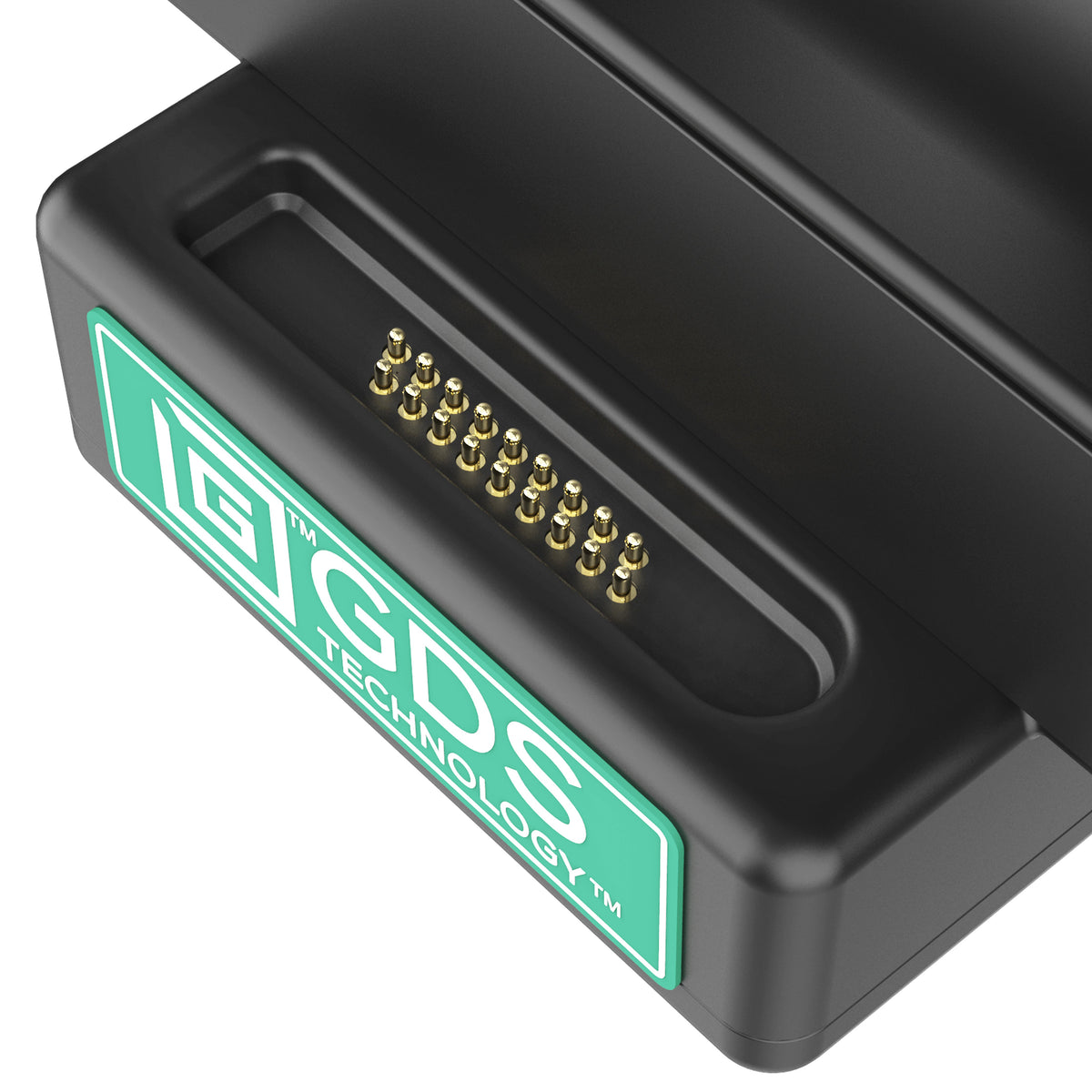

RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – another angle
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – product photo
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – alternative view
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – detail view
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – another angle
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – product photo
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – alternative view
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – detail view
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – another angle
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – product photo
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – alternative view
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – detail view
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – another angle

RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite (RAM-GDS-DOCK-SAM76CU)

859,00 zł +VAT
Locking
Key-lockingLatch
Ports / connector
Power onlyUSB-C 3.1 data
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: Holders
  • Barcode: RAM-GDS-DOCK-SAM76CU
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite – product photo
RAM MOUNT
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite (RAM-GDS-DOCK-SAM76CU)
859,00 zł +VAT

RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite (RAM-GDS-DOCK-SAM76CU) is a spring-loaded vehicle dock from the GDS range for the Samsung Galaxy Tab S7 11", Tab S9, Tab S9 FE, Tab S10 FE and Tab S10 Lite in an IntelliSkin Next Gen protective sleeve – ideal for fleet vehicles, service vans and forklifts. Integrated pogo-pin contacts charge the tablet and sync data at up to 5 Gbps over USB-C 3.1 as soon as it is docked.

📦 What's in the box – RAM-GDS-DOCK-SAM76CU

  • GDS Tough-Dock with USB-C 3.1 – for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite in IntelliSkin Next Gen
  • Mounting hardware – machine screws (4× #8-32 x 5/8") and nyloc nuts (4× #8-32)

💡 To get started, you might also consider the IntelliSkin Next Gen sleeve for Tab S9 & S9 FE, a B-size AMPS ball base with a double socket arm, and a USB-C PD hardwire charger for 10–30 V or 30–64 V vehicle systems.

View accessories →

Key Features

  • Spring-loaded GDS dock – holds the Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite in an IntelliSkin Next Gen sleeve; works with the GDS Hand-Stand hand strap and kickstand
  • USB-C 3.1 charging & data – data sync at up to 5 Gbps via the pogo contacts; output 5–20 V DC / 3 A / 60 W
  • 4-hole AMPS pattern – 30 × 38 mm (1.181" × 1.496"); connects to RAM ball-and-socket mounts via a 4-hole AMPS ball adapter
  • Built to last – high-strength composite, 3-year RAM warranty

Compatibility

  • Samsung Galaxy Tab S7 11" – in IntelliSkin Next Gen sleeve
  • Samsung Galaxy Tab S9 – in IntelliSkin Next Gen sleeve
  • Samsung Galaxy Tab S9 FE – in IntelliSkin Next Gen sleeve
  • Samsung Galaxy Tab S10 FE – in IntelliSkin Next Gen sleeve
  • Samsung Galaxy Tab S10 Lite – in IntelliSkin Next Gen sleeve
  • RAM ball-and-socket systems via a 4-hole AMPS ball adapter (30 × 38 mm)

Technical Specifications

Part Number RAM-GDS-DOCK-SAM76CU
Product Type Spring-loaded GDS Tough-Dock vehicle dock
Compatible Devices Samsung Galaxy Tab S7 11", Samsung Galaxy Tab S9, Samsung Galaxy Tab S9 FE, Samsung Galaxy Tab S10 FE, Samsung Galaxy Tab S10 Lite
Connection 4-hole AMPS, 30 × 38 mm (1.181" × 1.496"); requires a 4-hole AMPS ball adapter
Locking Spring-loaded top latch (non-locking)
Power / Charging USB-C input; output 5–20 V DC / 3 A / 60 W; IntelliSkin Next Gen sleeve required
Data / Peripherals USB-C 3.1, 5 Gbps
Material High-strength composite
Weight 0.61 kg (1.35 lb)
Warranty 3 years (RAM Mounts)
In the Box GDS Tough-Dock with USB-C 3.1, mounting hardware

More rugged devices for field and fleet work are available in our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Available Versions

Part NumberLockingPorts / connectorPrice
RAM Mounts GDS Tough-Dock for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite (RAM-GDS-DOCK-SAM76CPU) RAM-GDS-DOCK-SAM76CPULatchPower only725,00 zł+VATOut of Stock View
RAM Mounts GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite (RAM-GDS-DOCK-SAM76CU) RAM-GDS-DOCK-SAM76CUViewingLatchUSB-C 3.1 data859,00 zł+VATOut of Stock
RAM Mounts Locking GDS Tough-Dock for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite (RAM-GDS-DOCKL-SAM76CPU) RAM-GDS-DOCKL-SAM76CPUKey-lockingPower only801,00 zł+VATOut of Stock View
RAM Mounts Locking GDS Tough-Dock with USB-C 3.1 for Samsung Tab S7/S9/S9 FE/S10 FE/S10 Lite (RAM-GDS-DOCKL-SAM76CU) RAM-GDS-DOCKL-SAM76CUKey-lockingUSB-C 3.1 data933,00 zł+VATOut of Stock View
