RAM Mounts Key-Locking Form-Fit Powered Dock (USB-A) for Zebra TC22 & TC27 with Boot (RAM-HOL-ZE24PLU)

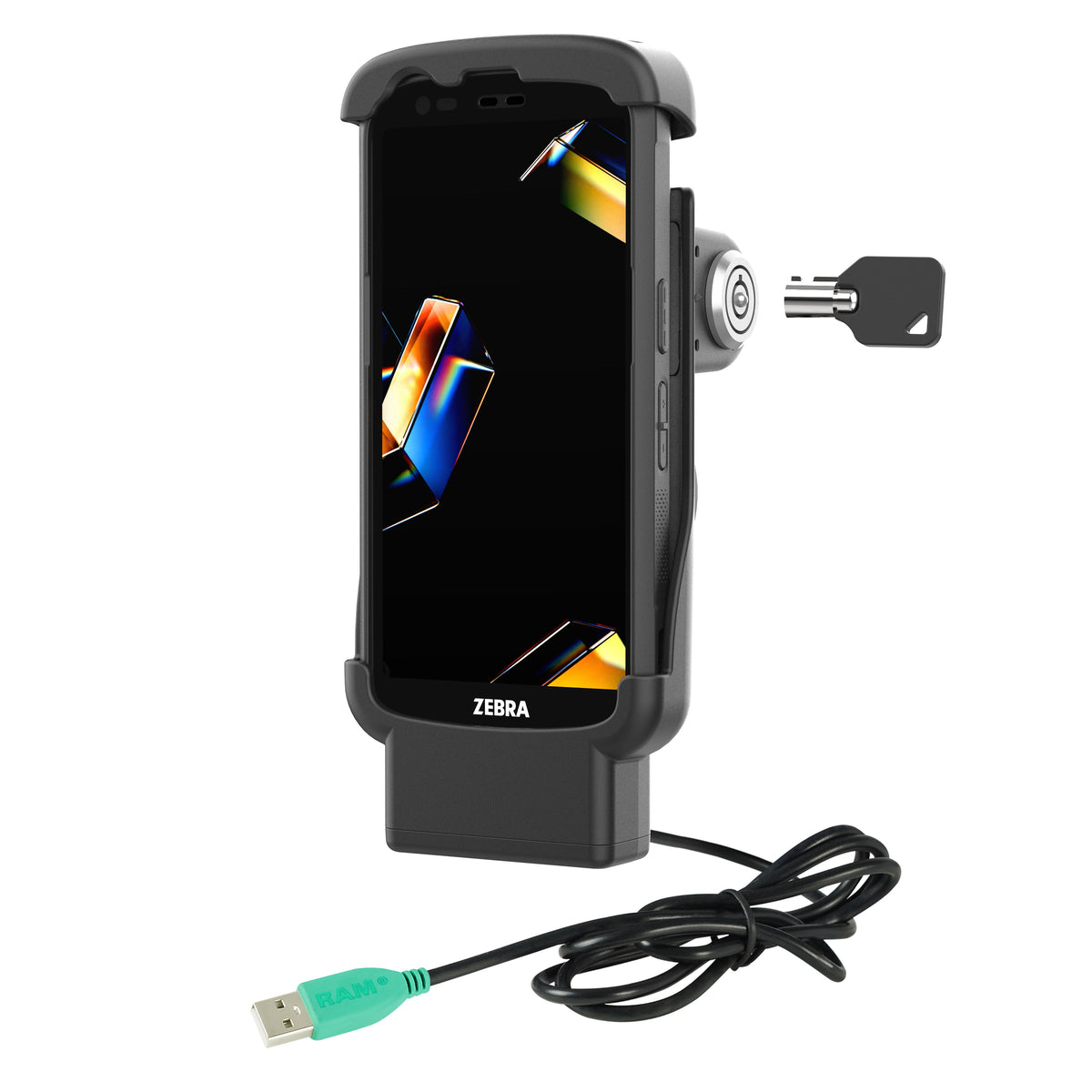

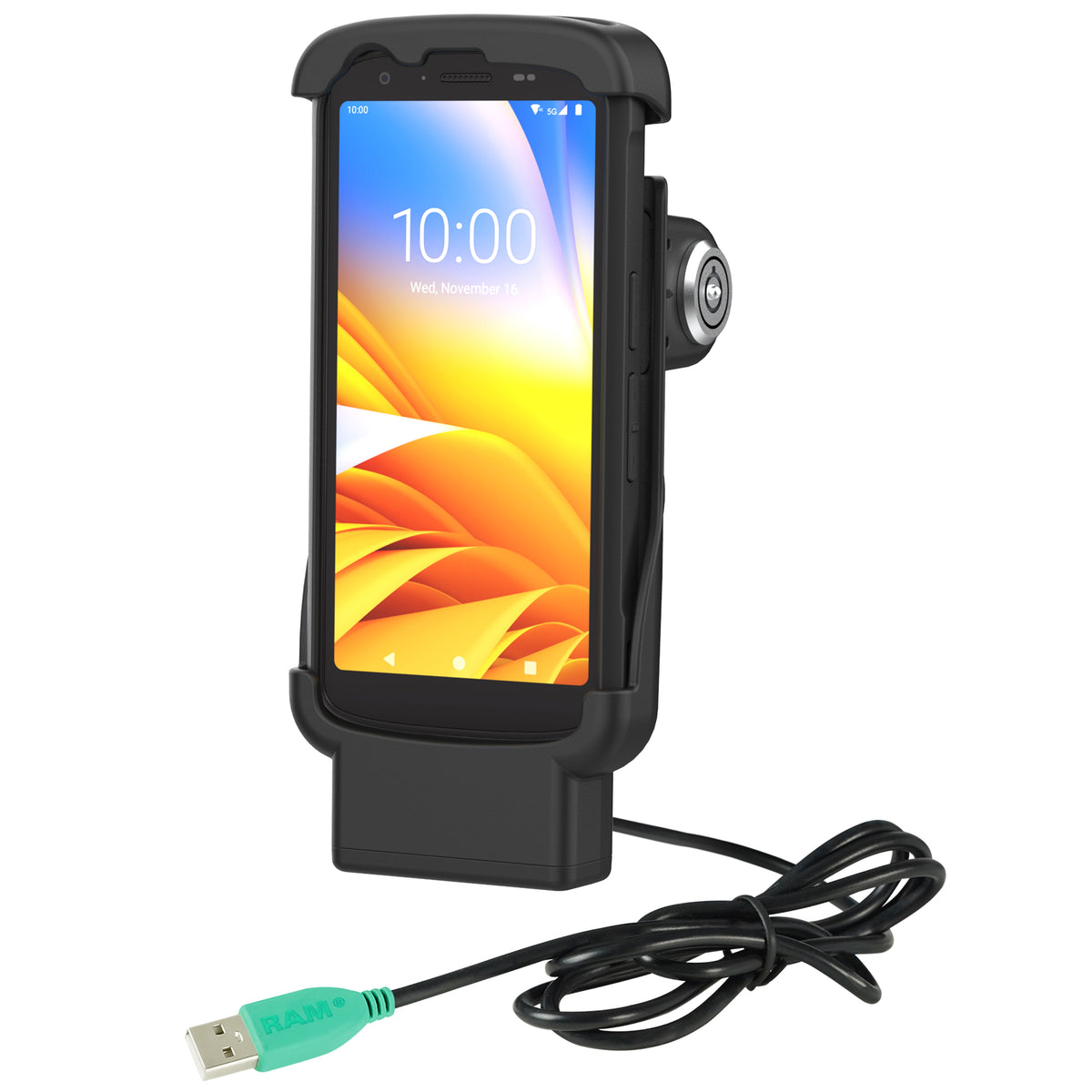

RAM Mounts Key-Locking Form-Fit Powered Dock (USB-A) (RAM-HOL-ZE24PLU) holds the Zebra TC22, TC27 or TC201 handheld computer with the Zebra Rugged Boot fitted – in delivery vehicles, forklifts, warehouse carts or at a counter. The spring-loaded cradle grips the device firmly, an integrated stylus holder keeps the stylus at hand and the Zebra hand strap and extended battery pack can stay on. Power comes in through a 1.25 m USB-A cable, and the device charges via pogo-pin contacts as soon as it is docked. A key lock (2 keys included) protects the device against theft.

Key Features

• Spring-loaded Form-Fit cradle – shaped for the Zebra TC22, TC27 and TC201 with the Rugged Boot

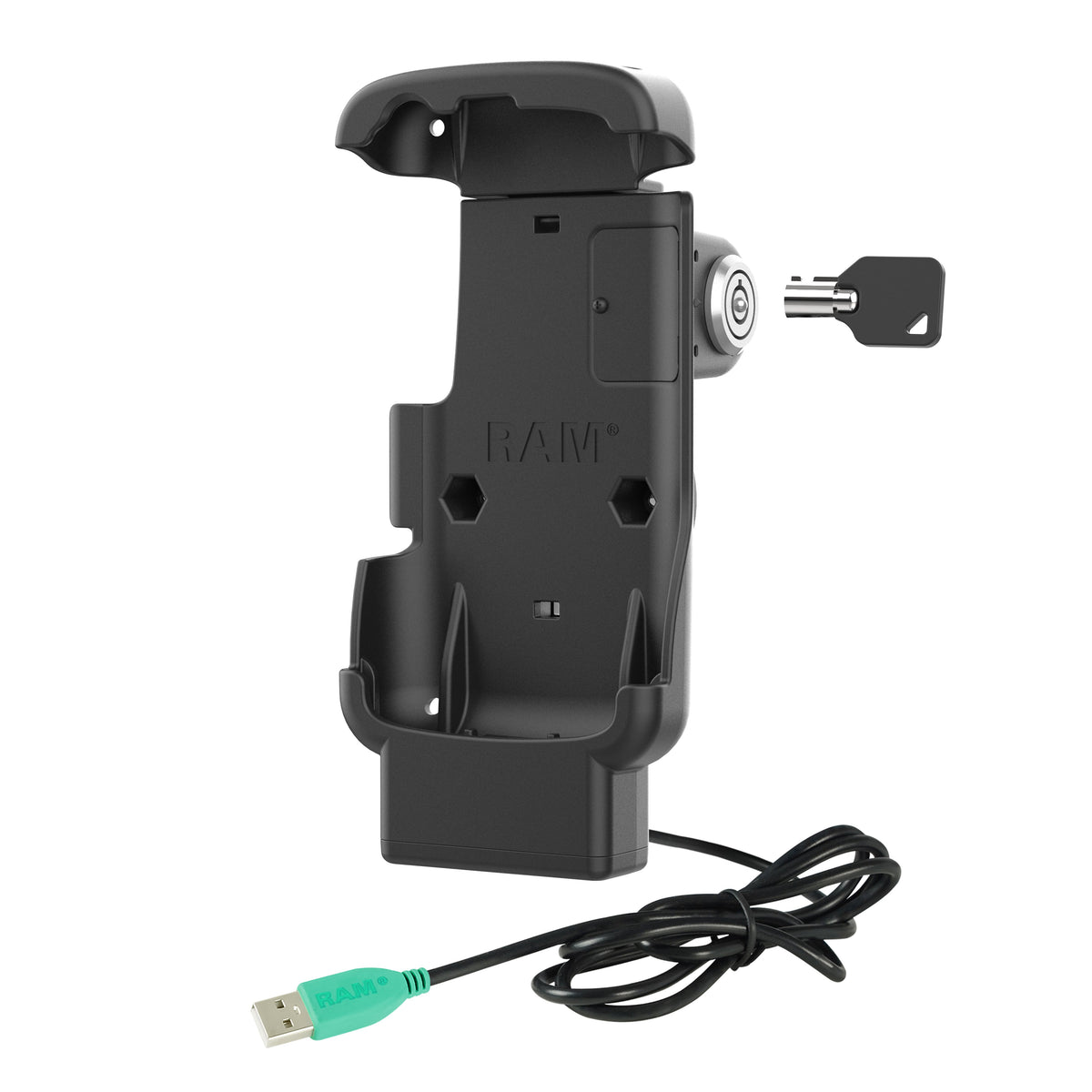

• Key lock – deters theft; 2 keys included

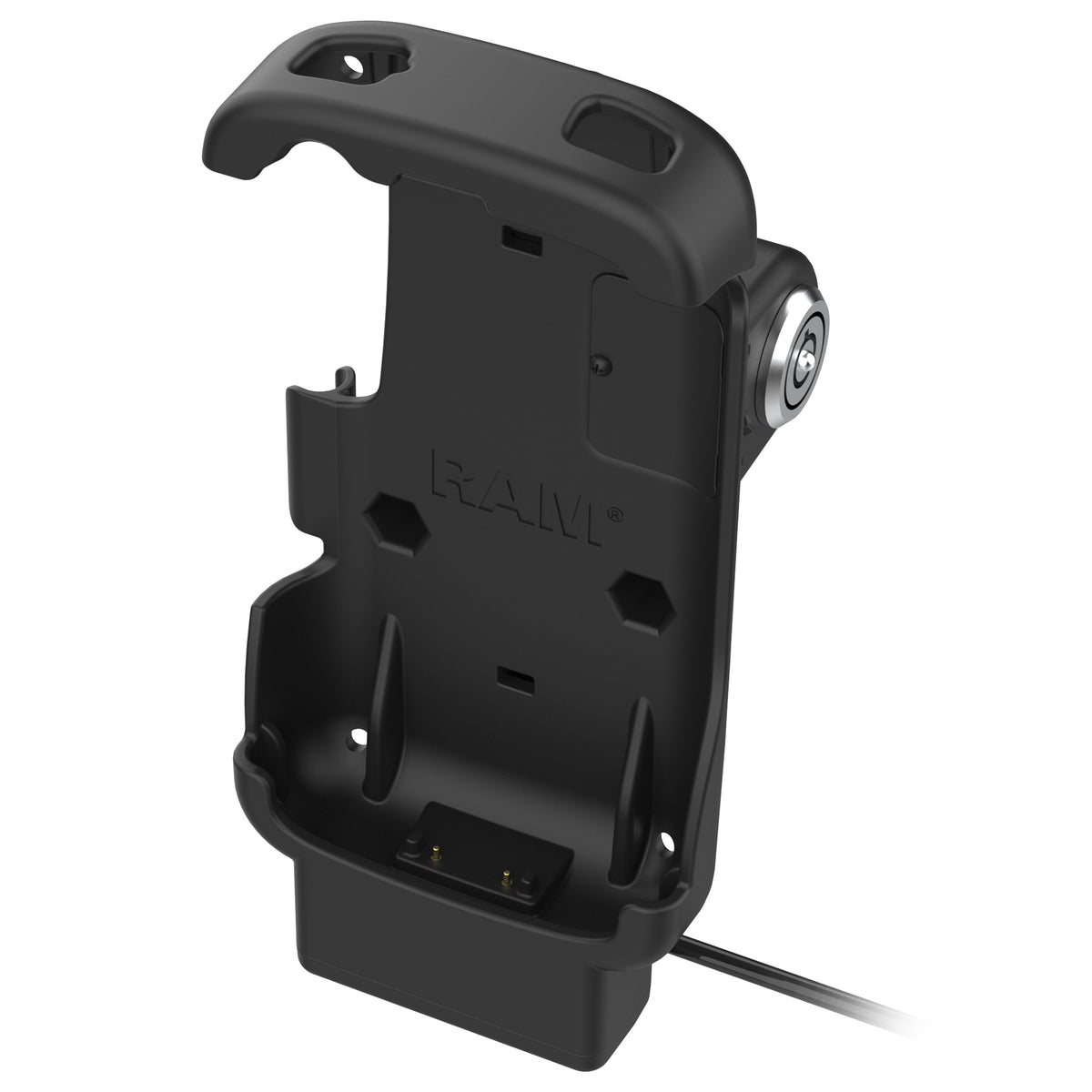

• Charging via pogo pins – USB-A input on a 1.25 m cable; power source sold separately

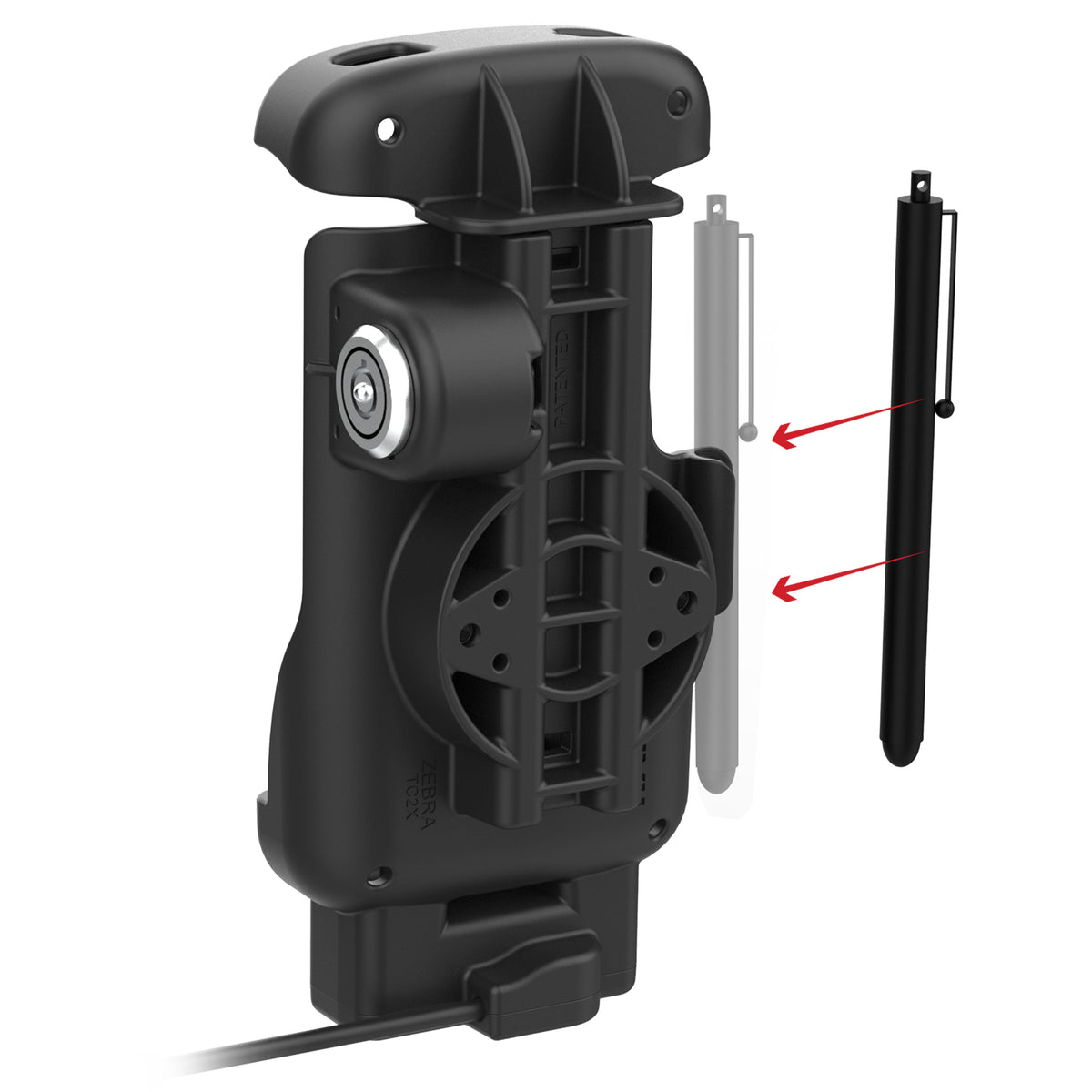

• Stylus holder & hand strap – integrated stylus holder on the side; the Zebra hand strap and extended battery pack fit
• 2-hole AMPS pattern – 48.6 mm (1.912") diamond pattern for RAM B- or C-size diamond ball bases and double socket arms
• Durable build – high-strength composite; 3-year RAM warranty

Compatibility

• Zebra TC22 (with Rugged Boot)
• Zebra TC27 (with Rugged Boot)
• Zebra TC201 (with Rugged Boot)
• RAM B- or C-size diamond ball bases (2-hole AMPS, 48.6 mm)

Technical Specifications

You will find the devices and more matching accessories in our Zebra TC22 and Zebra TC27 collections. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
