RAM Mounts Locking GDS Cool-Dock with Fan for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCKLF-SAM78CPU)
Regular price
995,00 zł +VAT

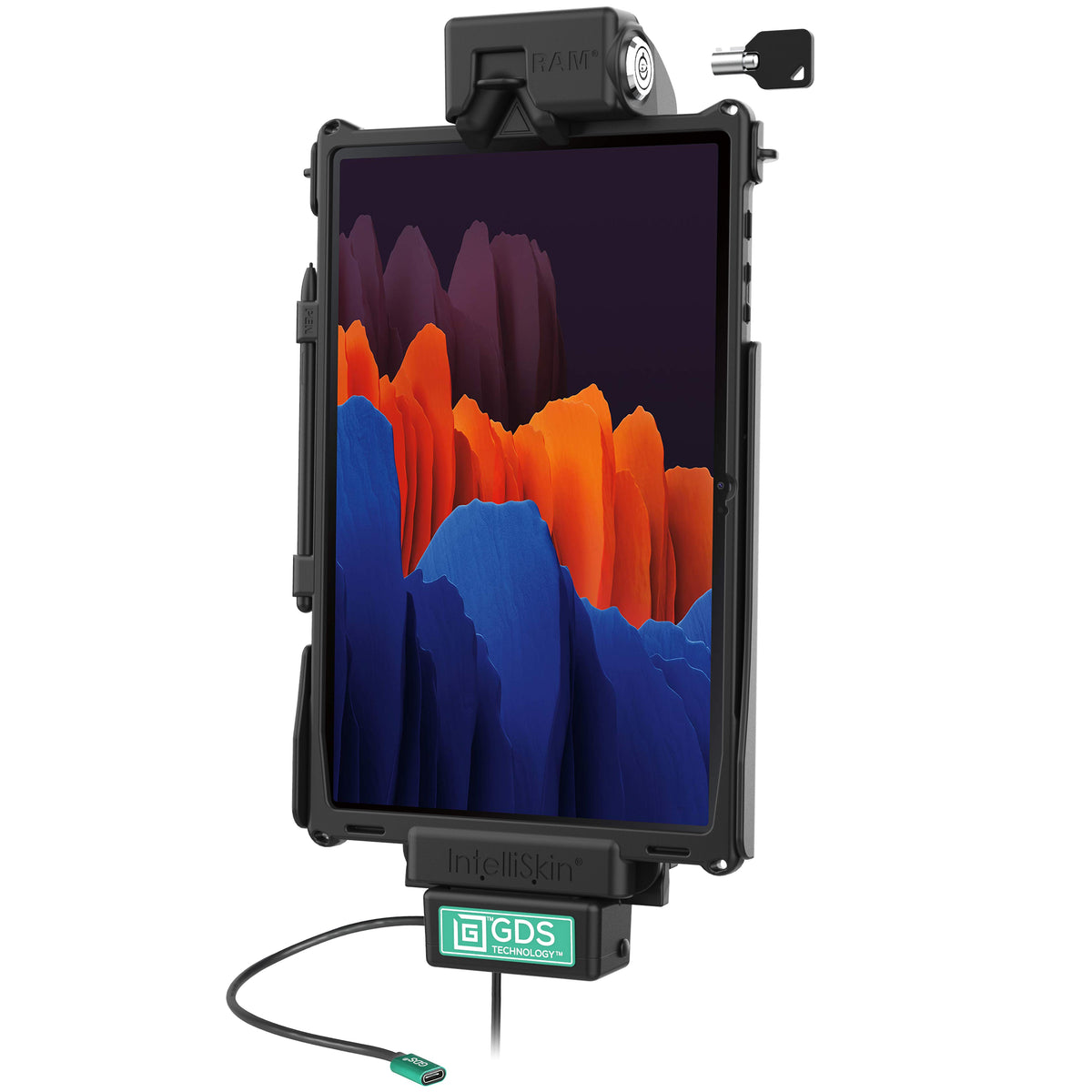

RAM Mounts Locking GDS Cool-Dock with Fan for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE (RAM-GDS-DOCKLF-SAM78CPU) is a key-locking GDS Cool-Dock: a spring-loaded Tough-Dock vehicle dock upgraded with a built-in 12 V DC axial cooling fan, made for the Samsung Galaxy Tab S10+, Tab S9+, Tab S9 FE+, Tab S8+, Tab S7+ 12.4" (SM-T970) and Tab S7 FE (SM-T736B) in an IntelliSkin Next Gen protective sleeve. Integrated pogo-pin contacts provide high-speed charging as soon as the tablet is docked; power comes in through a USB-C connector in the bottom docking cup. The fan is wired via a 2.2 m hardwire cable with SAE quick disconnect and draws heat away from the tablet in hot cabs.
📦 What's in the box – RAM-GDS-DOCKLF-SAM78CPU
- Locking GDS Cool-Dock with Fan – for Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE in IntelliSkin Next Gen, built-in 12 V DC fan with 2.2 m hardwire cable
- 2 keys – for the key lock
- Mounting hardware – machine screws (4× #8-32 x 5/8") and nyloc nuts (4× #8-32)
💡 To get started, you might also consider the IntelliSkin Next Gen sleeve for Tab S10+, S9+ & S9 FE+, a B-size AMPS ball base with a double socket arm, and a USB-C PD hardwire charger for 10–30 V or 30–64 V vehicle systems.
Key Features
- Spring-loaded GDS dock – holds the Samsung Tab S10+/S9+/S9 FE+/S8+/S7+/S7 FE in an IntelliSkin Next Gen sleeve; works with the GDS Hand-Stand hand strap and kickstand

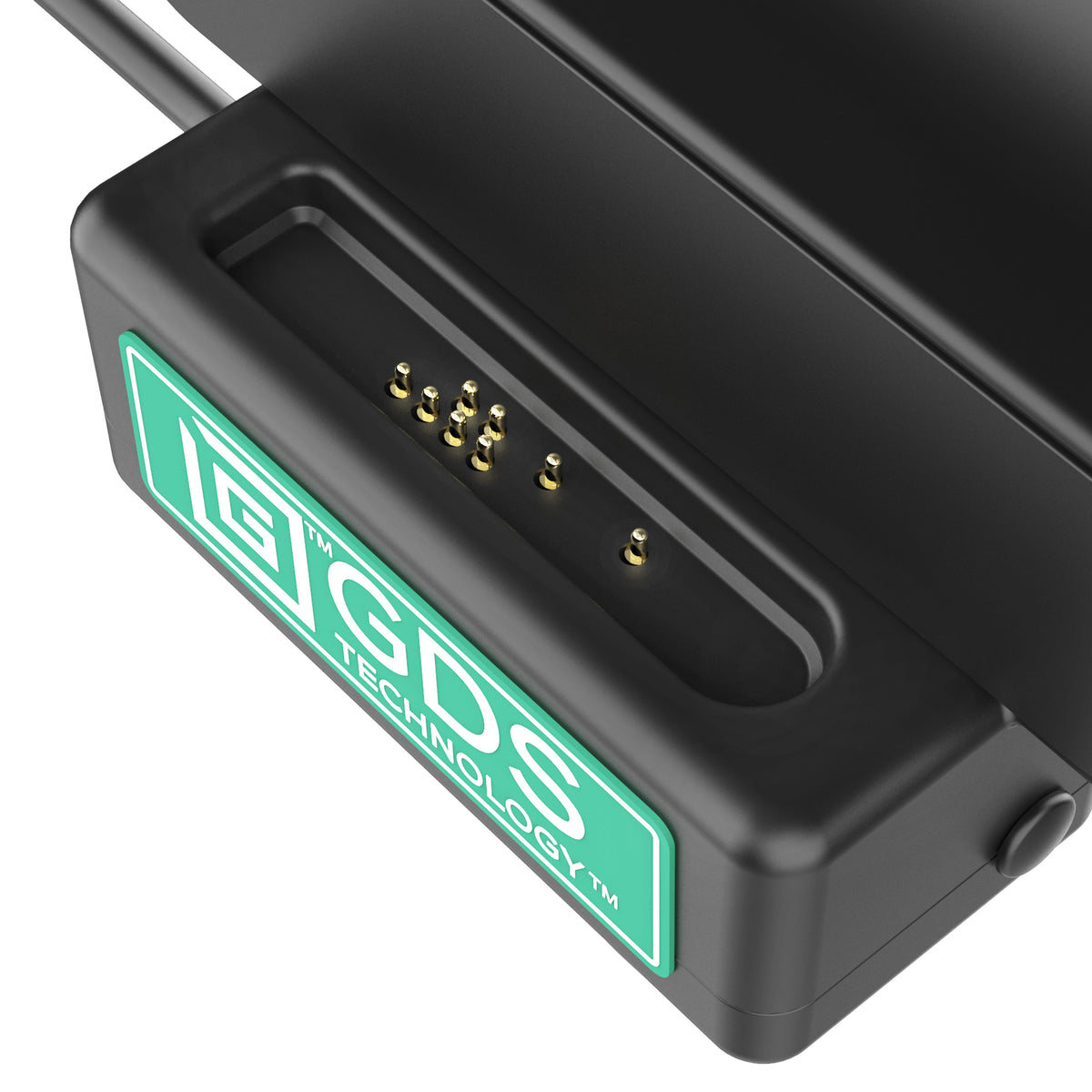

- High-speed charging – pogo-pin contacts, USB-C input in the docking cup; output 5–20 V DC / 3 A / 60 W

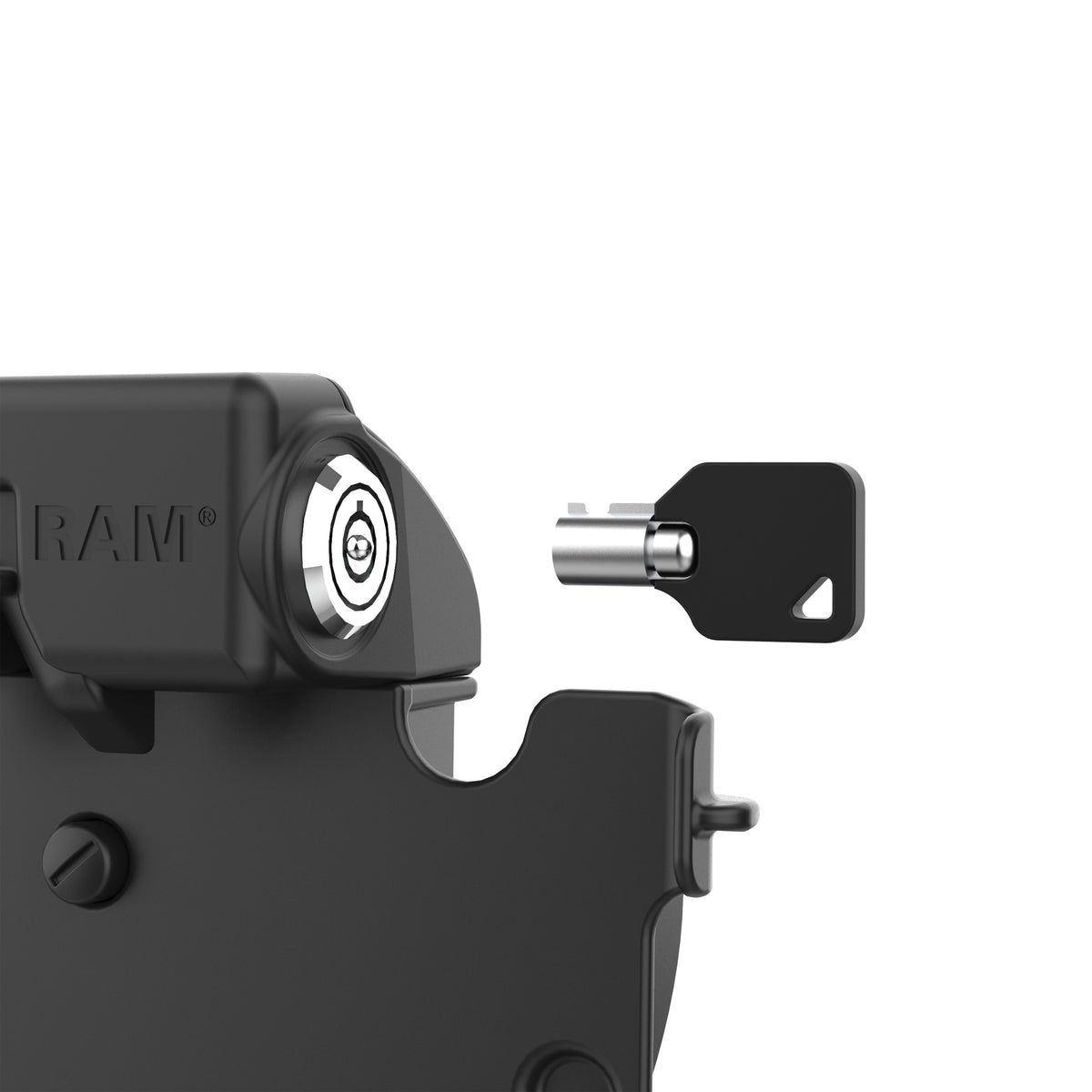

- Key lock – secures the tablet in the dock and deters theft; 2 keys included

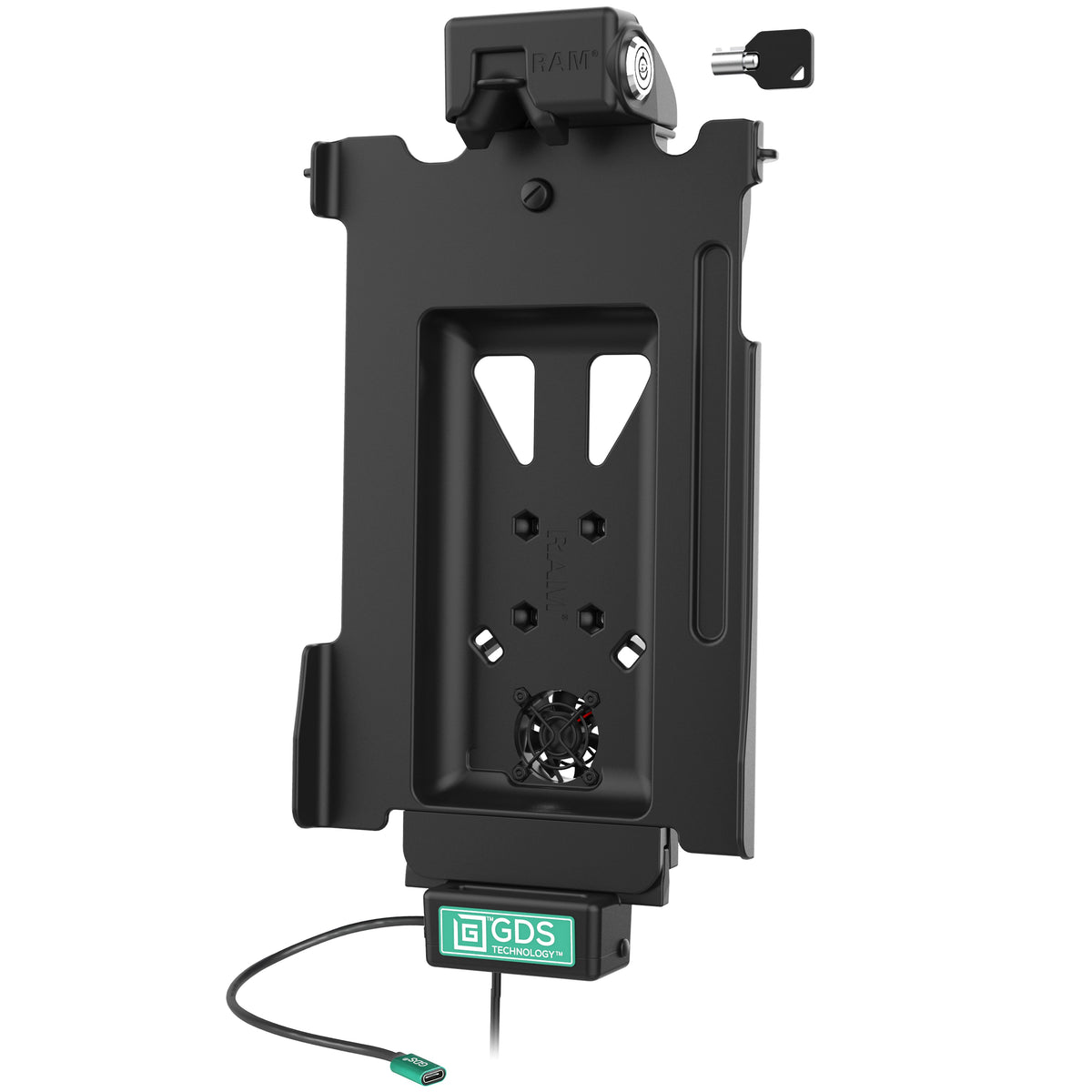

- Built-in cooling fan – 12 V DC axial fan with 2.2 m hardwire cable and SAE quick disconnect

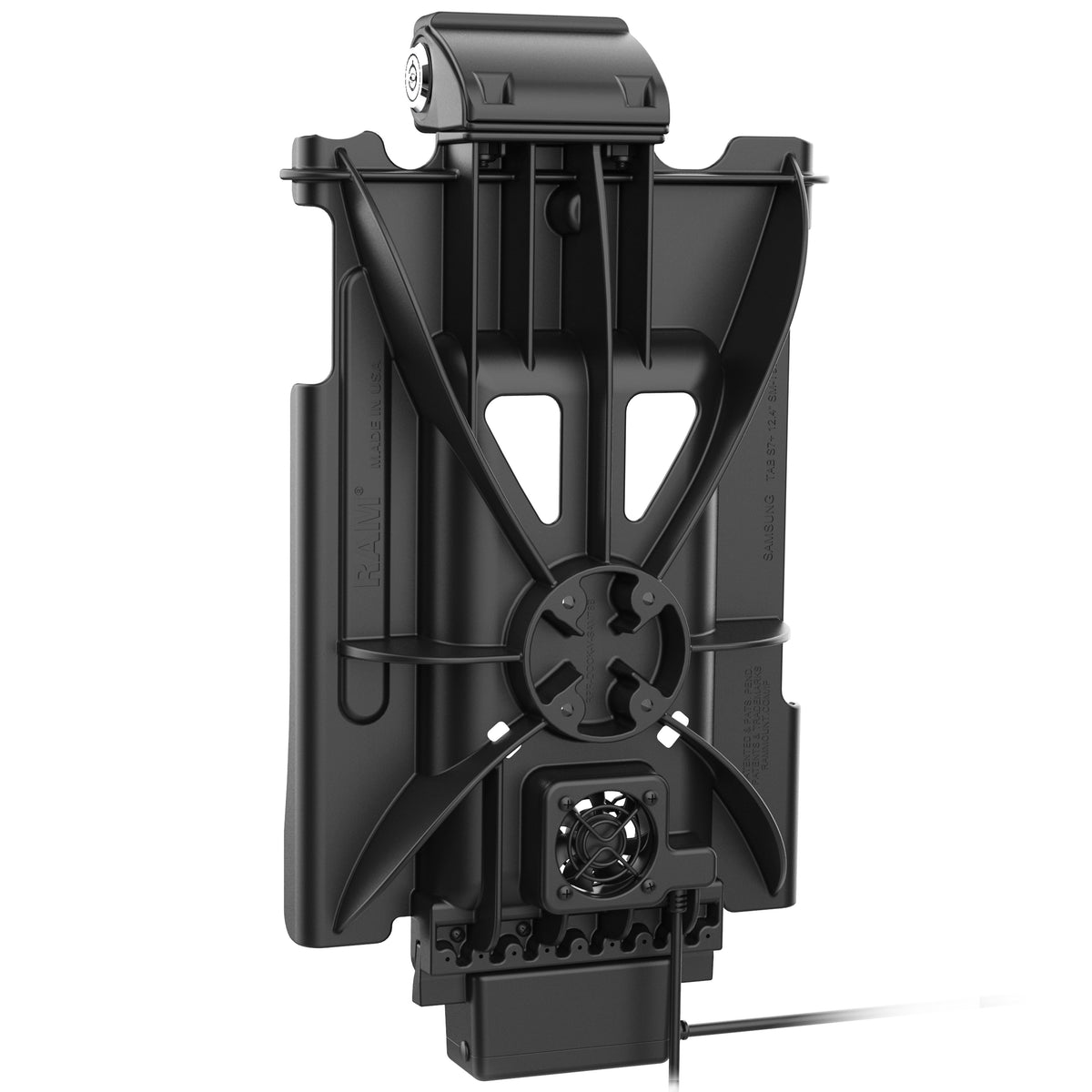

- 4-hole AMPS pattern – 30 × 38 mm (1.181" × 1.496"); connects to RAM ball-and-socket mounts via a 4-hole AMPS ball adapter
- Built to last – high-strength composite, 3-year RAM warranty
Compatibility
- Samsung Galaxy Tab S10+ – in IntelliSkin Next Gen sleeve
- Samsung Galaxy Tab S9+ – in IntelliSkin Next Gen sleeve
- Samsung Galaxy Tab S9 FE+ – in IntelliSkin Next Gen sleeve
- Samsung Galaxy Tab S8+ – in IntelliSkin Next Gen sleeve
- Samsung Galaxy Tab S7+ 12.4" (SM-T970) – in IntelliSkin Next Gen sleeve
- Samsung Galaxy Tab S7 FE (SM-T736B) – in IntelliSkin Next Gen sleeve
- RAM ball-and-socket systems via a 4-hole AMPS ball adapter (30 × 38 mm)
Technical Specifications
| Part Number | RAM-GDS-DOCKLF-SAM78CPU |
|---|---|
| Product Type | GDS Cool-Dock vehicle dock with cooling fan |
| Compatible Devices | Samsung Galaxy Tab S10+, Samsung Galaxy Tab S9+, Samsung Galaxy Tab S9 FE+, Samsung Galaxy Tab S8+, Samsung Galaxy Tab S7+ 12.4" (SM-T970), Samsung Galaxy Tab S7 FE (SM-T736B) |
| Connection | 4-hole AMPS, 30 × 38 mm (1.181" × 1.496"); requires a 4-hole AMPS ball adapter |
| Locking | Key lock (2 keys included) |
| Power / Charging | USB-C input; output 5–20 V DC / 3 A / 60 W; IntelliSkin Next Gen sleeve required; fan: 12 V DC, 2.2 m hardwire cable with SAE quick disconnect |
| Material | High-strength composite |
| Weight | 0.84 kg (1.85 lb) |
| Warranty | 3 years (RAM Mounts) |
| In the Box | Locking GDS Cool-Dock with Fan, 2 keys, mounting hardware |
More rugged devices for field and fleet work are available in our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Mount type | Locking | Ports / connector | Price | ||
|---|---|---|---|---|---|---|
 |
RAM-GDS-DOCK-SAM78CPU | GDS Tough-Dock | Latch | Power only | 794,00 zł+VATIn Stock | |
 |
RAM-GDS-DOCK-SAM78CU | GDS Tough-Dock | Latch | USB-C 3.1 data | 898,00 zł+VATOut of Stock | View |
 |
RAM-GDS-DOCKF-SAM78CPU | GDS Cool-Dock | Latch | Power only | 994,00 zł+VATOut of Stock | View |
 |
RAM-GDS-DOCKL-SAM78CPU | GDS Tough-Dock | Key-locking | Power only | 821,00 zł+VATOut of Stock | View |
 |
RAM-GDS-DOCKL-SAM78CU | GDS Tough-Dock | Key-locking | USB-C 3.1 data | 969,00 zł+VATOut of Stock | View |
 |
RAM-GDS-DOCKLF-SAM78CPUViewing | GDS Cool-Dock | Key-locking | Power only | 995,00 zł+VATOut of Stock |
