RAM Mounts GDS Tough-Dock with NFC Extender for Samsung Tab Active5 & 3 (RAM-GDS-DOCK-SAM62CP-NFCU)

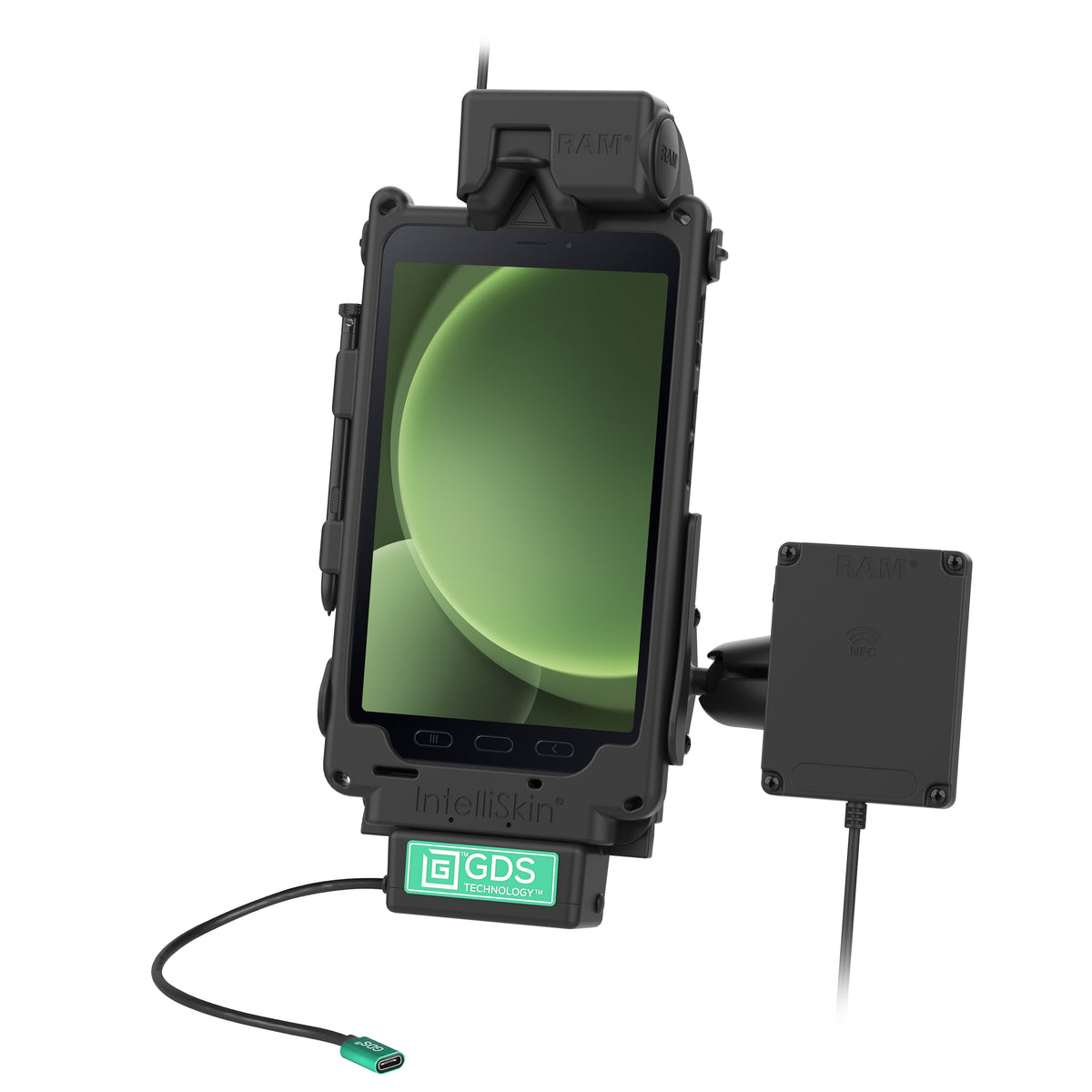

RAM Mounts GDS Tough-Dock with NFC Extender for Samsung Tab Active5 & 3 (RAM-GDS-DOCK-SAM62CP-NFCU) is a spring-loaded vehicle dock from the GDS range for the Samsung Galaxy Tab Active5 and Tab Active3 in an IntelliSkin Next Gen protective sleeve – ideal for fleet vehicles, service vans and forklifts. Integrated pogo-pin contacts provide high-speed charging as soon as the tablet is docked; power comes in through a USB-C connector in the bottom docking cup. The integrated RAM NFC Extender relays the tablet's NFC reader, so cards, tags and buttons can be read for tap-to-pay, asset tracking or time and attendance while the tablet stays docked.

Key Features

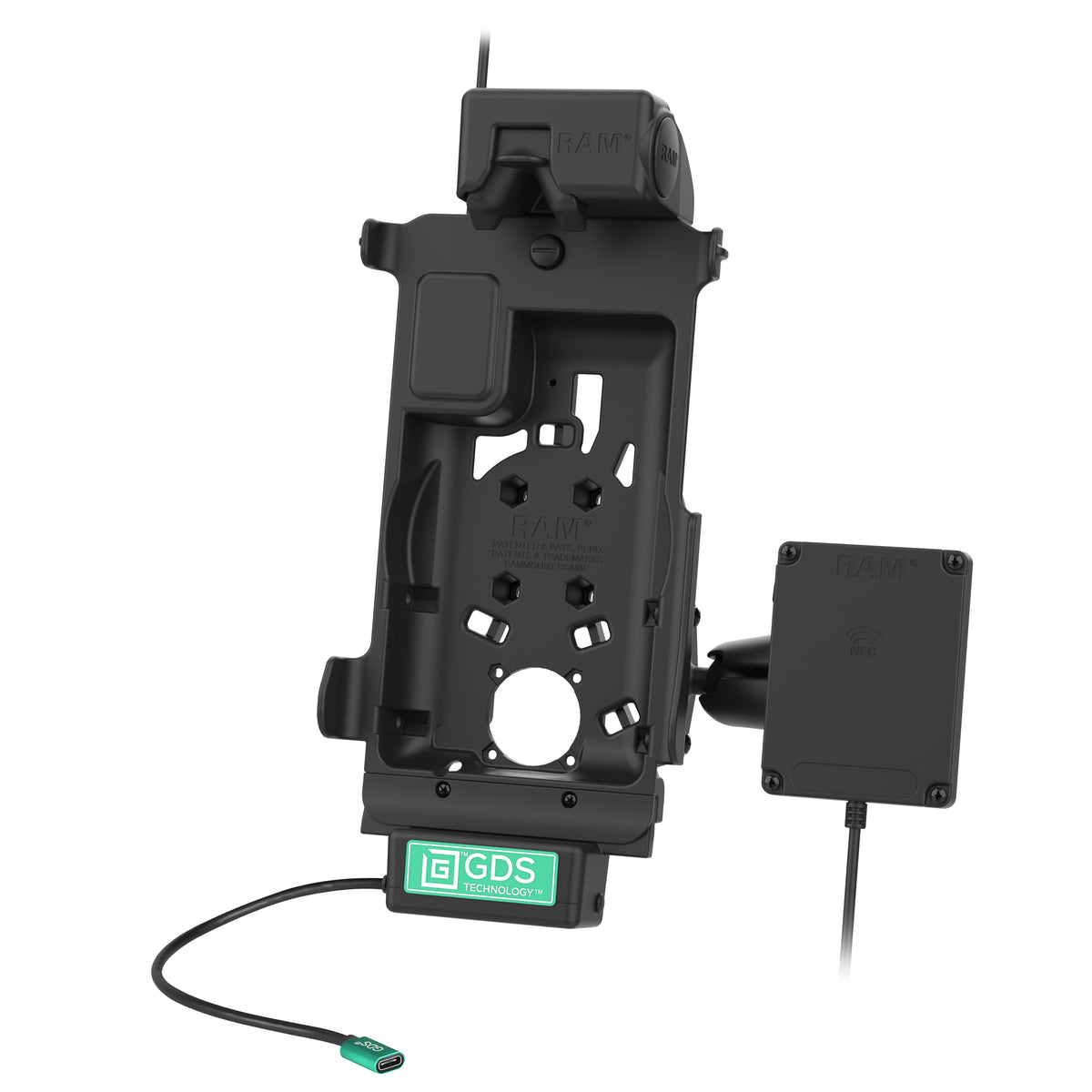

• Spring-loaded GDS dock – holds the Samsung Tab Active5 & 3 in an IntelliSkin Next Gen sleeve; not compatible with the GDS Hand-Stand
• High-speed charging – pogo-pin contacts, USB-C input in the docking cup; output 5–20 V DC / 3 A / 60 W

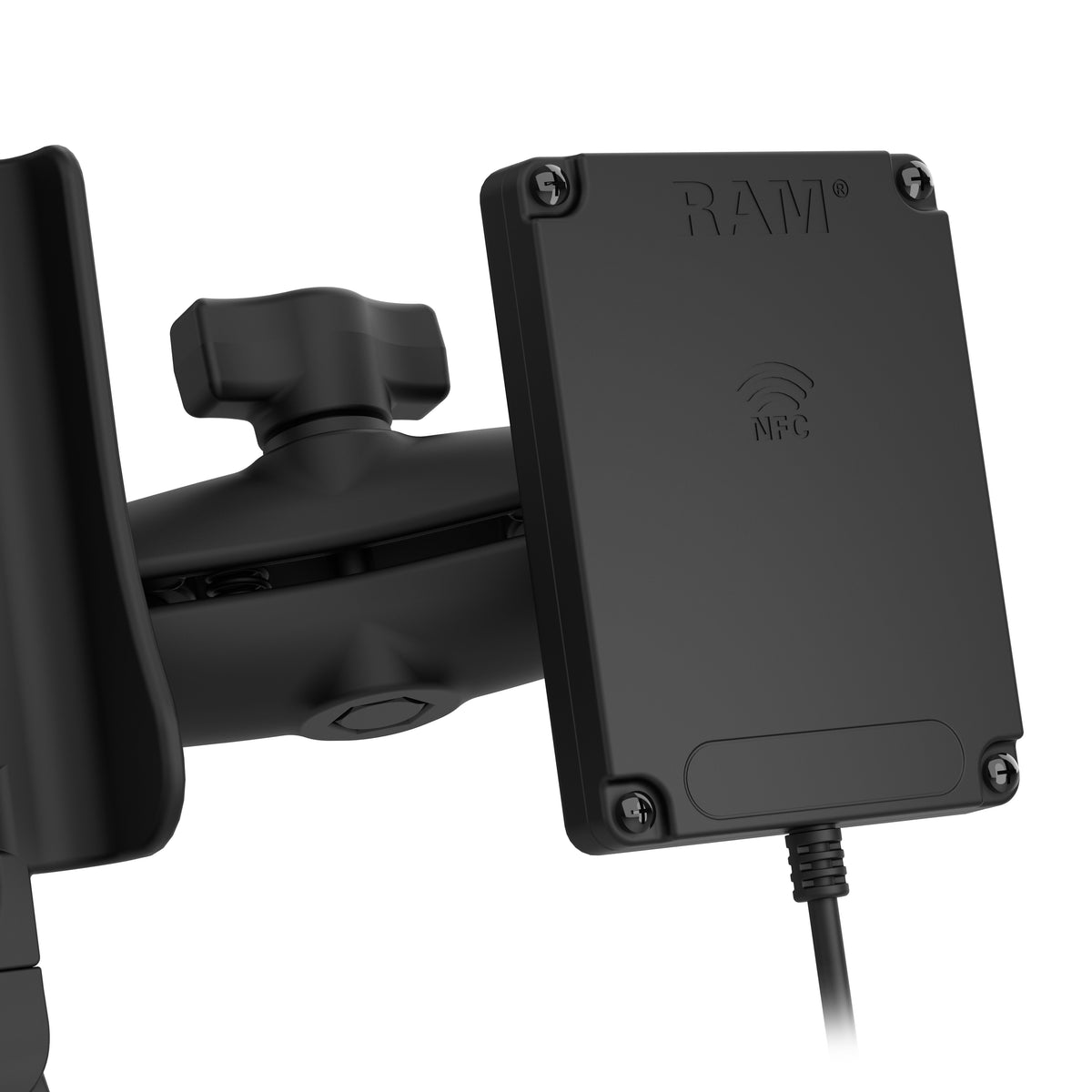

• RAM NFC Extender – relays the tablet's NFC reader for tap-to-pay, asset tracking and time & attendance; NFC not supported on Tab Active2

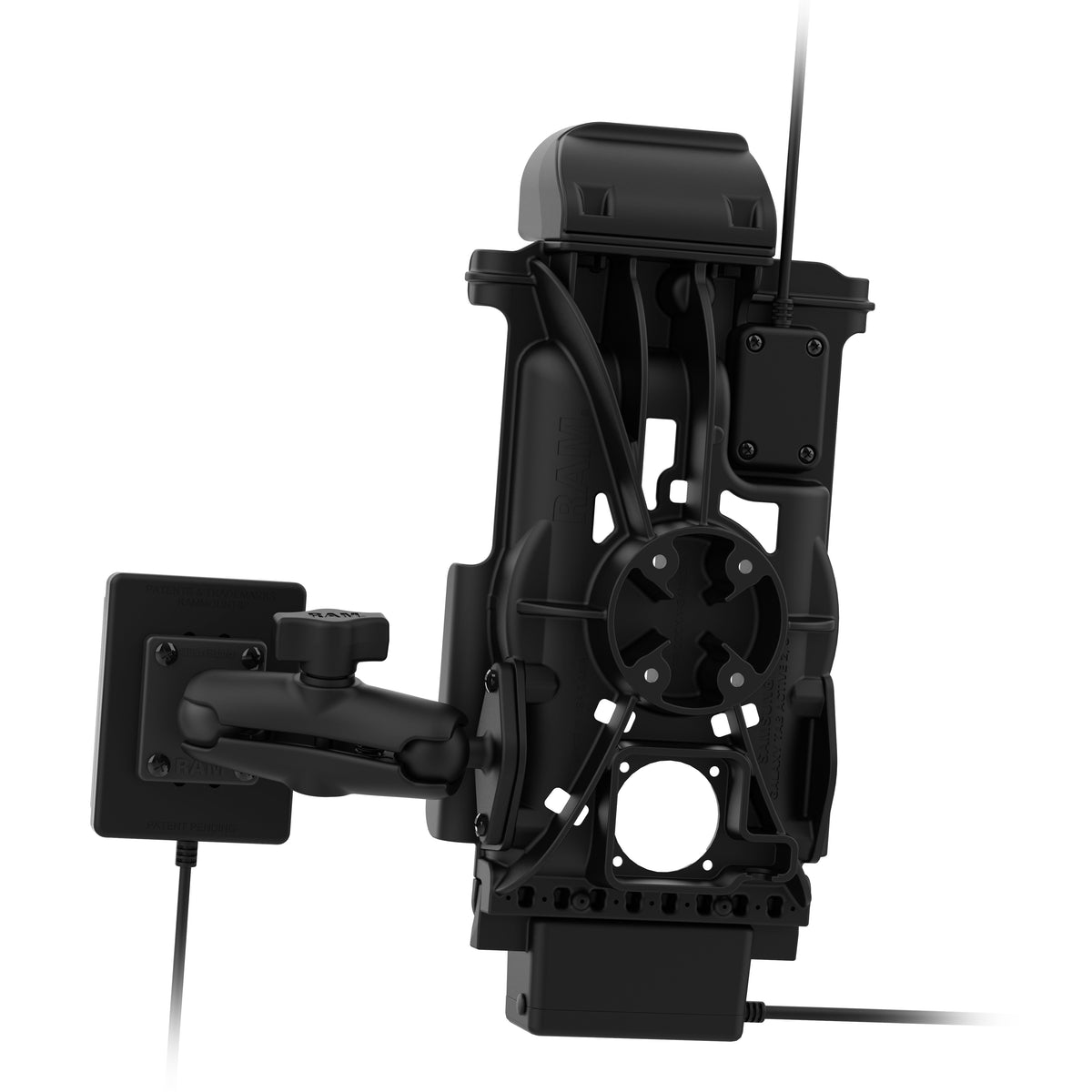

• 4-hole AMPS pattern – 30 × 38 mm (1.181" × 1.496"); connects to RAM ball-and-socket mounts via a 4-hole AMPS ball adapter
• Built to last – high-strength composite and marine-grade aluminium, 3-year RAM warranty

Compatibility

• Samsung Galaxy Tab Active5 – in IntelliSkin Next Gen sleeve
• Samsung Galaxy Tab Active3 – in IntelliSkin Next Gen sleeve
• RAM ball-and-socket systems via a 4-hole AMPS ball adapter (30 × 38 mm)

Technical Specifications

More rugged devices for field and fleet work are available in our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
