RAM Mounts GDS Cool-Dock with Fan, USB-C 3.1 for Samsung Tab Active5 & 3 (RAM-GDS-DOCKF-SAM62CU)

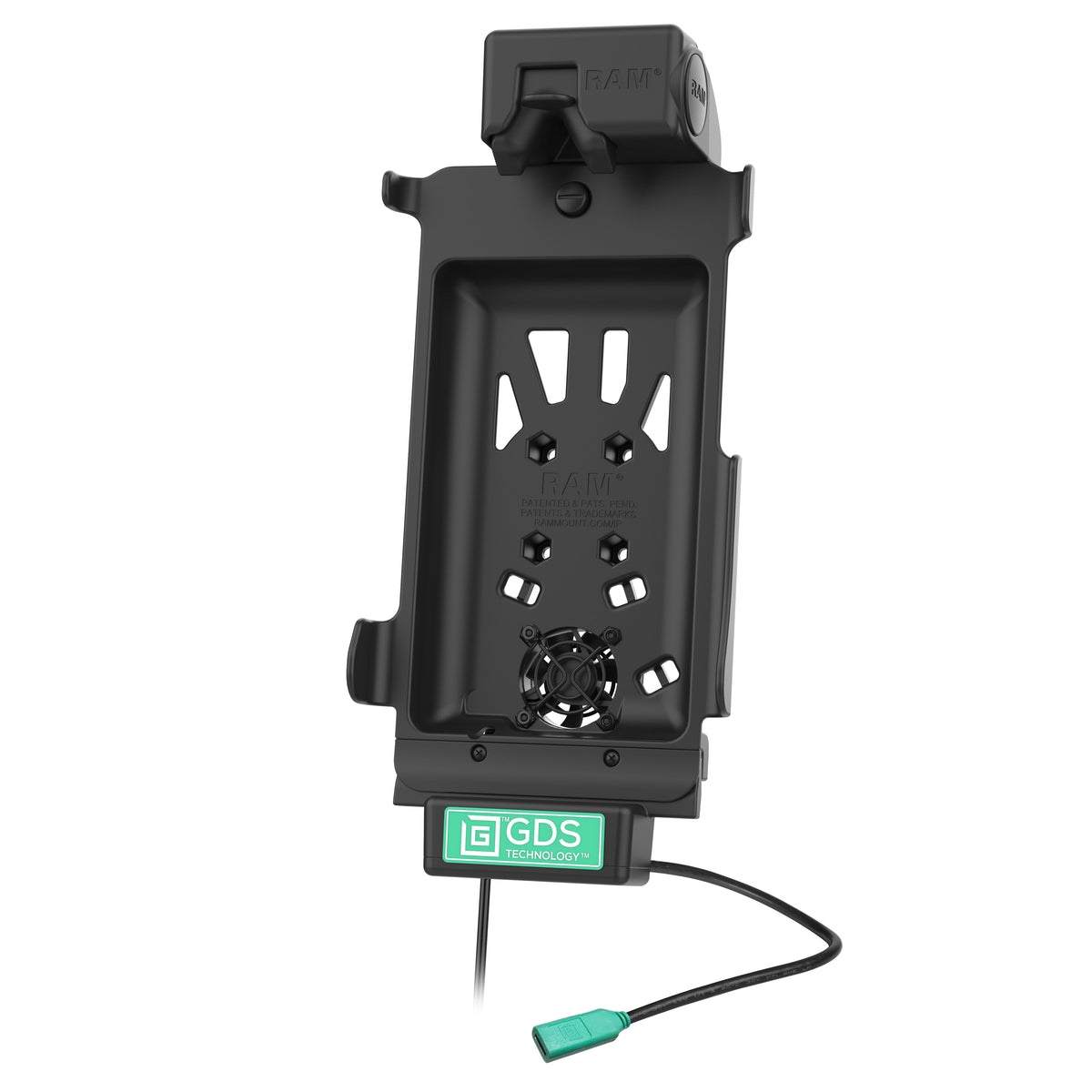

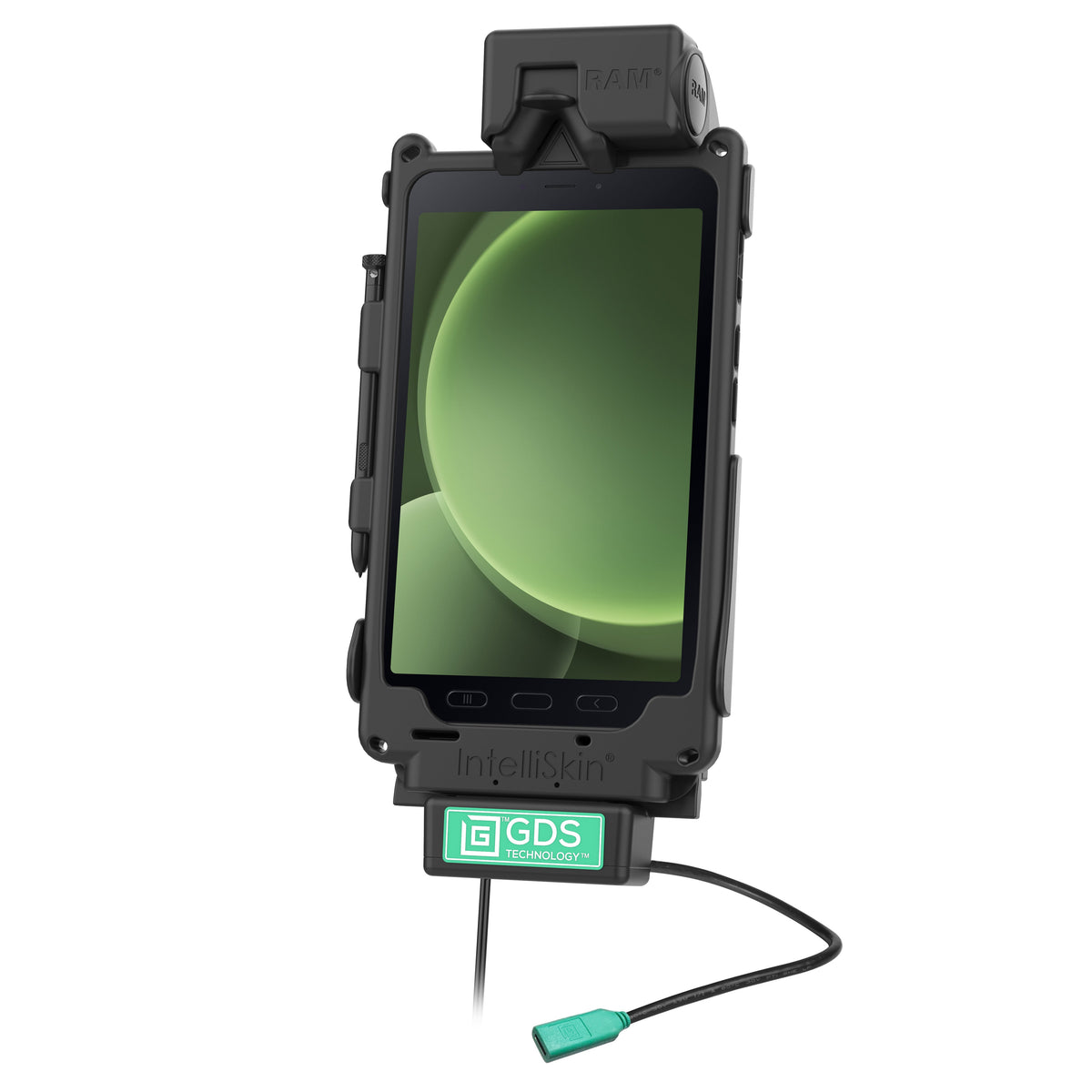

RAM Mounts GDS Cool-Dock with Fan, USB-C 3.1 for Samsung Tab Active5 & 3 (RAM-GDS-DOCKF-SAM62CU) is a GDS Cool-Dock: a spring-loaded Tough-Dock vehicle dock upgraded with a built-in 12 V DC axial cooling fan, made for the Samsung Galaxy Tab Active5, Tab Active3 and Tab Active2 in an IntelliSkin Next Gen protective sleeve. Integrated pogo-pin contacts charge the tablet and sync data at up to 5 Gbps over USB-C 3.1 as soon as it is docked. The fan is wired via a 2.2 m hardwire cable with SAE quick disconnect and draws heat away from the tablet in hot cabs.

Key Features

• Spring-loaded GDS dock – holds the Samsung Tab Active5 & 3 in an IntelliSkin Next Gen sleeve; works with the GDS Hand-Stand hand strap and kickstand

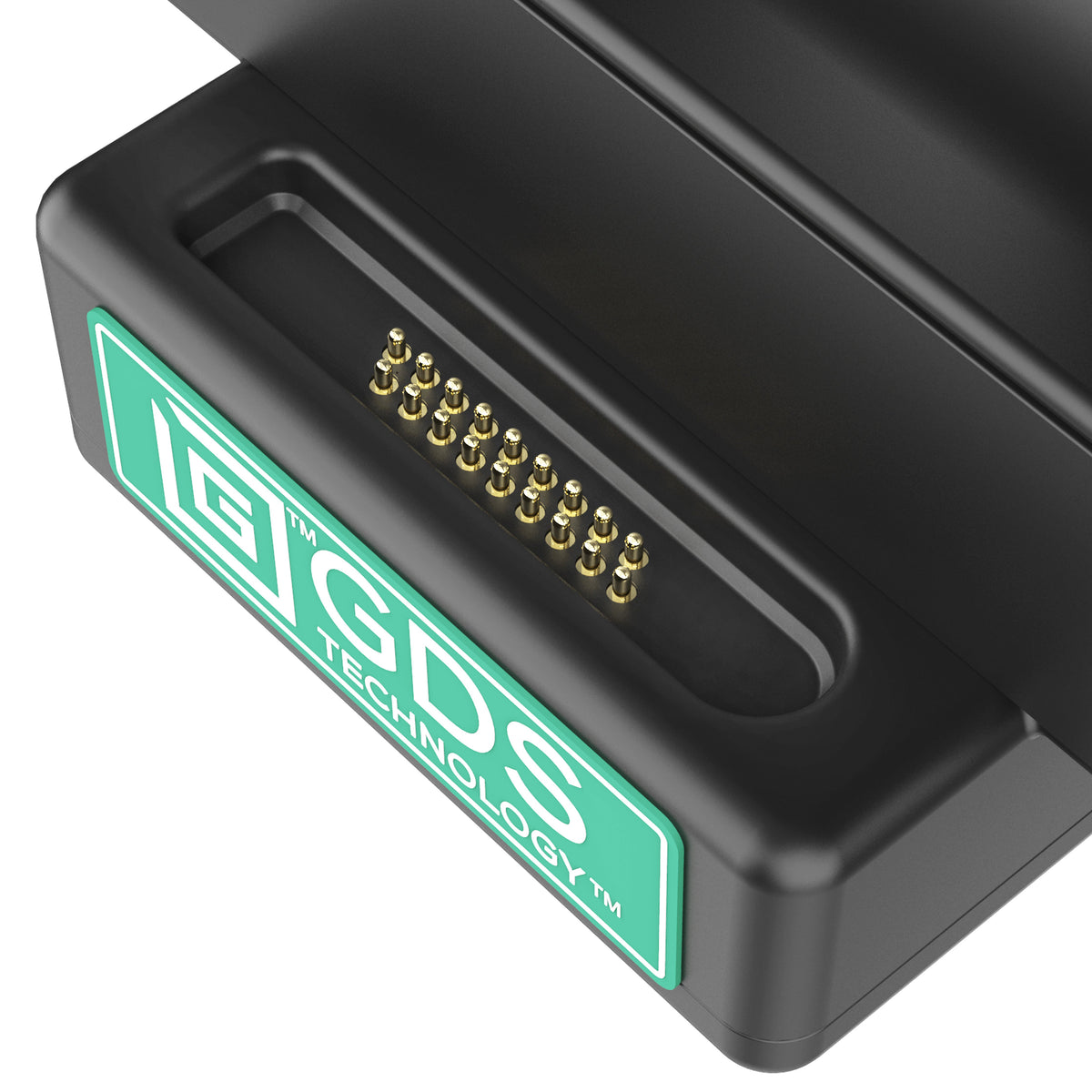

• USB-C 3.1 charging & data – data sync at up to 5 Gbps via the pogo contacts; output 5–20 V DC / 3 A / 60 W

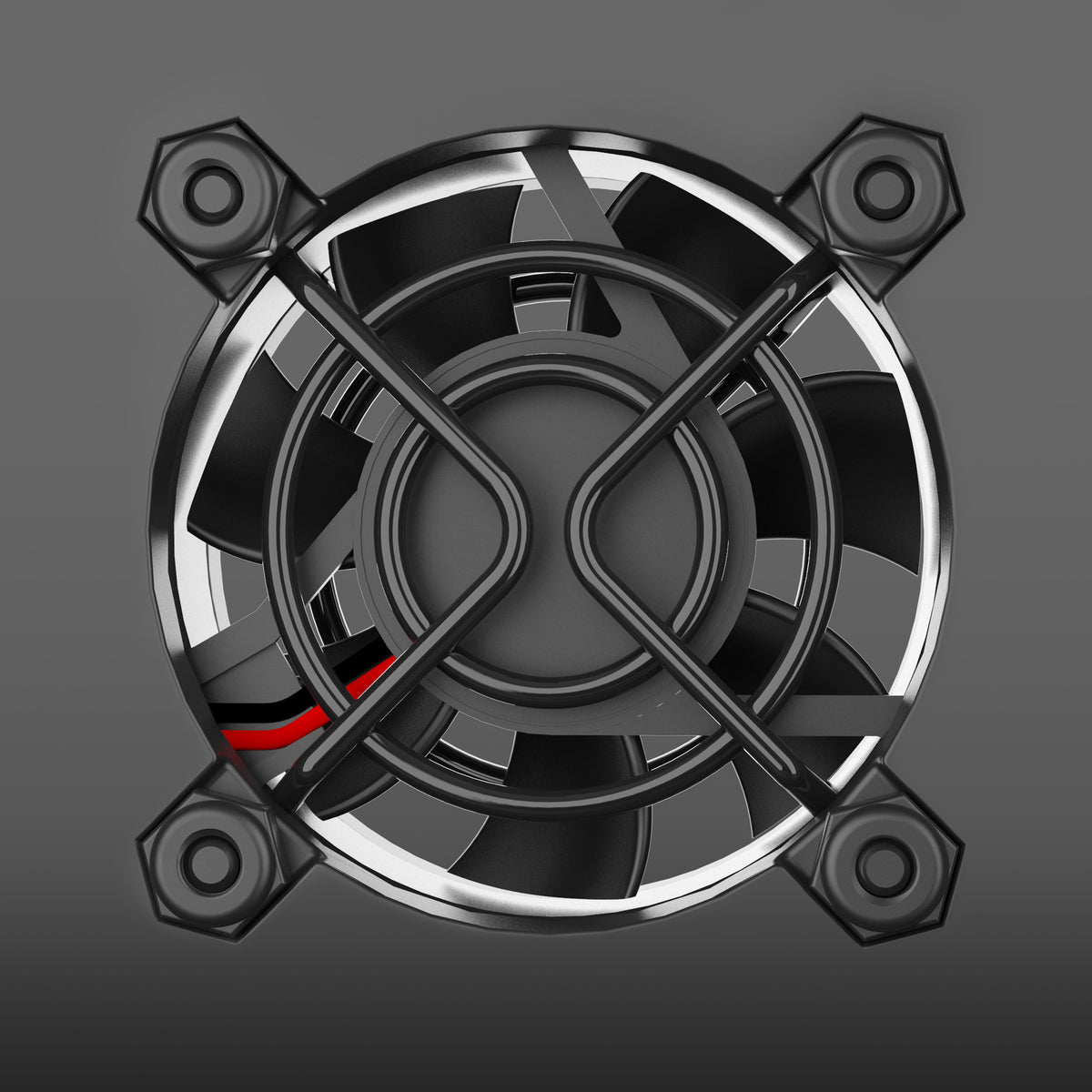

• Built-in cooling fan – 12 V DC axial fan with 2.2 m hardwire cable and SAE quick disconnect

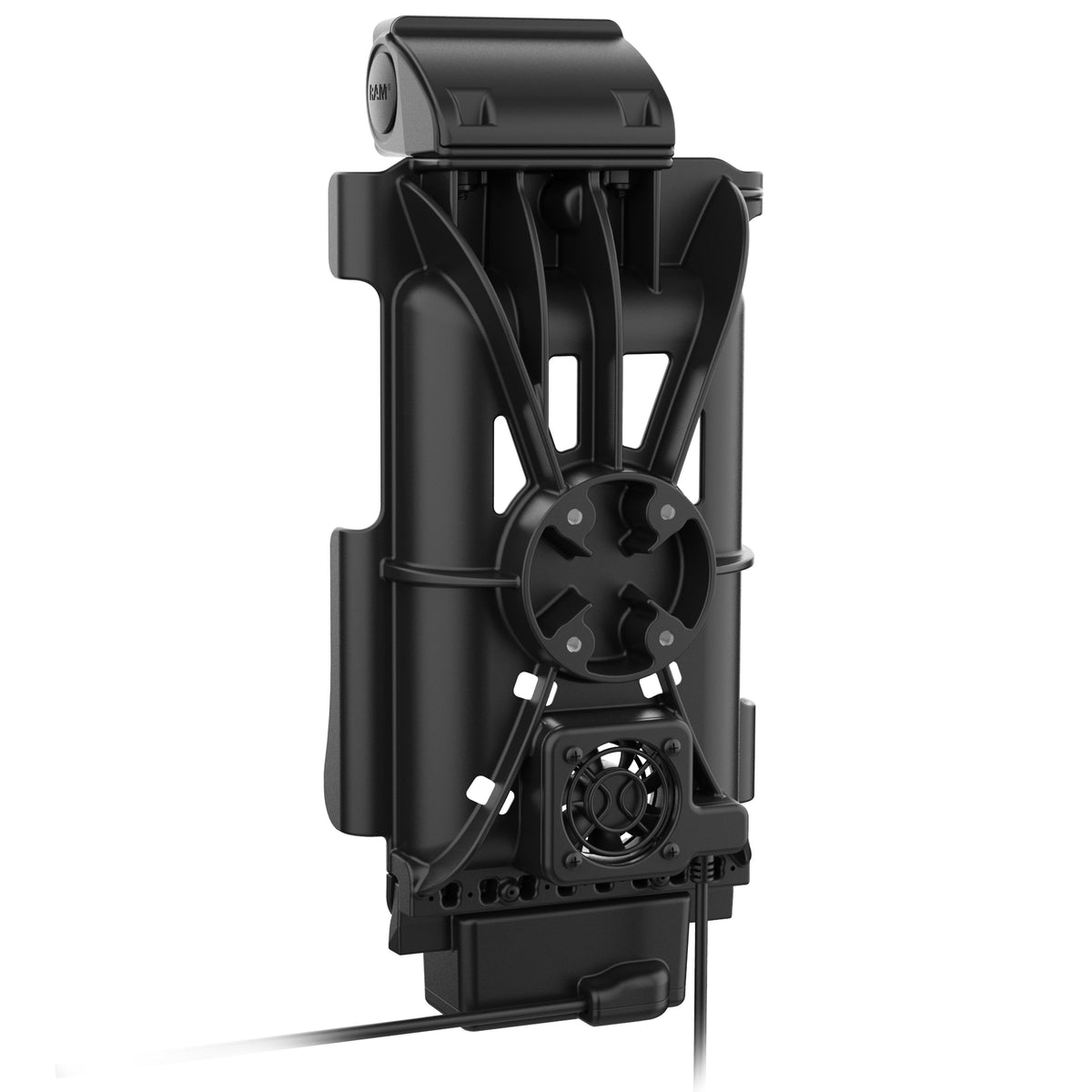

• 4-hole AMPS pattern – 30 × 38 mm (1.181" × 1.496"); connects to RAM ball-and-socket mounts via a 4-hole AMPS ball adapter
• Built to last – high-strength composite, 3-year RAM warranty

Compatibility

• Samsung Galaxy Tab Active5 – in IntelliSkin Next Gen sleeve
• Samsung Galaxy Tab Active3 – in IntelliSkin Next Gen sleeve
• Samsung Galaxy Tab Active2 – in IntelliSkin Next Gen sleeve
• RAM ball-and-socket systems via a 4-hole AMPS ball adapter (30 × 38 mm)

Technical Specifications

More rugged devices for field and fleet work are available in our Tablet Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
